Vehicle Stability Control System

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT:
- If a trouble code is output during the DTC check, check the circuit indicated by the DTC. For details of each code, refer to the "See page" for the respective DTC Code in the Diagnostic Trouble Code Chart.
- Inspect the fuses and relays before investigating the trouble areas as shown in the table below.

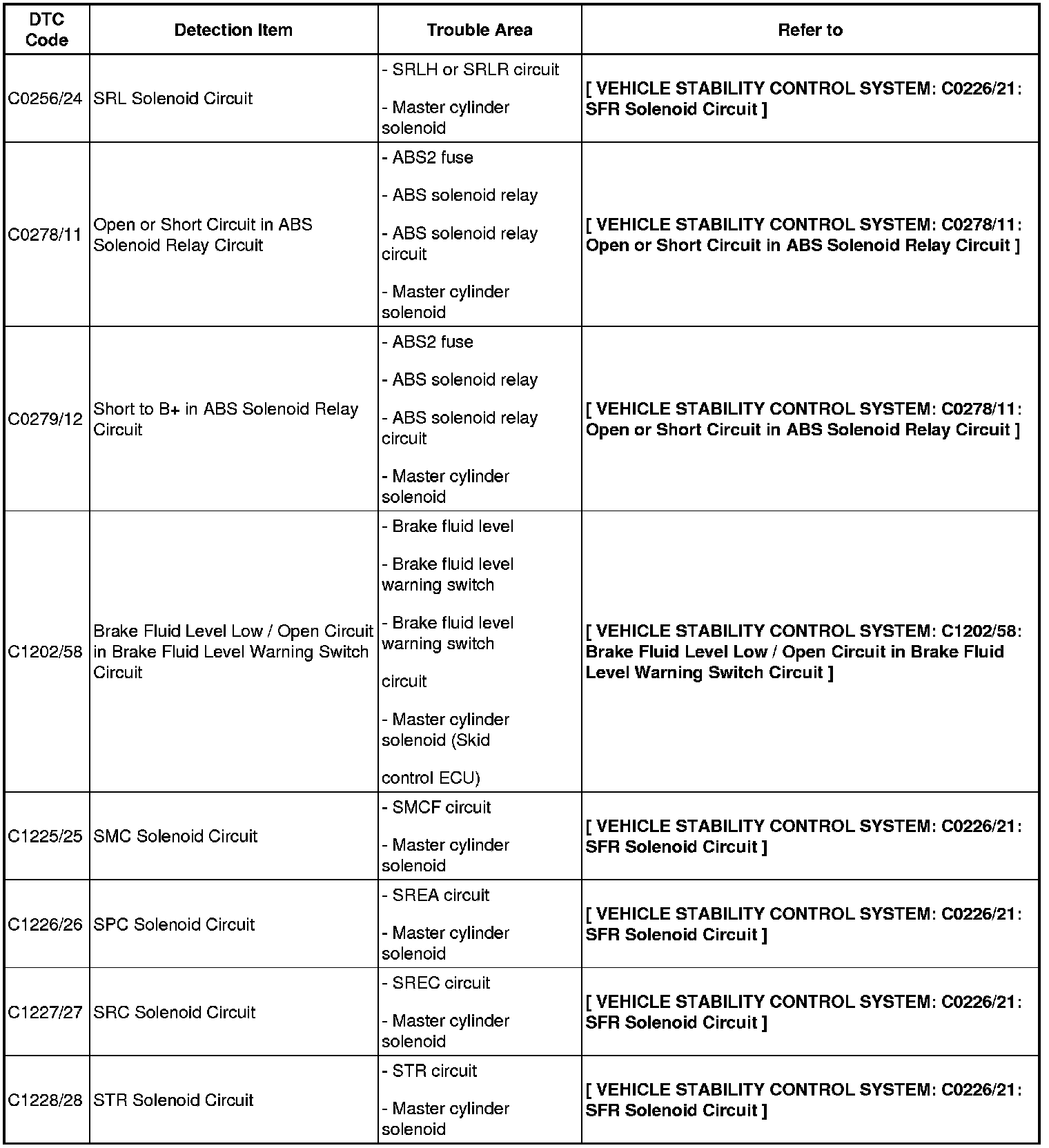

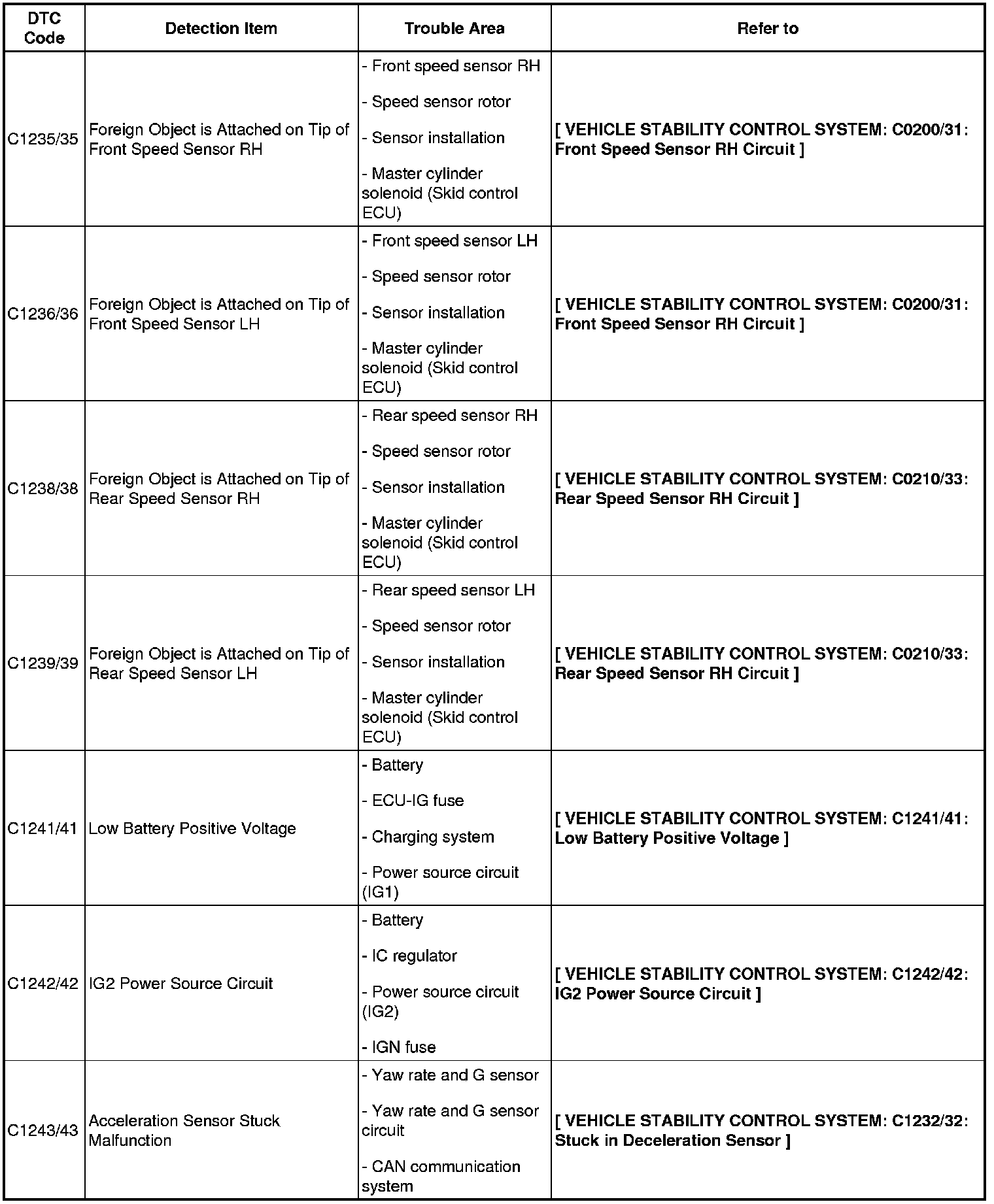

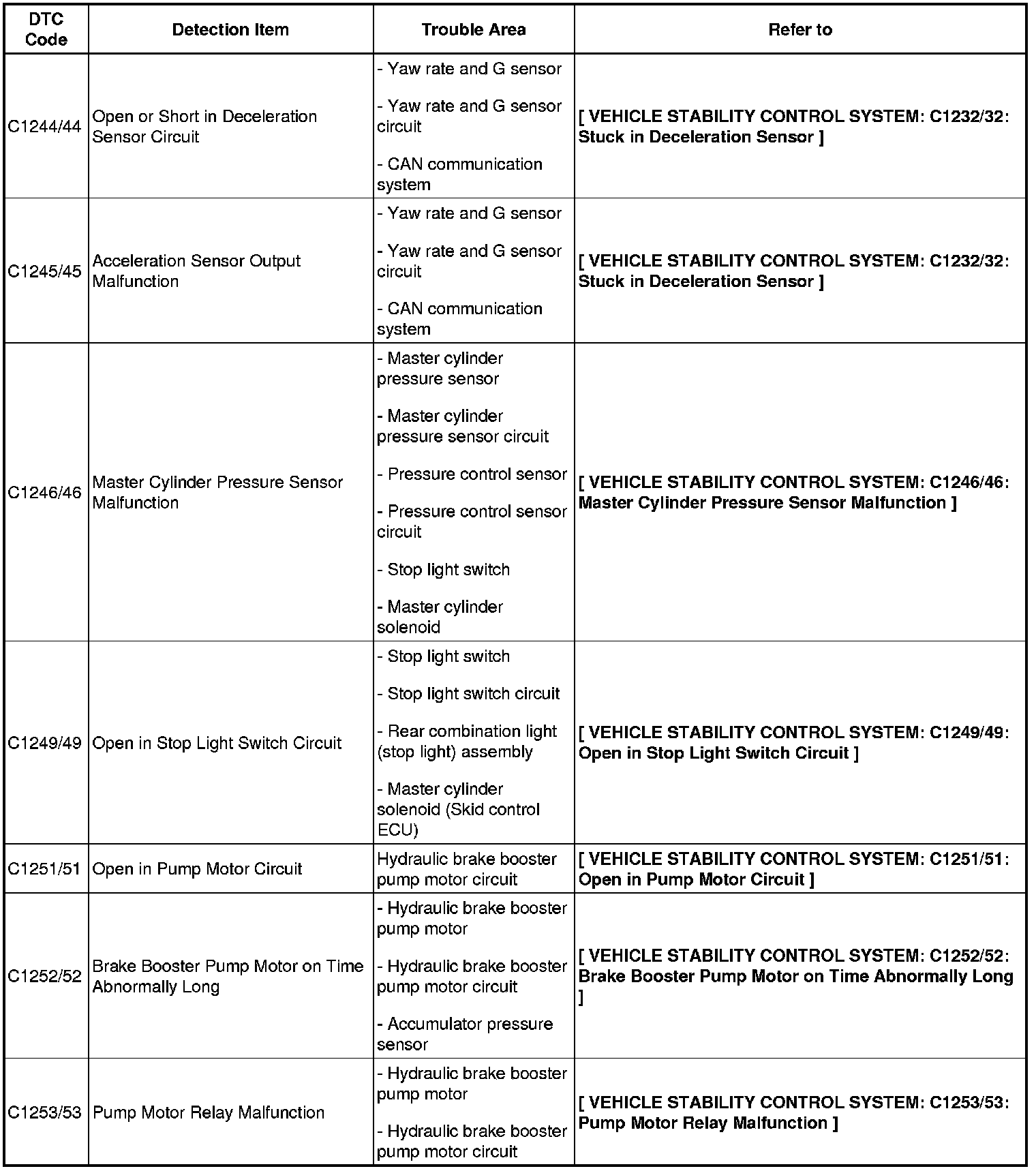

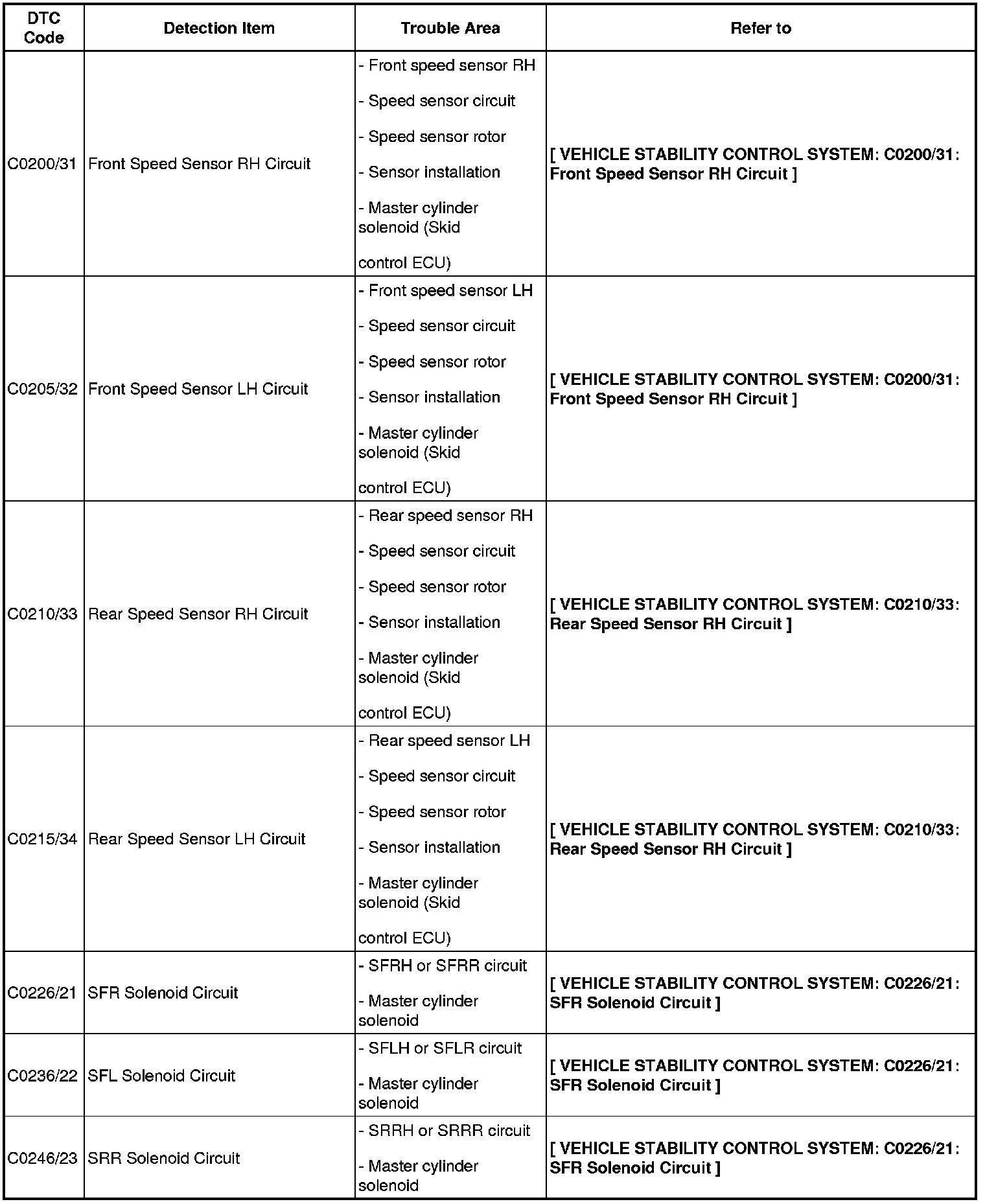

DTC Chart of ABS

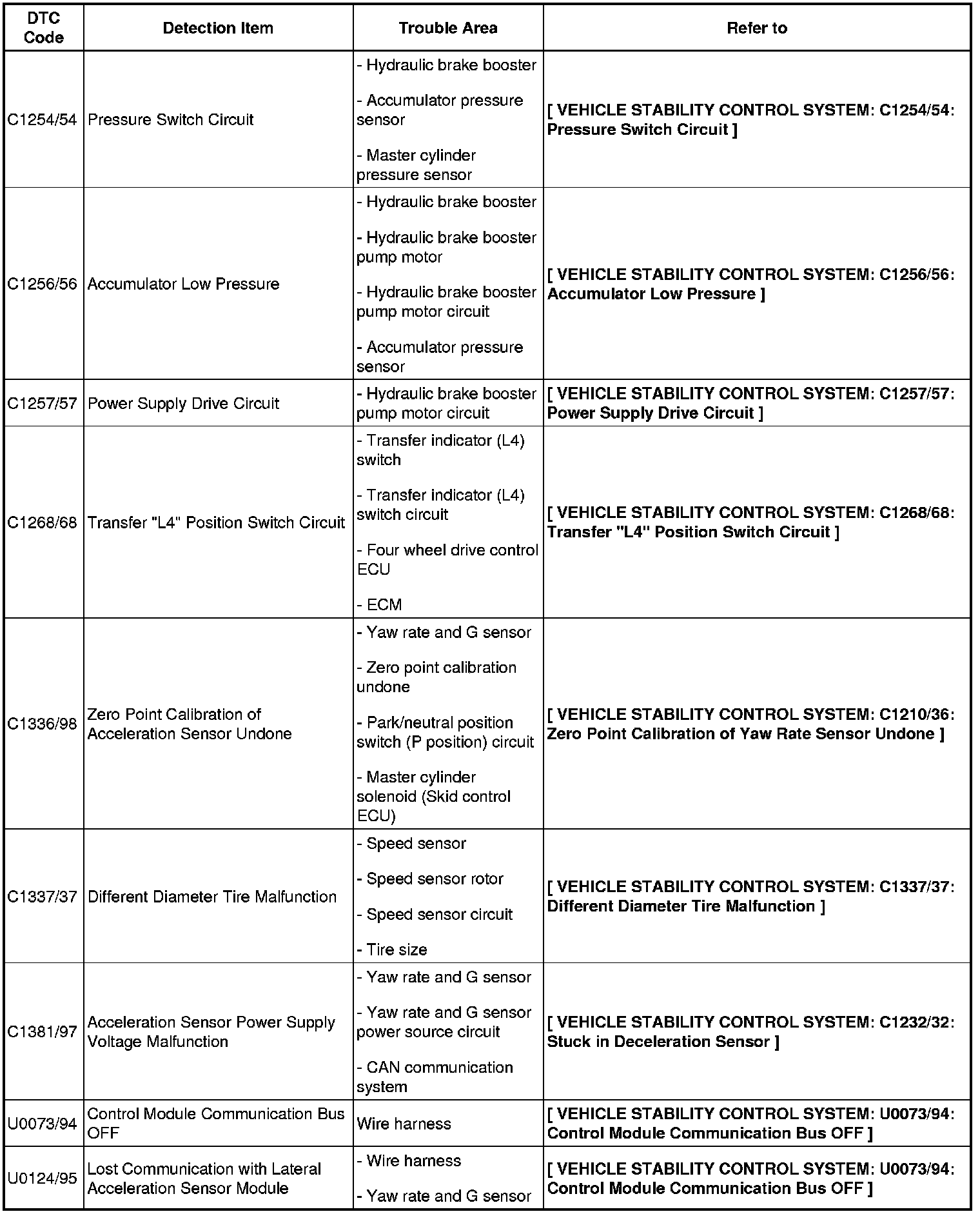

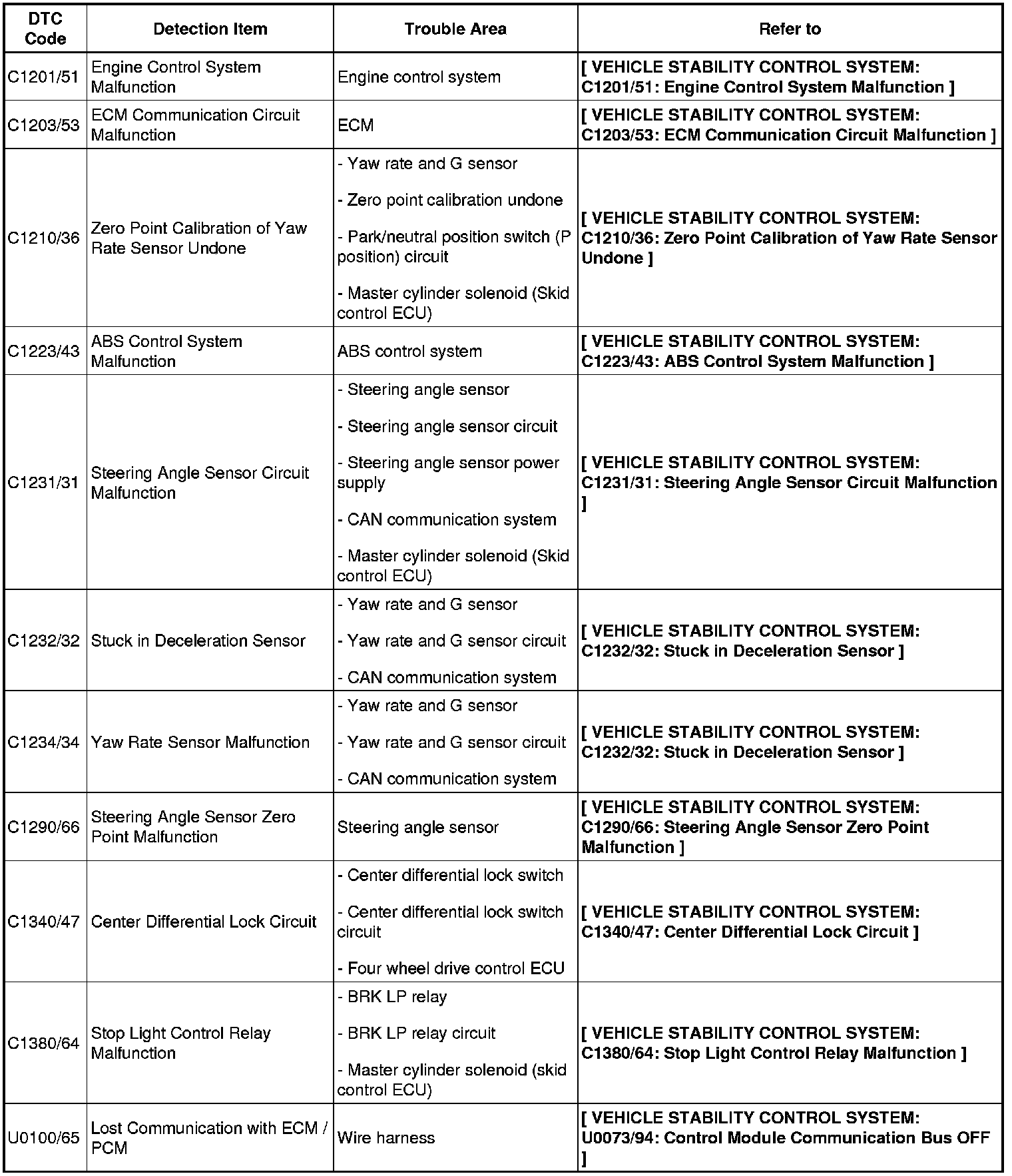

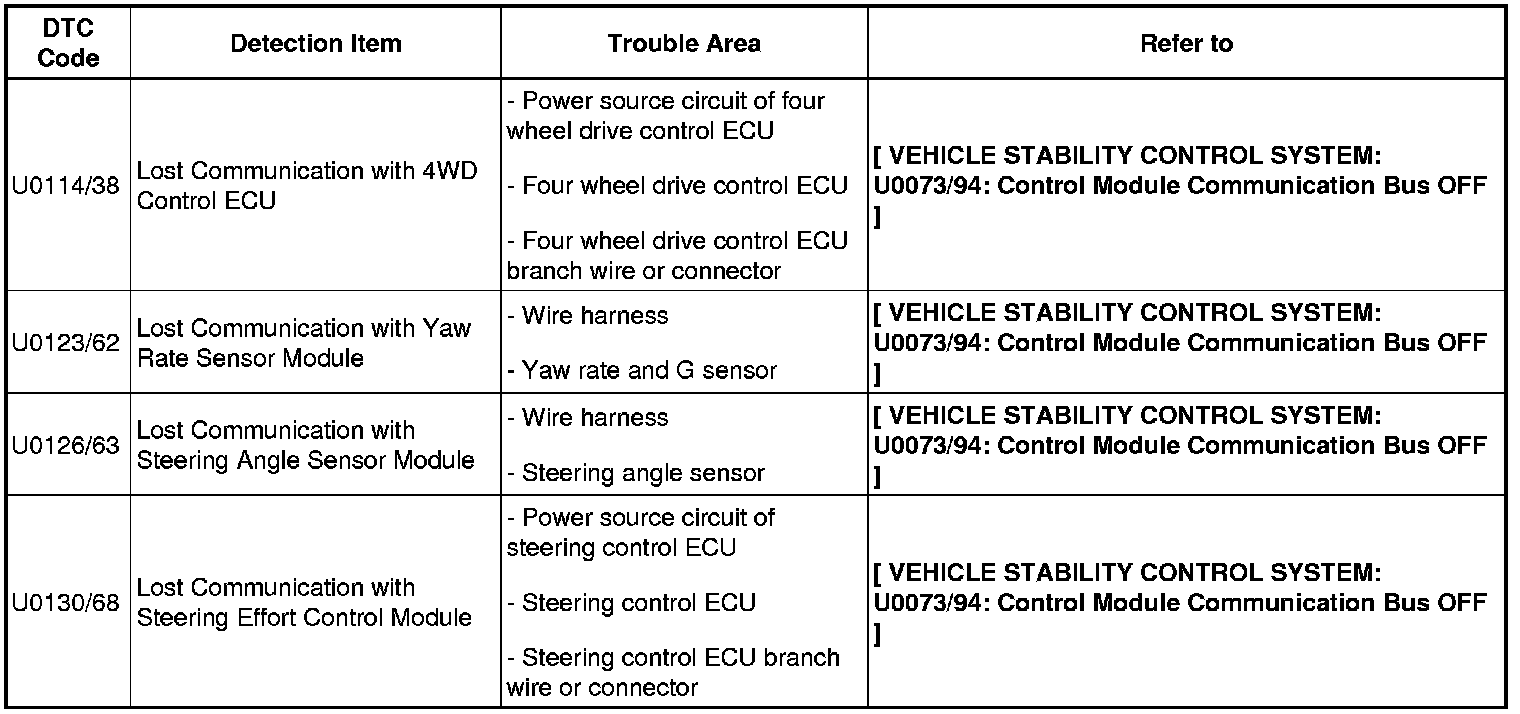

DTC Chart of VSC
