Occupant Classification System

SUPPLEMENTAL RESTRAINT SYSTEMS: OCCUPANT CLASSIFICATION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT:

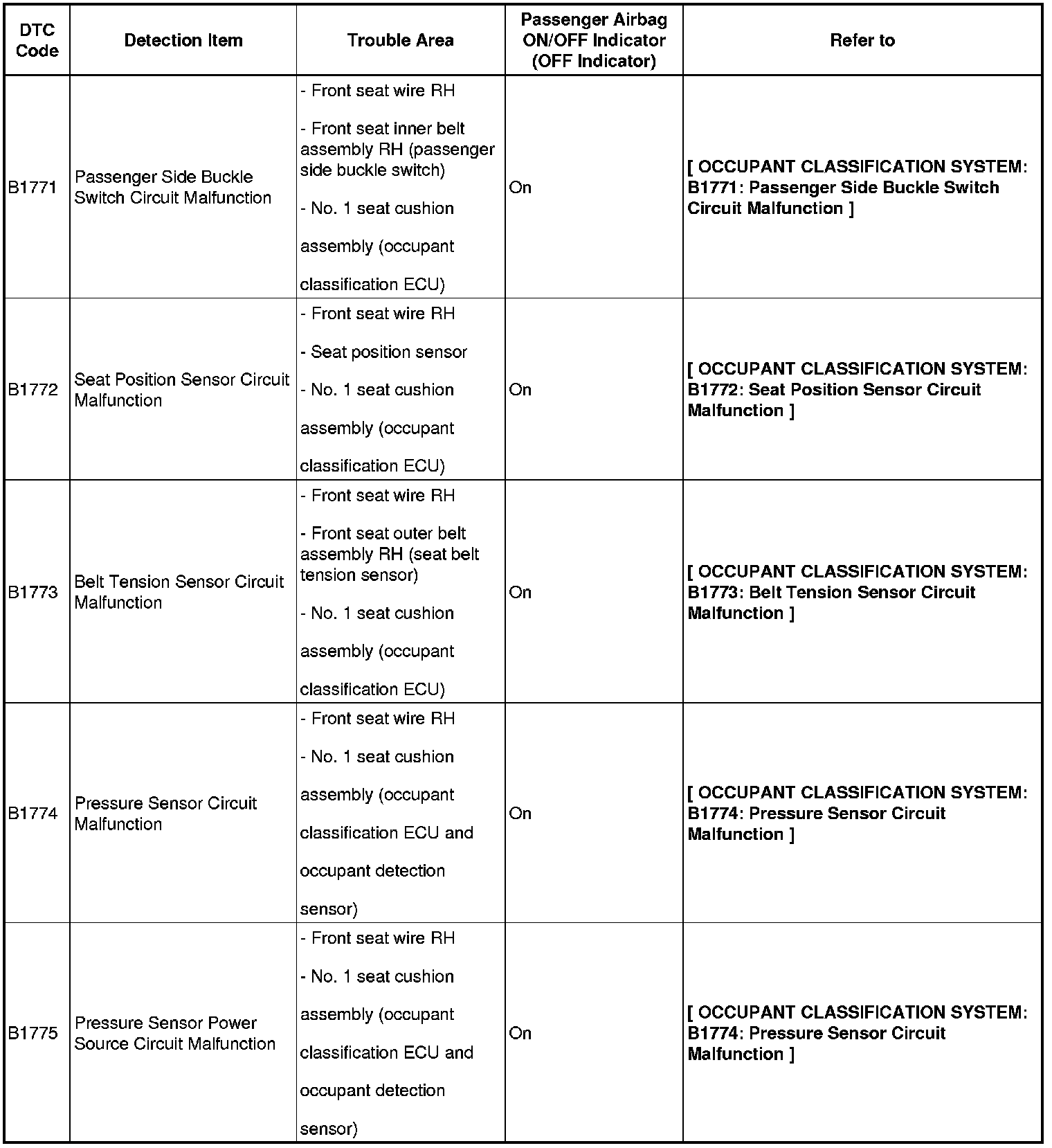

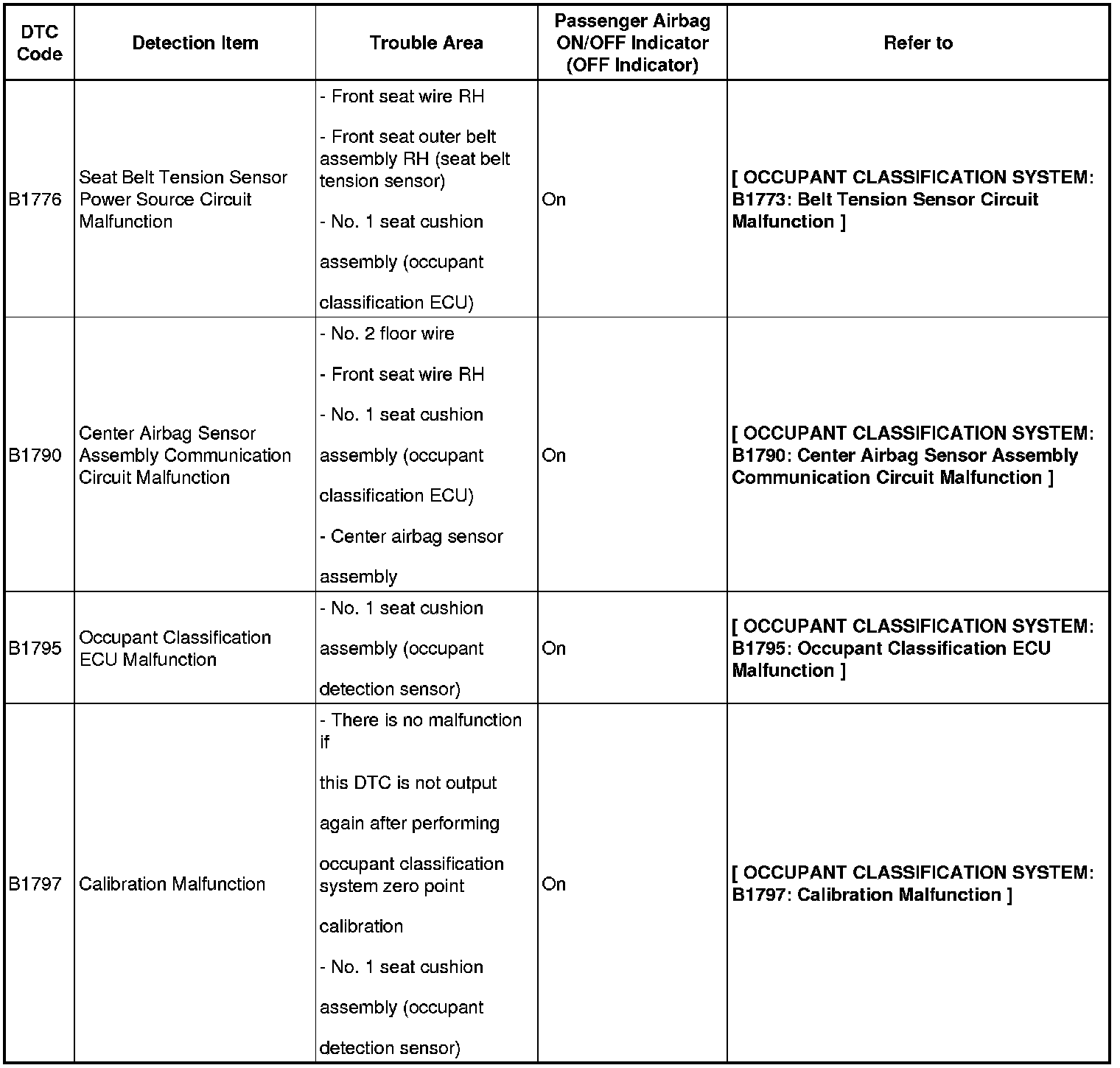

- When DTC B1650/32 is output as a result of troubleshooting for the "Airbag System", perform troubleshooting for the "Occupant Classification System" as shown in the chart below.
- Use the Techstream to read and clear the DTC of the occupant classification ECU, otherwise the DTCs cannot be read and cleared.
