Lexus Link System

CELLULAR COMMUNICATION: LEXUS LINK SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT:
If a trouble code is output during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "See page" below.

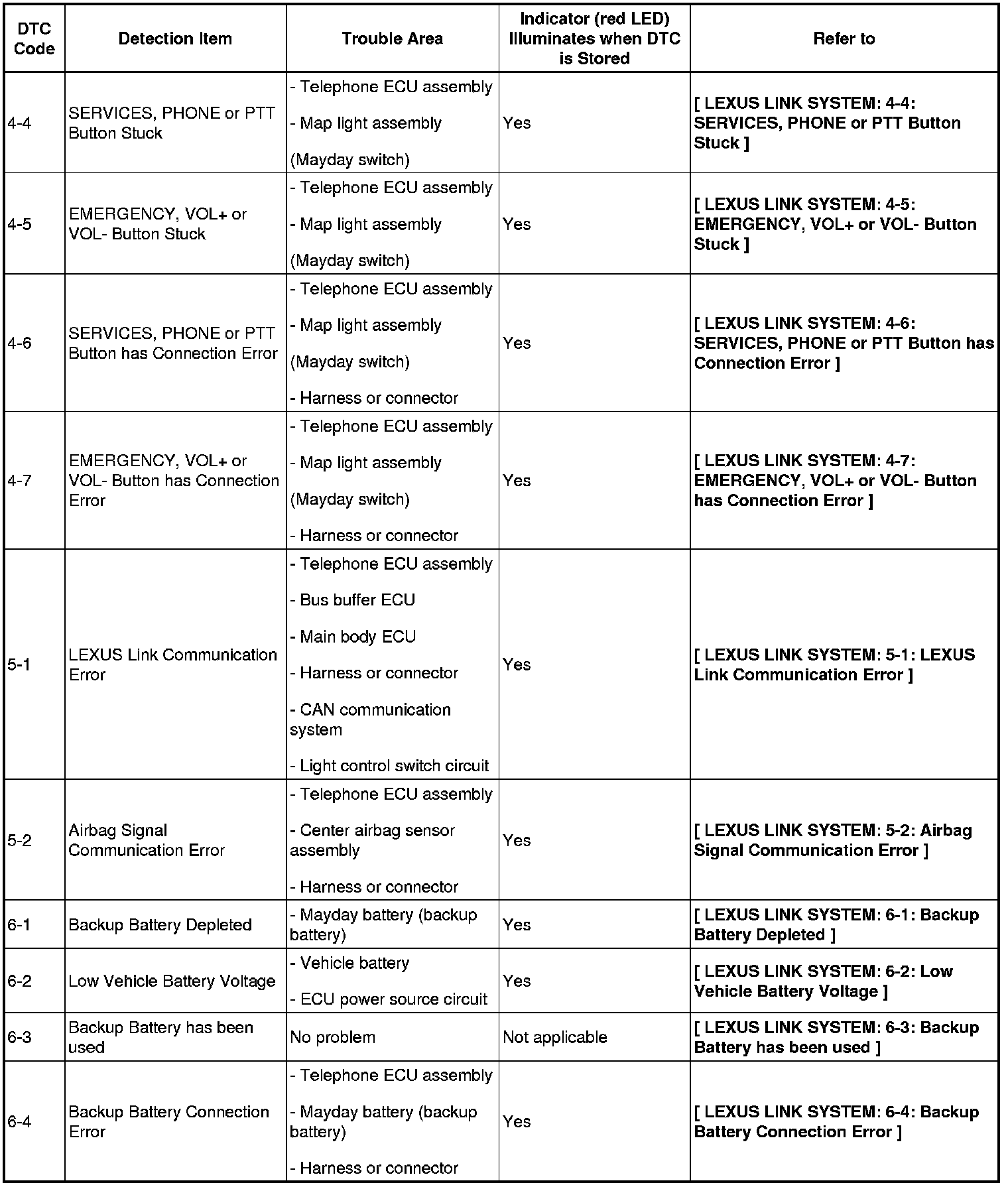

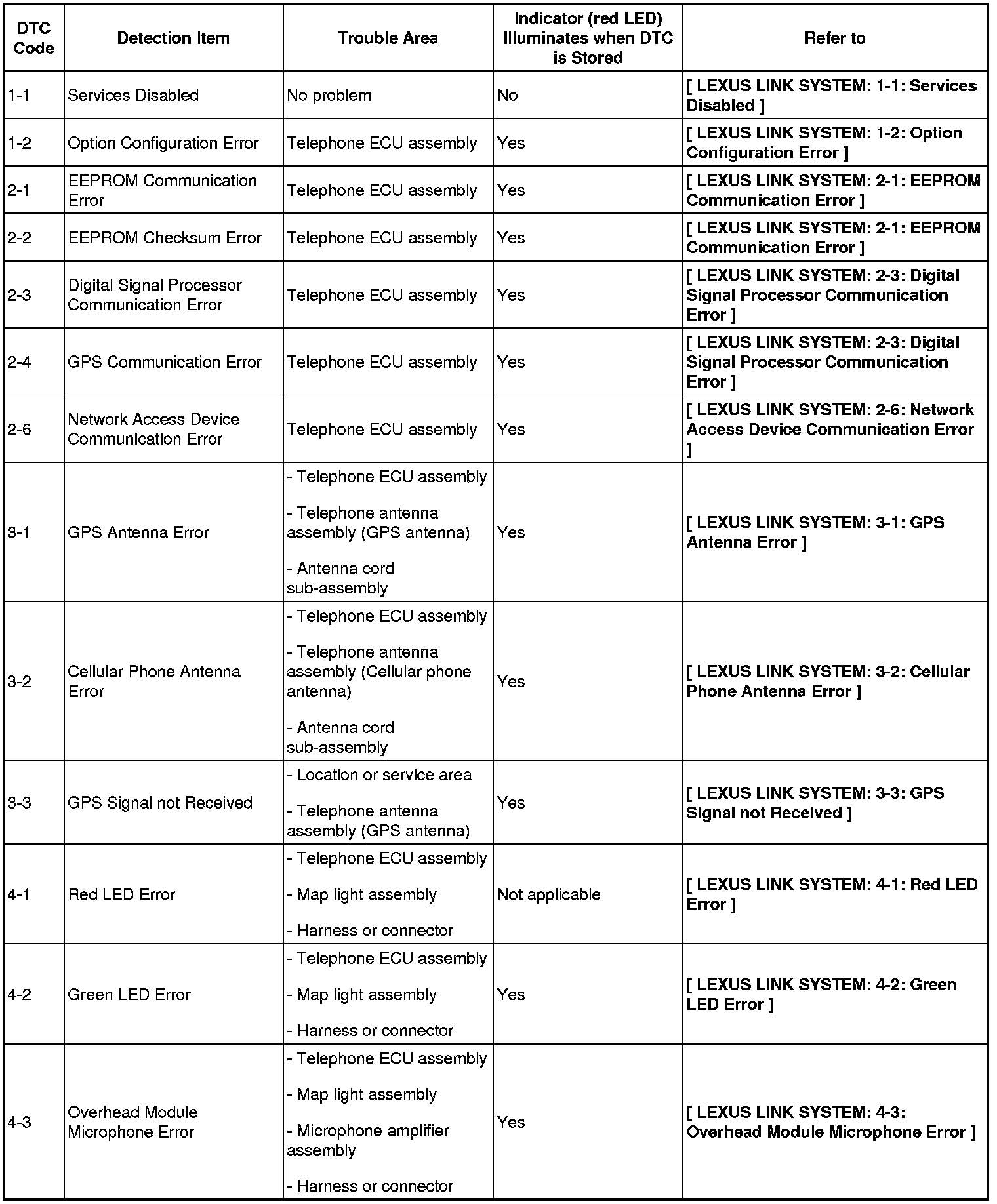

Telephone ECU assembly (Map Light LED Blinking Pattern)

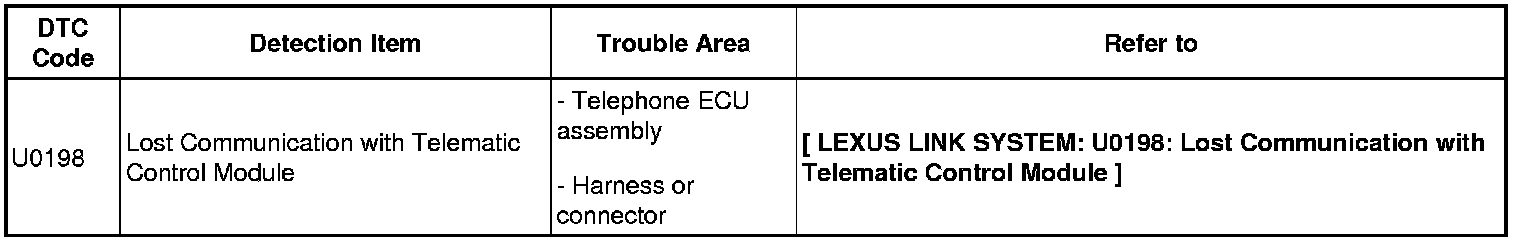

Bus Buffer ECU [Mayday Gateway] (Tester Display)
