Air Conditioning System

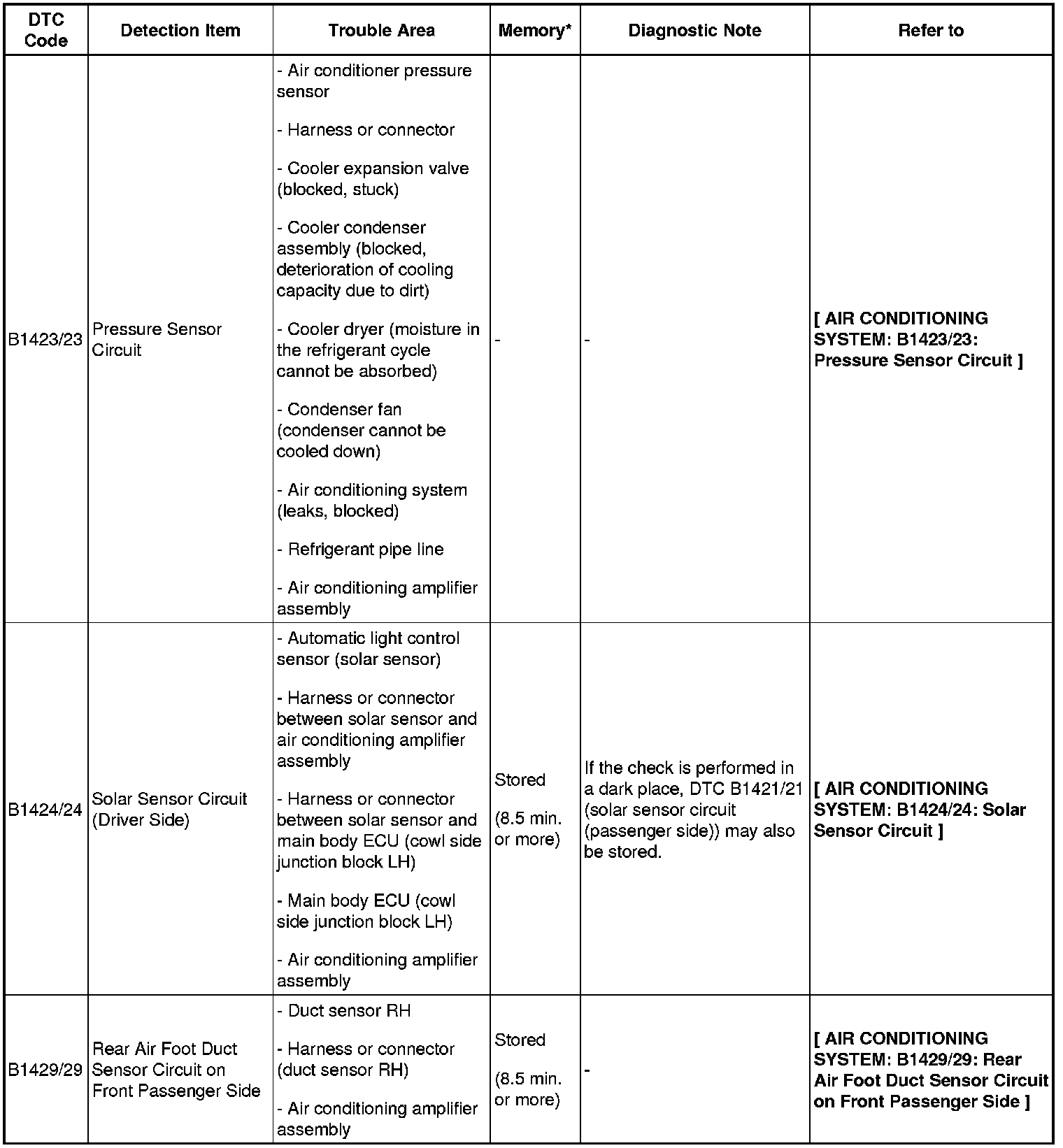

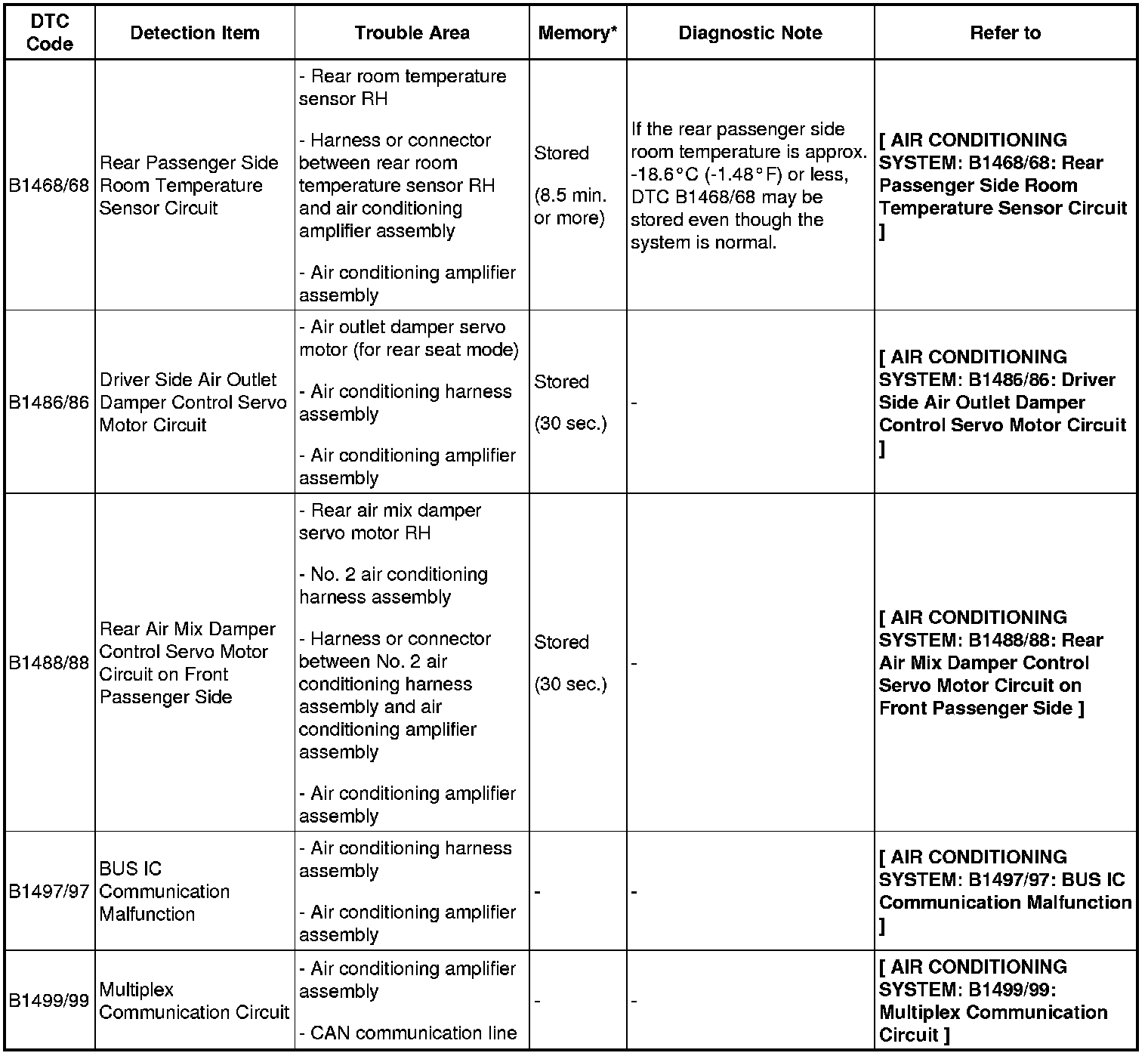

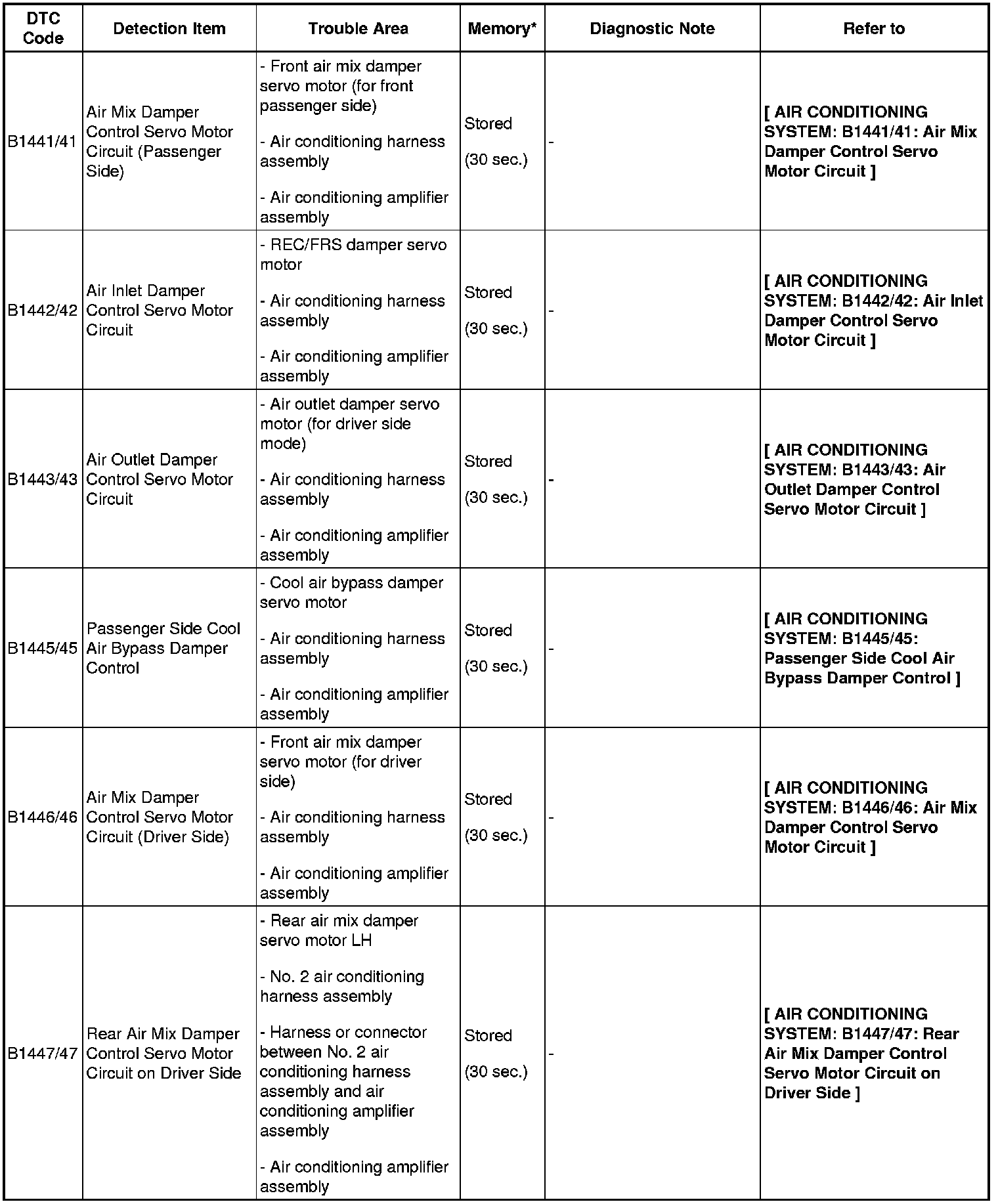

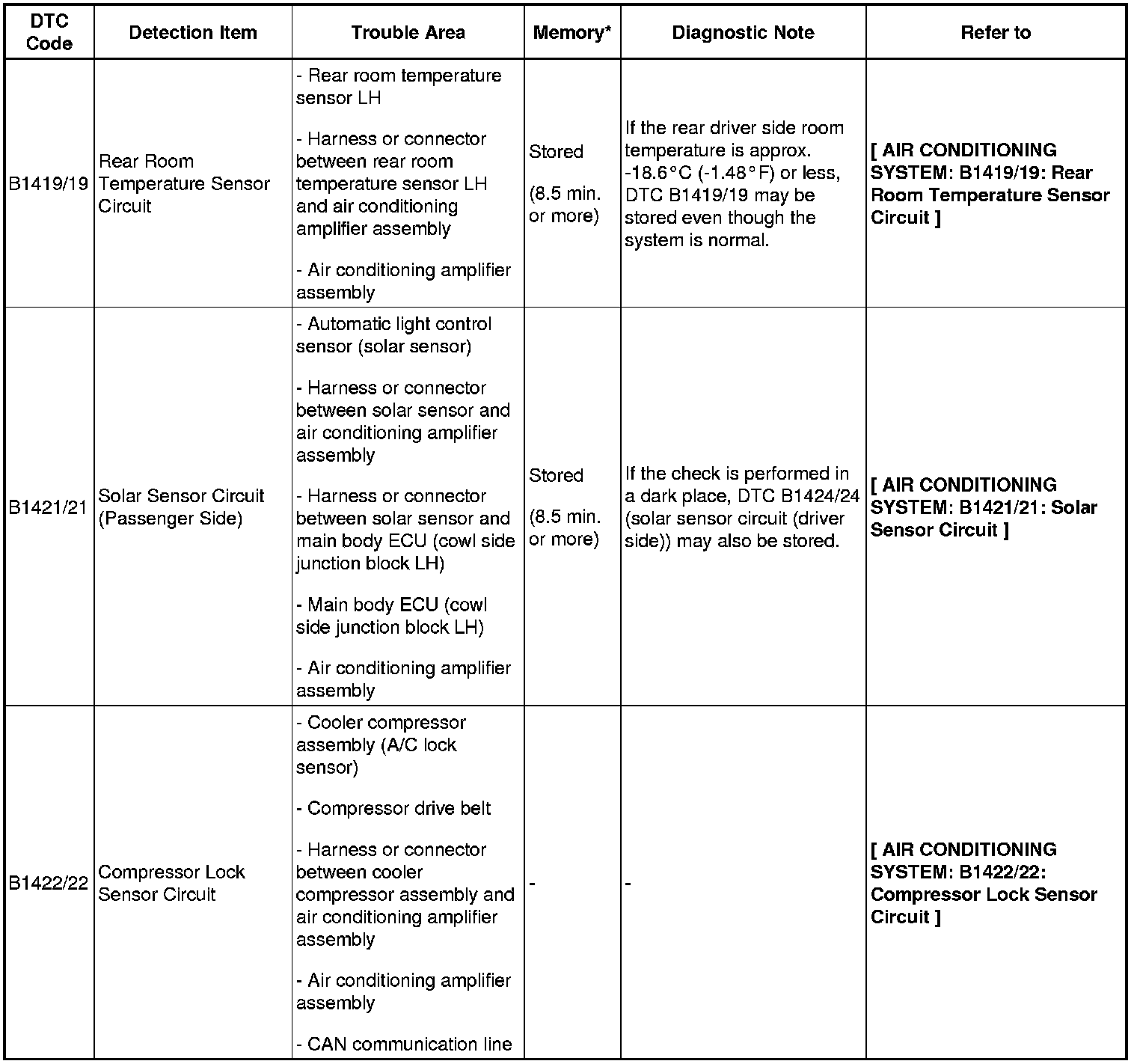

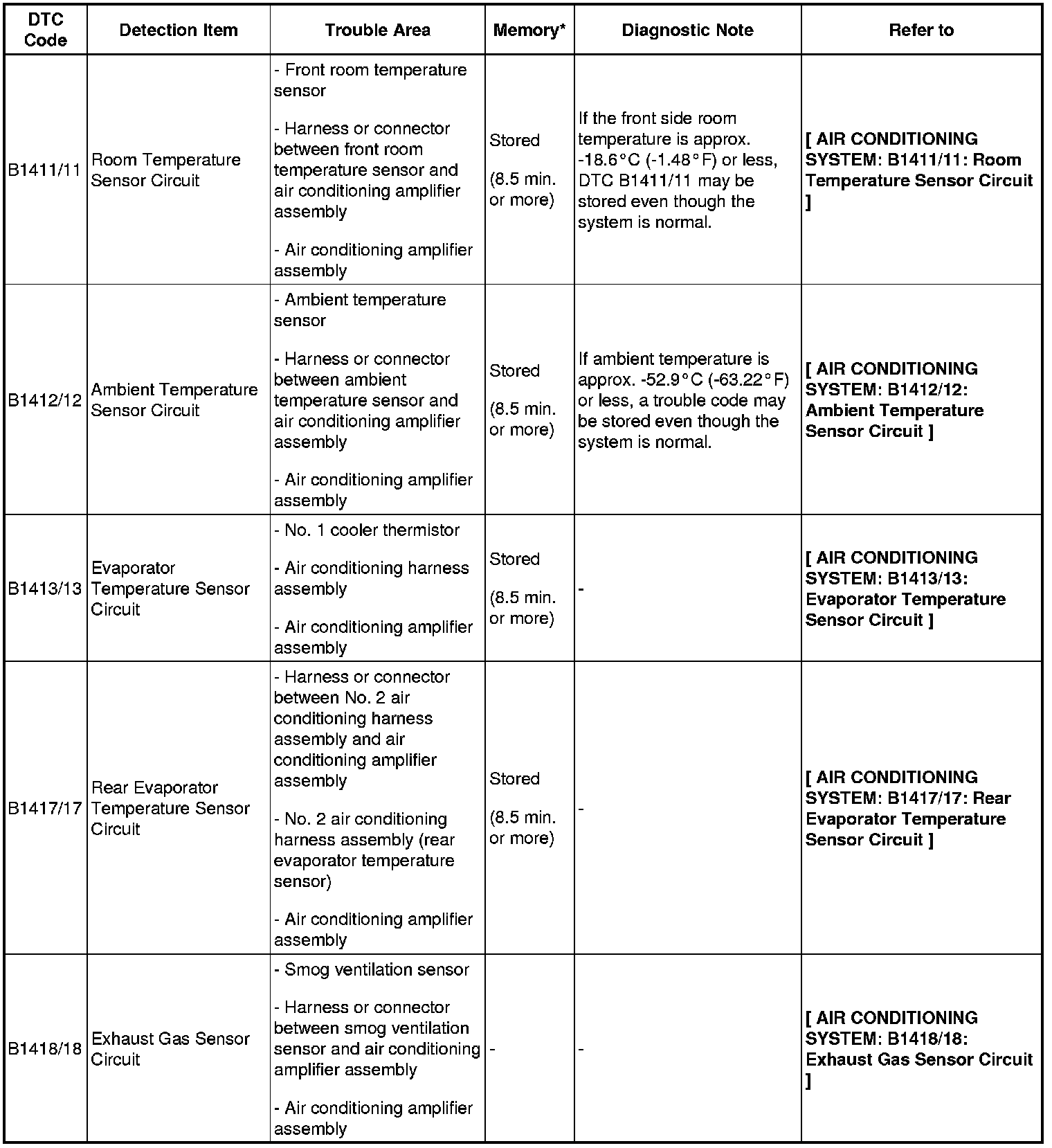

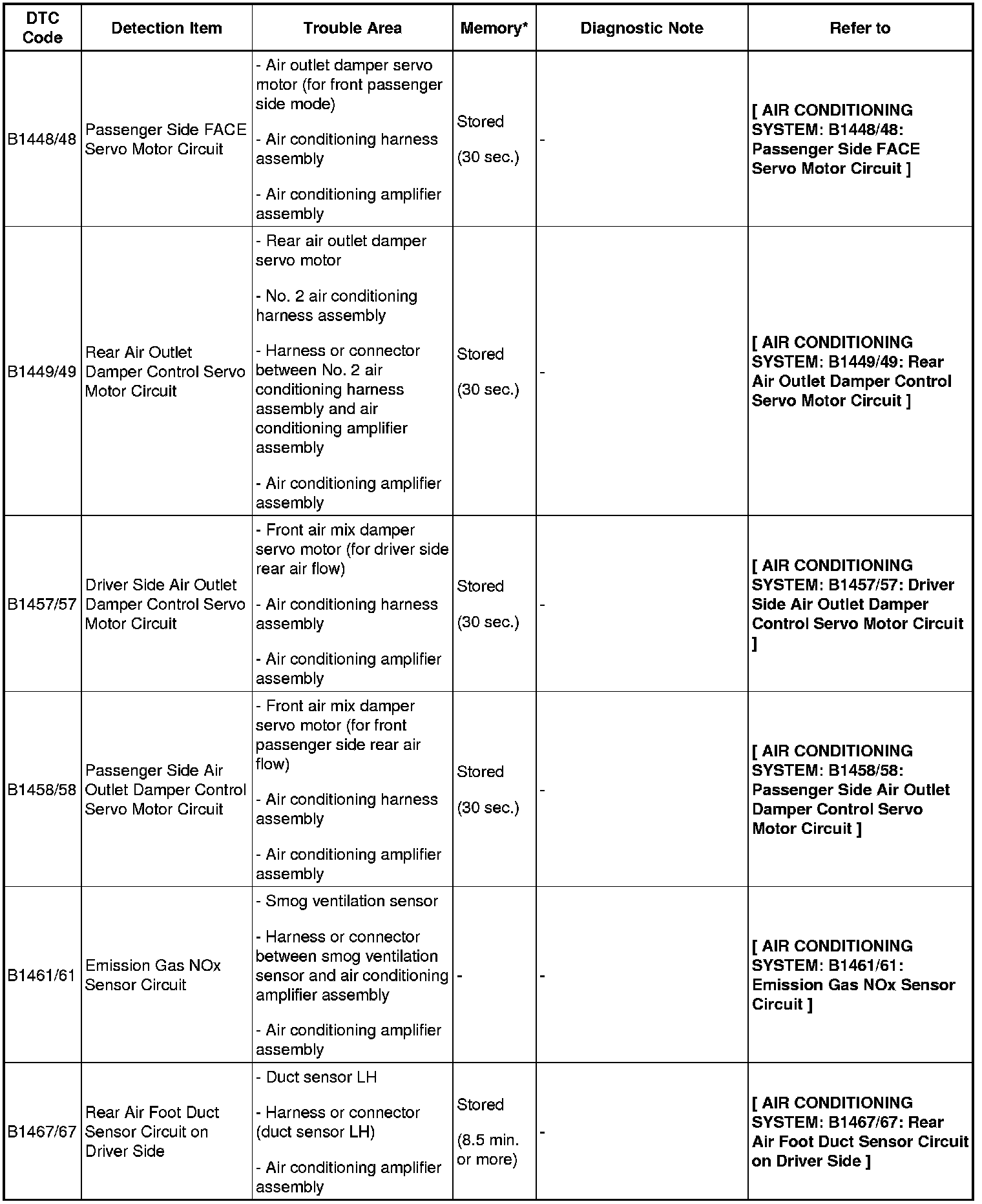

HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT:
If a trouble code is output during the DTC check, inspect the trouble areas listed for that code.

Air Conditioning Amplifier

























*: The air conditioning amplifier stores the DTC of the respective malfunction that has occurred for the period of time indicated in the brackets.
