THEFT DETERRENT / KEYLESS ENTRY: ENGINE IMMOBILIZER SYSTEM: B278A: Short to GND in Immobilizer System Power Source Circuit

DTC B278A - Short to GND in Immobilizer System Power Source Circuit

DESCRIPTION

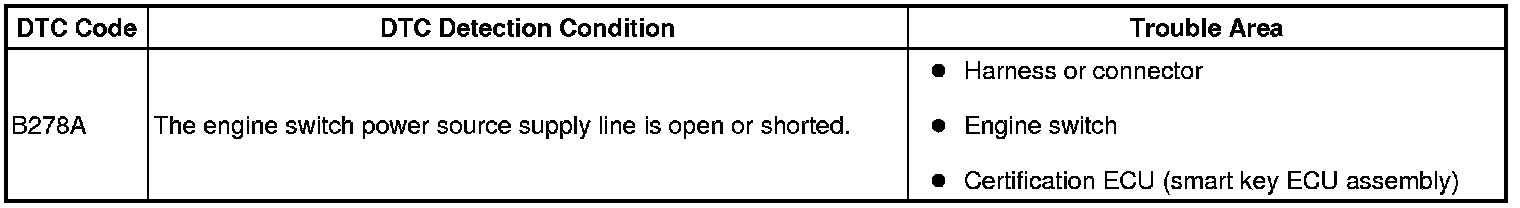

This DTC is stored when the engine switch power source supply line is open or shorted.

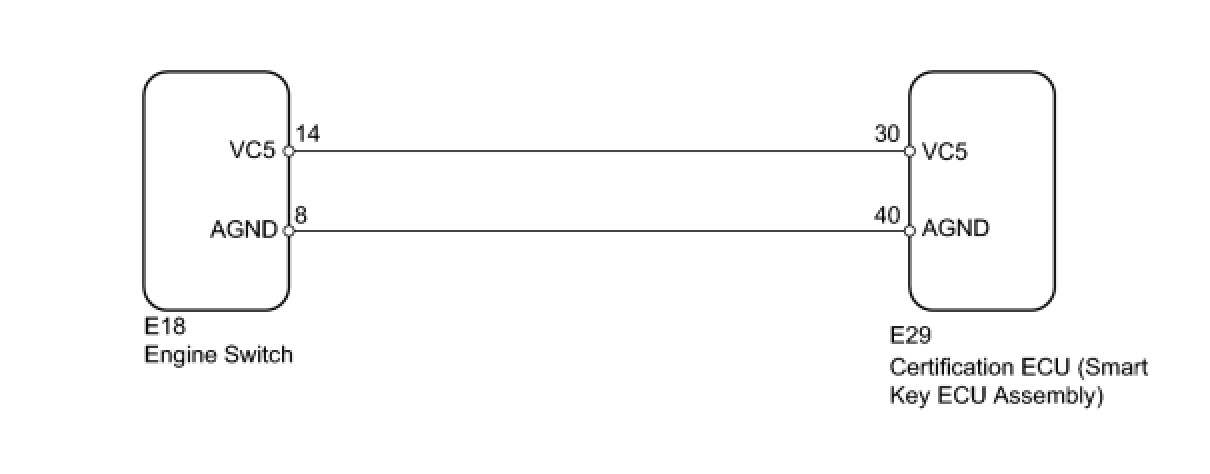

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

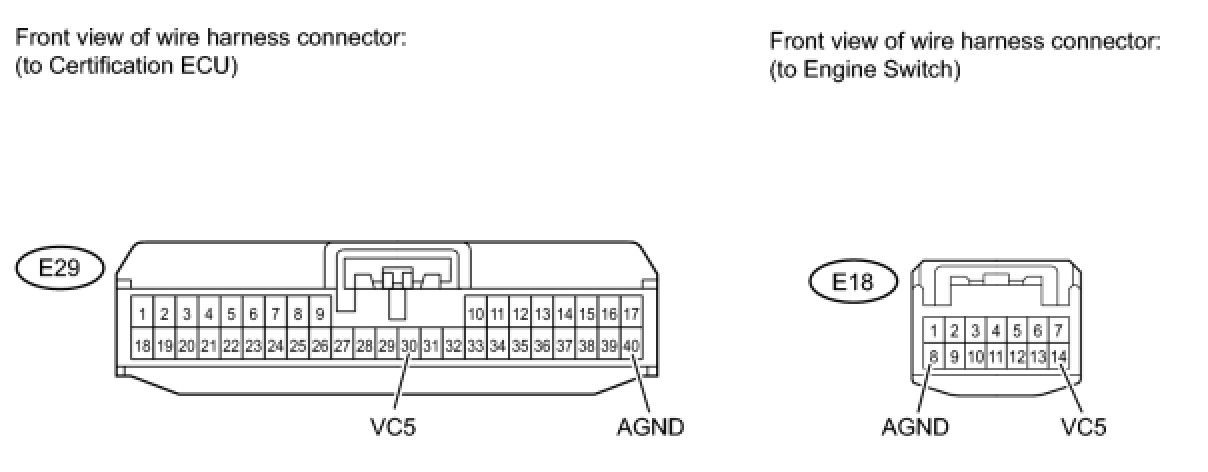

1. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU) - ENGINE SWITCH)





(a) Disconnect the E29 ECU connector.
(b) Disconnect the E18 switch connector.

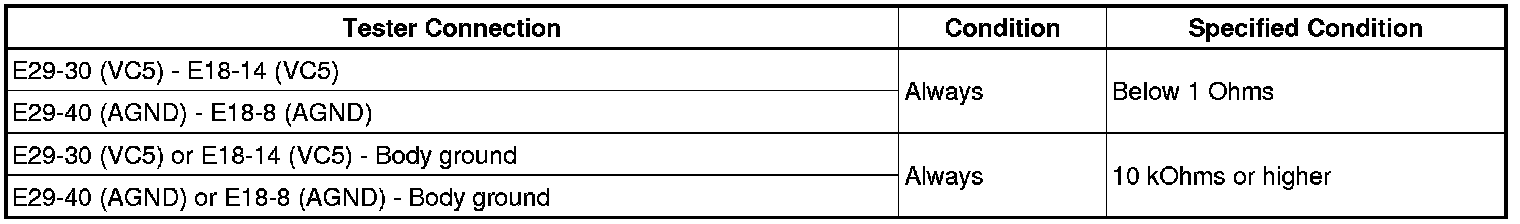

(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
2. REPLACE ENGINE SWITCH
(a) Temporarily replace the engine switch with a new one Removal.
NEXT -- Continue to next step.
3. CLEAR DTC
(a) Clear the DTCs Engine Immobilizer System.
NEXT -- Continue to next step.
4. CHECK FOR DTC
(a) Check for DTCs Engine Immobilizer System.
OK:
DTC B278A is not output.
NG -- REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
OK -- END (ENGINE SWITCH IS DEFECTIVE)
