B2058

PRE-COLLISION: PRE-COLLISION SYSTEM: B2058: Steering Angle Sensor

DTC B2058 - Steering Angle Sensor

DESCRIPTION

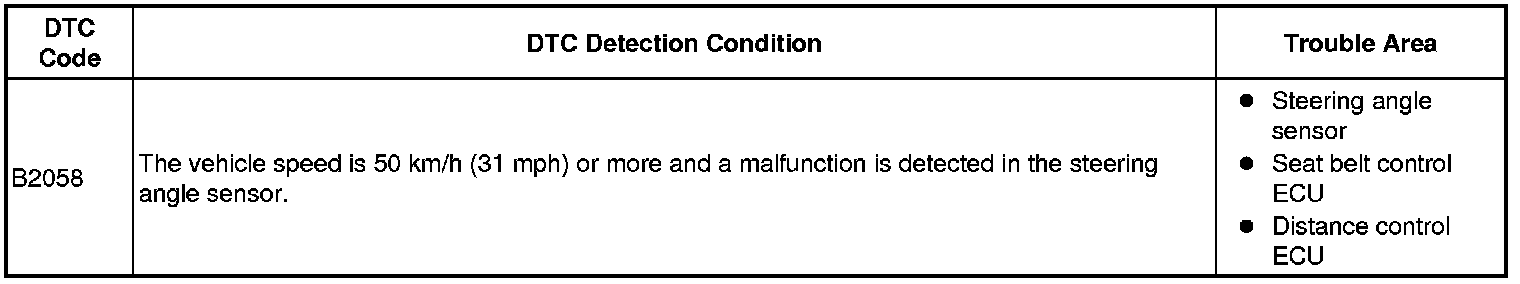

This DTC is stored when a malfunction occurs in the steering angle sensor.

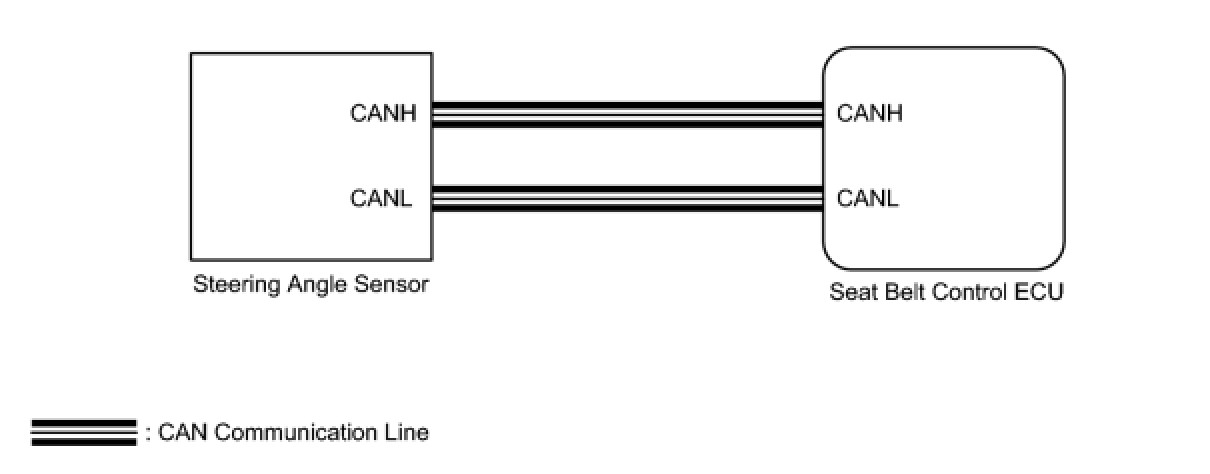

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC (CAN COMMUNICATION SYSTEM)
(a) Use the Techstream to check if the CAN communication system is functioning normally How to Proceed With Troubleshooting.
OK:
DTC U0126 is not output.
NG -- GO TO CAN COMMUNICATION SYSTEM
OK -- Continue to next step.
2. CHECK DTC (PRE-COLLISION SYSTEM)
(a) Using the Techstream, enter the following menus: Body Electrical / Pre-Collision / Trouble Code.
(b) Clear the DTCs Pre-Collision System.
(c) Check for DTCs Pre-Collision System.
OK:
DTC B2058 is not output.
NG -- REPLACE SEAT BELT CONTROL ECU
OK -- USE SIMULATION METHOD TO CHECK
