B1243

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: B1243: GSW Terminal Circuit Malfunction

DTC B1243 - GSW Terminal Circuit Malfunction

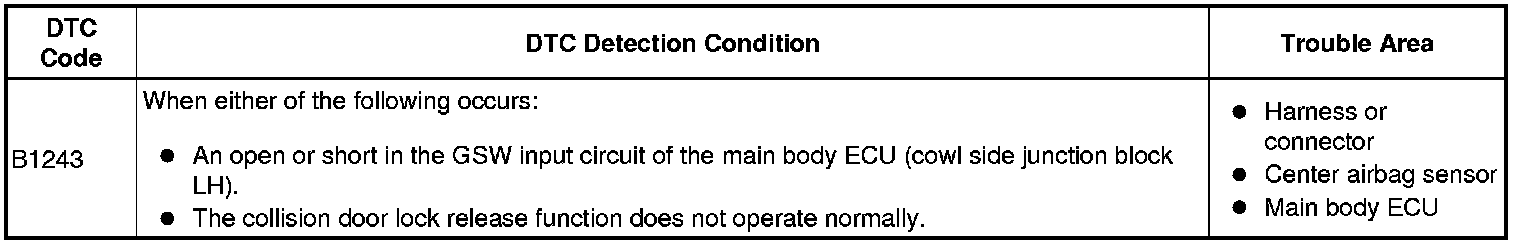

DESCRIPTION

If the collision door lock release function does not operate normally, or an open or short in the GSW input circuit of the main body ECU is detected, DTC B1243 will be stored.
HINT:
If DTC B1243 is stored, the speed-sensitive automatic door lock function, shift-linked automatic door lock function, and collision door lock release function will be prohibited.

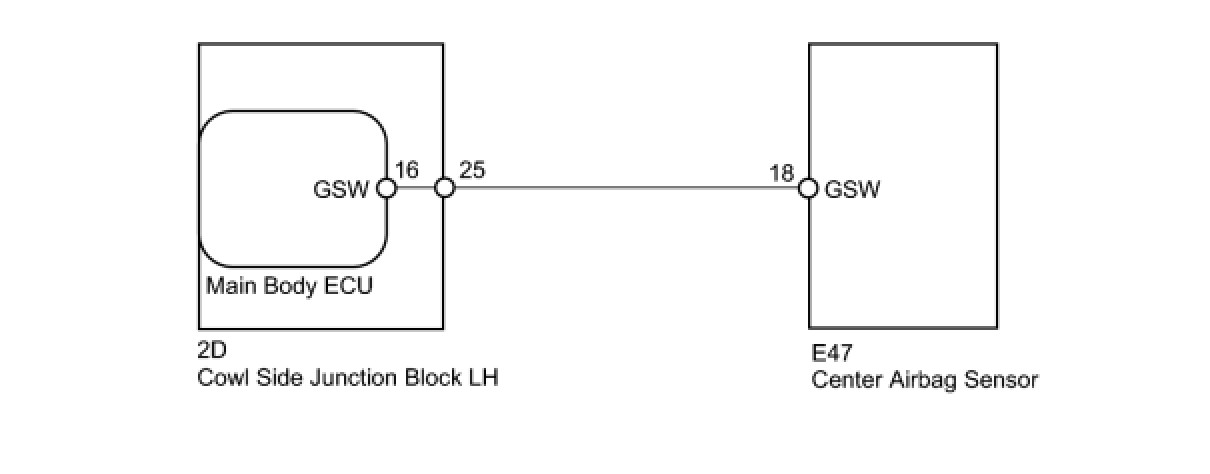

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC OUTPUT
(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.
(b) Check for DTCs.

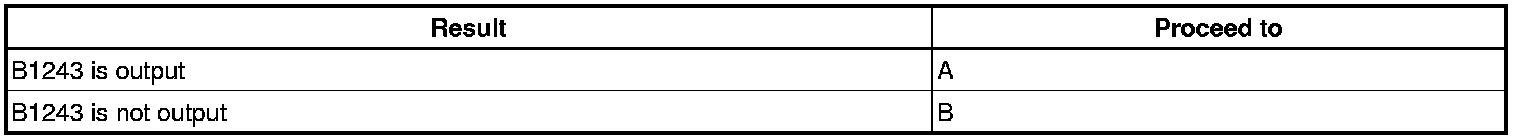

Result





B -- USE SIMULATION METHOD TO CHECK
A -- Continue to next step.

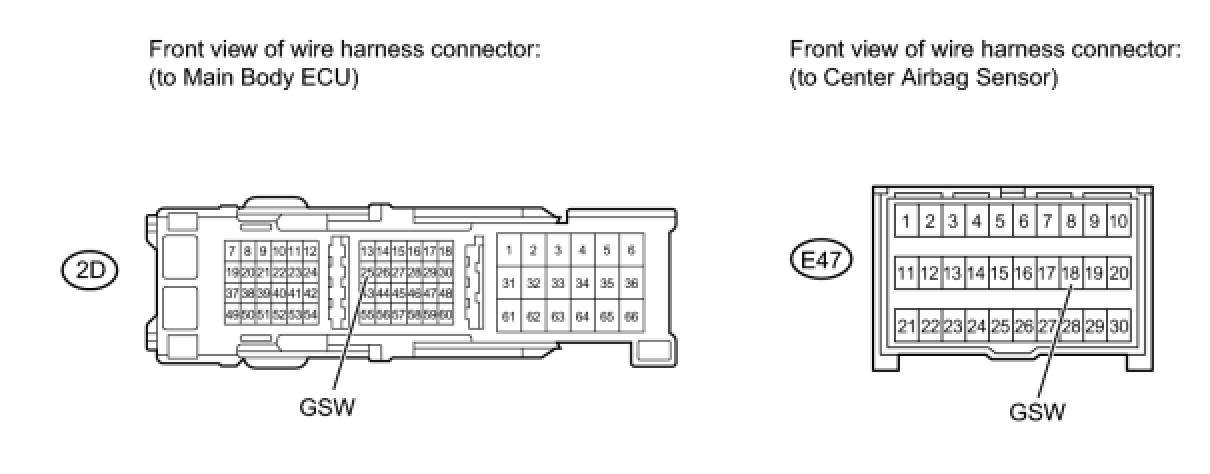

2. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - CENTER AIRBAG SENSOR)
(a) Disconnect the cable from the negative (-) battery terminal.
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

w/ Navigation System:
NOTICE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.





(b) Disconnect the 2D ECU connector.
(c) Disconnect the E47 sensor connector.

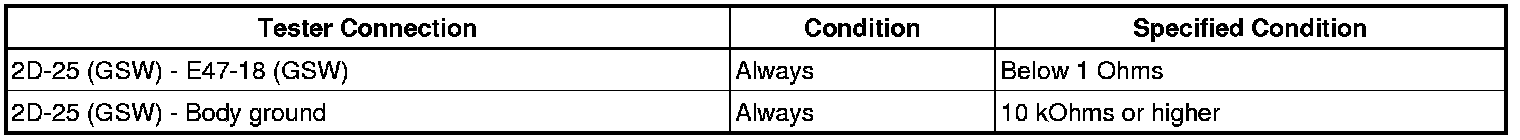

(d) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
3. CHECK MAIN BODY ECU (GSW VOLTAGE)
(a) Disconnect the cable from the negative (-) battery terminal.
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

w/ Navigation System:
NOTICE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.





(b) Reconnect the 2D ECU connector.
(c) Connect the cable to the negative (-) battery terminal.

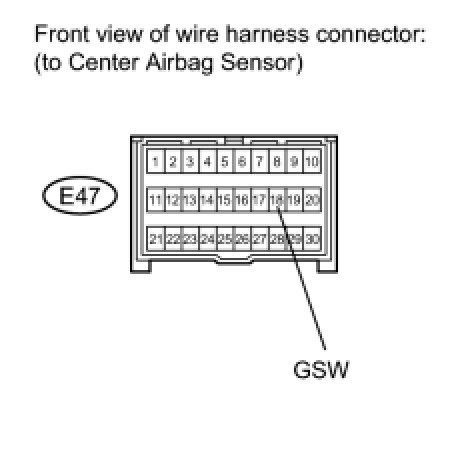

(d) Measure the voltage according to the value(s) in the table below.
Standard Voltage:






NG -- REPLACE MAIN BODY ECU (COWL SIDE JUNCTION BLOCK LH)
OK -- Continue to next step.
4. REPLACE CENTER AIRBAG SENSOR
(a) Disconnect the cable from the negative (-) battery terminal.
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

w/ Navigation System:
NOTICE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
(b) Replace the center airbag sensor Removal.
NEXT -- Continue to next step.
5. CHECK DTC OUTPUT
(a) Recheck for DTCs Reading and Clearing Diagnostic Trouble Codes.

Result





B -- END
A -- REPLACE MAIN BODY ECU (COWL SIDE JUNCTION BLOCK LH)
