Position of Parts in Rear Seat

[w/ Ottoman]

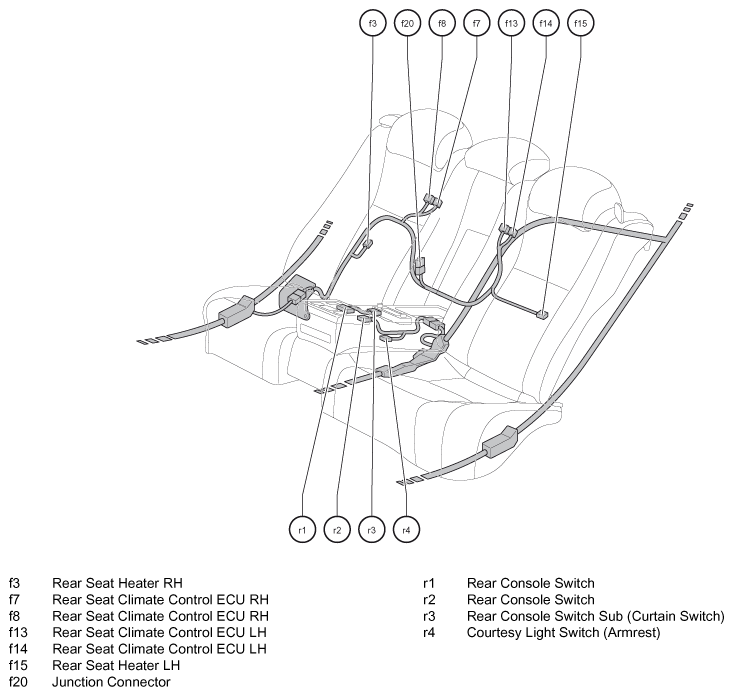

Fig 1: Rear Seat Parts (W/ Ottoman)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

[w/o Ottoman w/ Power Seat]

Fig 2: Rear Seat Parts (W/O Ottoman Power Seat)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

[w/o Ottoman w/o Power Seat]

Fig 3: Rear Seat Parts (W/O Ottoman W/O Power Seat)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
