Location of Connector Joining Wire Harness and Wire Harness

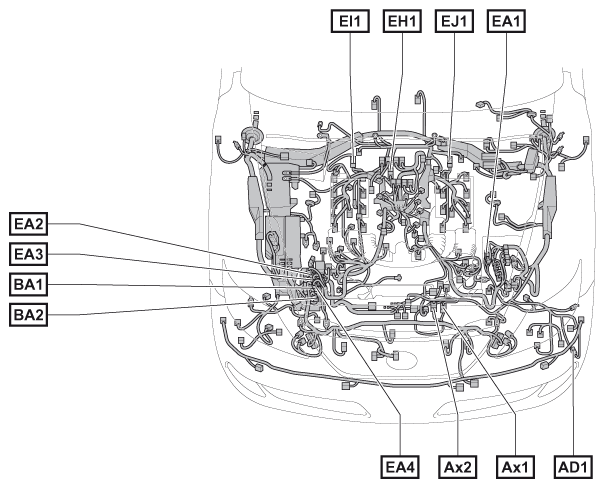

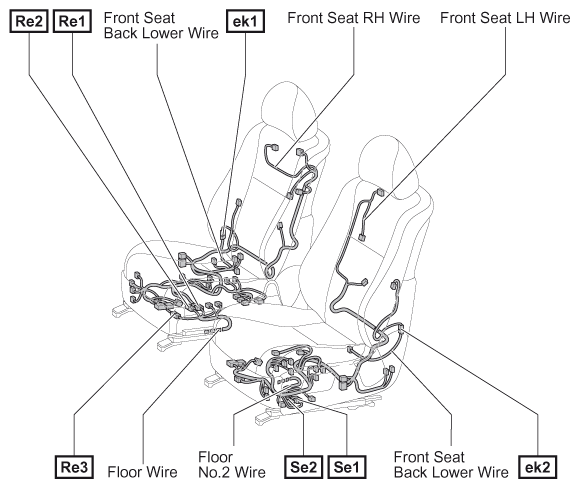

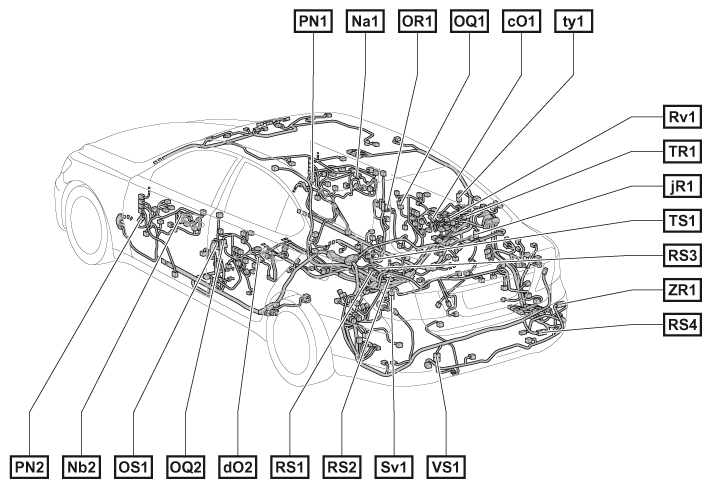

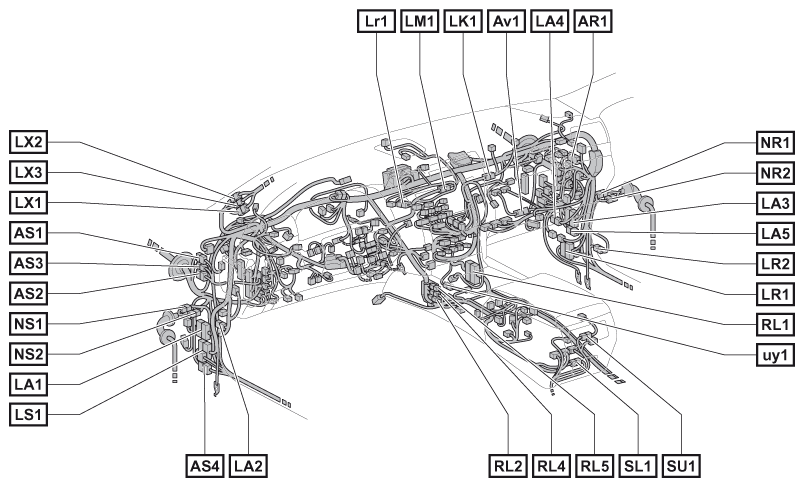

Fig 1: Locating Wire Harnesses Points

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

[w/ Ottoman]

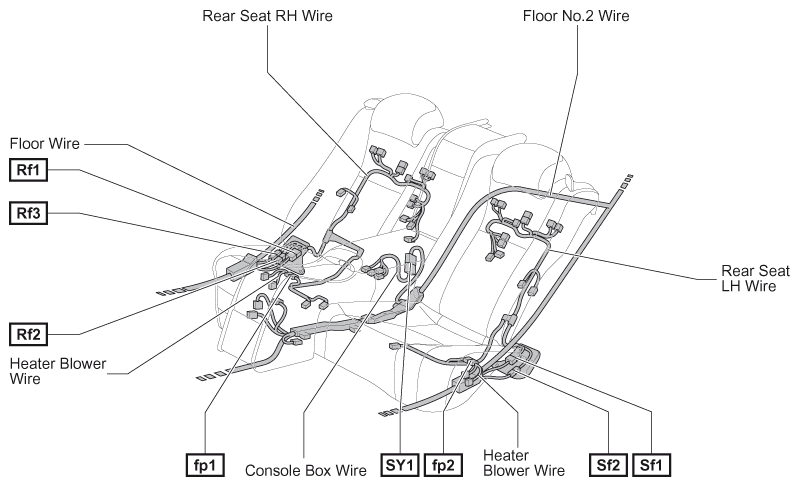

Fig 2: Locating Wire Harnesses Points (W/ Ottoman)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

[w/o Ottoman w/ Power Seat]

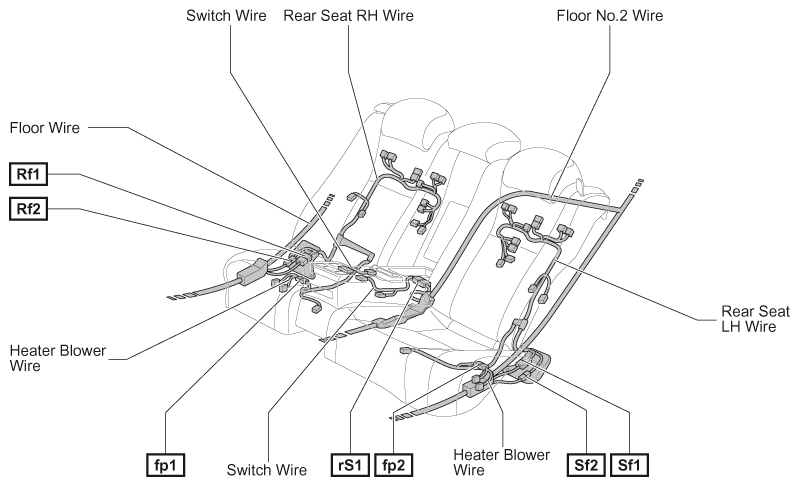

Fig 3: Locating Wire Harnesses Points (W/O Ottoman W/ Power Seat)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

[w/o Ottoman w/o Power Seat]

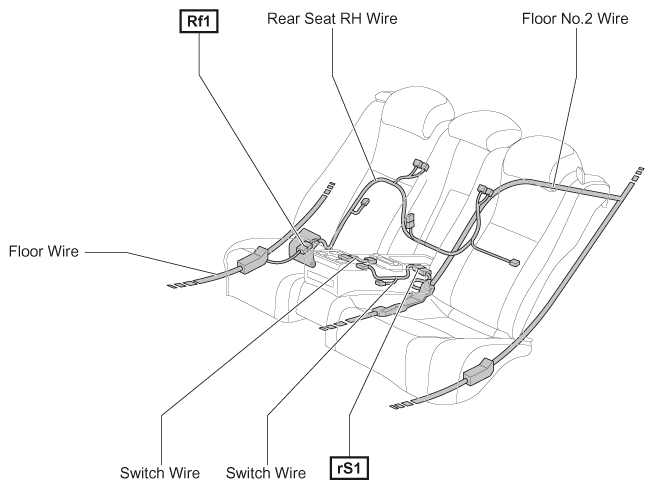

Fig 4: Locating Wire Harnesses Points (W/O Ottoman W/O Power Seat)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
