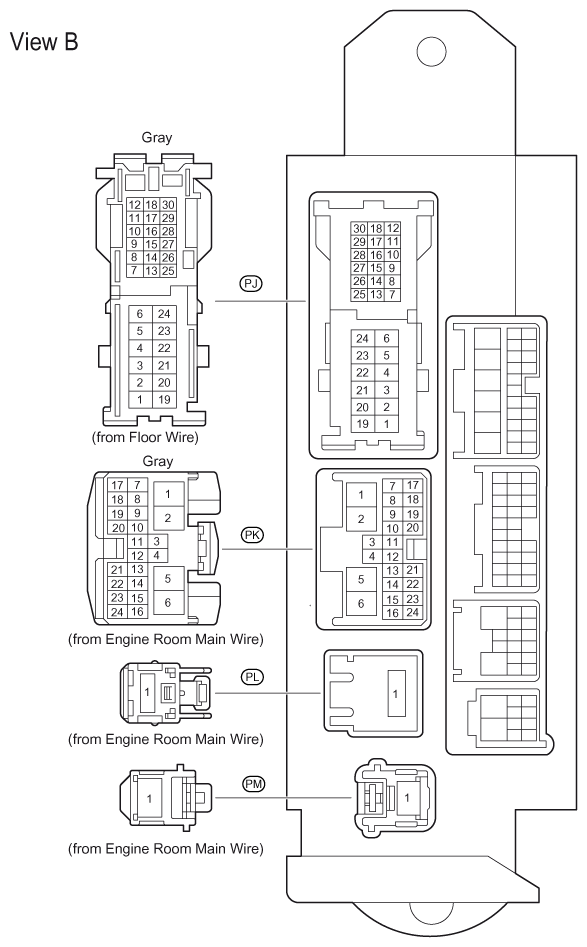

Passenger Side Junction Block
Cowl Side Right (See Figure)
Passenger Side J/B Fuse Identification Legend
| Fuse | System | |
|---|---|---|
| 5A | P IG2 | Adaptive Front-Lighting System |
| Advanced Parking Guidance System | ||
| Air Conditioning | ||
| Air Suspension | ||
| Audio System (w/ SDARS) | ||
| Audio System (w/o SDARS) | ||
| Brake Hold System | ||
| Charging | ||
| Combination Meter | ||
| Cooling Fan | ||
| Cruise Control | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control | ||
| Electric Parking Brake | ||
| Electric Power Control System | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| EPS | ||
| Fog Light | ||
| Headlight | ||
| Illumination | ||
| LEXUS Navigation System, Parking Assist (Rear View Monitor) and Multi-Display (w/o LEXUS Navigation System) | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Seat (Driver's Seat) | ||
| Power Seat (Rear Passenger's Seat) | ||
| Power Shoulder Belt Anchorage | ||
| Power Tilt and Power Telescopic | ||
| Power Trunk Opener and Closer | ||
| Power Window | ||
| Pre-Collision System | ||
| Rear Window Defogger and Mirror Heater | ||
| Remote Control Mirror | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start | ||
| SRS | ||
| Stop Light | ||
| Taillight | ||
| Theft Deterrent | ||
| Tire Pressure Warning System | ||
| Vehicle Dynamics Integrated Management | ||
| VGRS System | ||
| Wiper and Washer | ||
| 5A | P RR-IG2 | LEXUS Link System (Mayday System) |
| SRS | ||
| 5A | P-ACC | Advanced Parking Guidance System |
| Air Conditioning | ||
| Audio System (w/ SDARS) | ||
| Audio System (w/o SDARS) | ||
| Clock | ||
| LEXUS Link System (Mayday System) | ||
| LEXUS Navigation System, Parking Assist (Rear View Monitor) and Multi-Display (w/o LEXUS Navigation System) | ||
| 5A | P-D/C CUT | Adaptive Front-Lighting System |
| Air Suspension | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Brake Hold System | ||
| Climate Control Seat (Rear Passenger's Seat) | ||
| Combination Meter | ||
| Door Closer | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control | ||
| Electric Power Control System | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| EPS | ||
| Fog Light | ||
| Headlight | ||
| Headlight Cleaner | ||
| Horn | ||
| Illumination | ||
| Interior Light | ||
| LEXUS Link System (Mayday System) | ||
| Power Seat (Driver's Seat) | ||
| Power Seat (Rear Passenger's Seat) | ||
| Power Shoulder Belt Anchorage | ||
| Power Tilt and Power Telescopic | ||
| Power Window | ||
| Rear Door Sunshade | ||
| Rear Sunshade | ||
| Rear Window Defogger and Mirror Heater | ||
| Remote Control Mirror | ||
| Seat Heater (Rear Passenger's Seat) | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start | ||
| Taillight | ||
| Theft Deterrent | ||
| Turn Signal and Hazard Warning Light | ||
| Vehicle Dynamics Integrated Management | ||
| VGRS System | ||
| Wiper and Washer | ||
| 5A | P-IG1-2 | Pre-Collision System |
| 5A | P-IG1-3 | VGRS System |
| 5A | PMG | Electric Power Control System |
| Smart Access System with Push-Button Start | ||
| 10A | A/C | Air Conditioning |
| 10A | AM2 | Electric Power Control System |
| Smart Access System with Push-Button Start | ||
| 10A | P DOOR 2 | Door Closer |
| Door Lock Control | ||
| Interior Light | ||
| LEXUS Link System (Mayday System) | ||
| Power Shoulder Belt Anchorage | ||
| Power Window | ||
| Rear Window Defogger and Mirror Heater | ||
| Remote Control Mirror | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| 10A | P MPX-B | Advanced Parking Guidance System |
| Air Conditioning | ||
| Door Closer | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control | ||
| Illumination | ||
| Interior Light | ||
| LEXUS Link System (Mayday System) | ||
| Power Seat (Driver's Seat) | ||
| Power Seat (Front Passenger's Seat w/ Rear Passenger's Seat Ottoman) | ||
| Power Seat (Front Passenger's Seat w/o Rear Passenger's Seat Ottoman) | ||
| Power Seat (Rear Passenger's Seat) | ||
| Power Shoulder Belt Anchorage | ||
| Power Tilt and Power Telescopic | ||
| Power Trunk Opener and Closer | ||
| Power Window | ||
| Rear Door Sunshade | ||
| Rear Window Defogger and Mirror Heater | ||
| Remote Control Mirror | ||
| Sliding Roof | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| Vehicle Dynamics Integrated Management | ||
| VGRS System | ||
| 10A | P-IG1-1 | Advanced Parking Guidance System |
| Air Conditioning | ||
| Brake Hold System | ||
| Door Closer | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control | ||
| Electric Parking Brake | ||
| Electric Tension Reducer | ||
| Interior Light | ||
| LEXUS Link System (Mayday System) | ||
| LEXUS Navigation System, Parking Assist (Rear View Monitor) and Multi-Display (w/o LEXUS Navigation System) | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Shoulder Belt Anchorage | ||
| Power Window | ||
| Rear Window Defogger and Mirror Heater | ||
| Remote Control Mirror | ||
| Seat Belt Warning | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| Tire Pressure Warning System | ||
| Vehicle Dynamics Integrated Management | ||
| 10A | P-IG1-4 | Climate Control Seat (Driver's Seat and Front Passenger's Seat) |
| Climate Control Seat (Rear Passenger's Seat) | ||
| Seat Heater (Rear Passenger's Seat) | ||
| 15A | P-CIG | Cigarette Lighter |
| 20A | AIRSUS | Air Suspension |
| 20A | P S/HTR | Climate Control Seat (Driver's Seat and Front Passenger's Seat) |
| 20A | RADIO NO. 1 | Advanced Parking Guidance System |
| Air Conditioning | ||
| LEXUS Link System (Mayday System) | ||
| LEXUS Navigation System, Parking Assist (Rear View Monitor) and Multi-Display (w/o LEXUS Navigation System) | ||
| 25A | P DOOR 1 | Door Closer |
| Door Lock Control | ||
| Interior Light | ||
| LEXUS Link System (Mayday System) | ||
| Power Shoulder Belt Anchorage | ||
| Power Window | ||
| Rear Window Defogger and Mirror Heater | ||
| Remote Control Mirror | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| 25A | P RR DOOR | Air Conditioning |
| Door Closer | ||
| Door Lock Control | ||
| Illumination | ||
| Interior Light | ||
| LEXUS Link System (Mayday System) | ||
| Power Seat (Rear Passenger's Seat) | ||
| Power Window | ||
| Rear Door Sunshade | ||
| Smart Access System with Push-Button Start | ||
| Theft Deterrent | ||
| 30A | AMP | Audio System (w/ SDARS) |
| Audio System (w/o SDARS) | ||
| 30A | P P/SEAT 1 | Power Seat (Front Passenger's Seat w/ Rear Passenger's Seat Ottoman) |
| Power Seat (Front Passenger's Seat w/o Rear Passenger's Seat Ottoman) | ||
| 30A | P P/SEAT 2 | Power Seat (Front Passenger's Seat w/o Rear Passenger's Seat Ottoman) |
| 30A | P RR S/HTR | Climate Control Seat (Rear Passenger's Seat) |
| Seat Heater (Rear Passenger's Seat) | ||
| 30A | RR SEAT | Power Seat (Front Passenger's Seat w/ Rear Passenger's Seat Ottoman) |
| Power Seat (Rear Passenger's Seat) | ||
