ROOF HEADLINING (for Standard Body): Removal

  1. REMOVE COWL TOP VENTILATOR LOUVER RH  (See REMOVAL )
  2. REMOVE FRONT SEAT ASSEMBLY
    1. Remove the front seat (see REMOVAL ).
  3. REMOVE REAR SEAT ASSEMBLY (for Fixed Type)
    1. Remove the rear seat (see REMOVAL ).
  4. REMOVE REAR SEAT ASSEMBLY (for Power Seat)
    1. Remove the rear seat (see REMOVAL ).
  5. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Put protective tape around the front door scuff plate.
    2. Using a molding remover, detach the 4 clips.
      Fig 1: Putting Protective Tape Around Front Door Scuff Plate
      G04946699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the 7 claws and remove the front door scuff plate LH.
      Fig 2: Identifying Front Door Scuff Plate Claws
      G04946700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described for the LH side.

  7. REMOVE COWL SIDE TRIM BOARD LH
    1. Detach the 3 claws and remove the cowl side trim board.
      Fig 3: Identifying Cowl Side Trim Board Claws
      G04946762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedures described for the LH side.

  9. REMOVE FRONT PILLAR GARNISH LH
    1. Detach the 2 clips from the vehicle body.
    2. Cut off the clip A.
    3. Detach the claw and remove the front pillar garnish.
    4. Remove the clip A from the vehicle body.
      Fig 4: Identifying Front Pillar Garnish Clips & Claws
      G04946702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Protect the curtain shield airbag assembly.
      1. Thoroughly cover the airbag with a cloth or nylon sheet and fix the ends of the cover with adhesive tape, as shown below.
        NOTE: Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.
        Fig 5: Identifying Curtain Shield Airbag Assembly
        G04946703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

  11. REMOVE REAR DOOR SCUFF PLATE LH
    1. Put protective tape around the rear door scuff plate.
    2. Using a molding remover, detach the 3 clips.
      Fig 6: Putting Protective Tape Around Rear Door Scuff Plate
      G04946704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the 7 claws and remove the rear door scuff plate.
      Fig 7: Identifying Rear Door Scuff Plate Claws
      G04946705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures described for the LH side.

  13. REMOVE CENTER PILLAR GARNISH LOWER LH
    1. Detach the 2 claws and 6 clips, and remove the center pillar garnish lower.
      Fig 8: Identifying Center Pillar Garnish Lower Claws & Clips
      G04946706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE CENTER PILLAR GARNISH LOWER RH

    HINT:

    Use the same procedures described for the LH side.

  15. REMOVE CENTER PILLAR GARNISH UPPER LH
    1. Remove the 2 screws.
    2. Detach the claw.
    3. Pass the front seat outer belt floor anchor through the center pillar garnish lower, and remove the center pillar garnish lower.
      Fig 9: Identifying Center Pillar Garnish Upper Claws & Screws
      G04946707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE CENTER PILLAR GARNISH UPPER RH

    HINT:

    Use the same procedures described for the LH side.

  17. REMOVE SHOULDER BELT ANCHOR COVER LH
    1. Detach the 6 claws of the cover, and slide the cover in the direction of the arrow to remove it.
      Fig 10: Identifying Shoulder Belt Anchor Cover Claws
      G04946708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE SHOULDER BELT ANCHOR COVER RH

    HINT:

    Use the same procedures described for the LH side.

  19. REMOVE REAR SEAT SIDE GARNISH LH
    1. Detach the 6 claws and remove the rear seat side garnish.
      Fig 11: Identifying Rear Seat Side Garnish Claws
      G04946709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedures described for the LH side.

  21. REMOVE ROOF SIDE GARNISH INNER LH
    1. Pull the garnish away from the body and detach the 4 clips (do not detach clip A).
    2. Detach the 2 claws of the guide, and remove the roof side garnish inner toward the front of the vehicle (in the direction of the arrow).

      HINT:

      Clip A remains attached to the body.

    3. Remove clip A from the vehicle body.
      4. Fig 12: Identifying Roof Side Garnish Inner Claws
      G04946710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE ROOF SIDE GARNISH INNER RH

    HINT:

    Use the same procedures described for the LH side.

  23. REMOVE MAP LIGHT ASSEMBLY
    1. Using a screwdriver, detach the 2 claws and open the 2 covers.

      HINT:

      Tape the screwdriver tip before use.

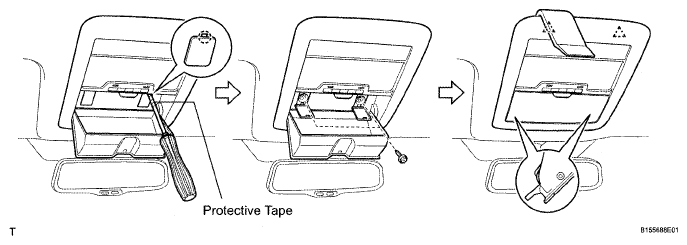

      Fig 13: Identifying Map Light Assembly Screws & Clips
      G04946711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.
    3. Using a moulding remover, detach the 2 clips.
    4. Disconnect the 2 connectors and then remove the map light.
    5. w/ Sliding Roof:

    Disconnect the drive gear connector.

    Fig 14: Locating Drive Gear Connector
    G04946712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE SPOT LIGHT ASSEMBLY
    1. Using a moulding remover, detach the 4 claws.
    2. Disconnect the connector and then remove the spot light.
  25. REMOVE REAR VANITY LIGHT ASSEMBLY

    HINT:

    Use the same procedures to remove the vanity light on the other side.

    1. Using a screwdriver, detach the 4 claws and remove the lens.

      HINT:

      Tape the screwdriver tip before use.

      Fig 15: Identifying Spot Light Claws
      G04946713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.
    3. Using a moulding remover, detach the claw.
    4. Disconnect the connector and then remove the vanity light.

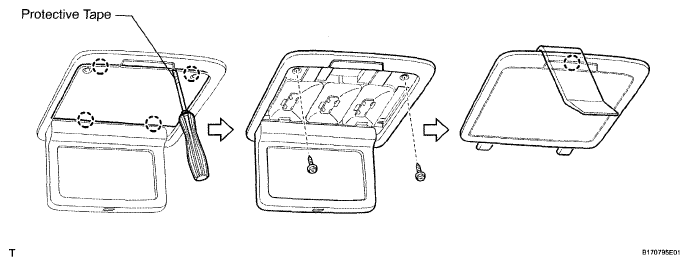

      Fig 16: Identifying Vanity Light
      G04946714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE COAT HOOK

    HINT:

    Use the same procedures to remove the hook on the other side.

    1. Remove the screw and coat hook.
      Fig 17: Identifying Screw & Coat Hook
      G04946748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE ROOF SIDE REGISTER BEZEL LH (w/ Rear Cooler)
    1. Remove the screw.
    2. Detach the claw and remove the roof side register.
  28. REMOVE ROOF SIDE REGISTER BEZEL RH (w/ Rear Cooler)

    HINT:

    Use the same procedures described for the LH side.

    Fig 18: Identifying Roof Side Register Screw With Claw
    G04946716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE ASSIST GRIP SUB-ASSEMBLY

    HINT:

    Use the same procedures for the other 3 assist grips.

    1. Using a screwdriver, detach the 4 claws and remove the 2 assist grip covers.

      HINT:

      Tape the screwdriver tip before use.

    2. Detach the 2 clips and remove the assist grip.
      3. Fig 19: Locating Assist Grip Covers
      G04946717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE VISOR BRACKET COVER

    HINT:

    Use the same procedures to remove the cover on the other side.

    1. Using a molding remover, detach the 4 claws and remove the visor bracket cover.
    Fig 20: Disengaging Claws
    G04946718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE VISOR ASSEMBLY LH
    1. Remove the 2 screws and visor.
      2. Fig 21: Identifying Visor Assembly LH With Screws
      G04946719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE VISOR ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  33. REMOVE VISOR HOLDER

    HINT:

    Use the same procedures to remove the holder on the other side.

    1. Turn the visor holder approximately 45° and pull it out as shown below.
    2. Detach the 2 claws and remove the visor holder.
    Fig 22: Turning Visor Holder With Claws
    G04946720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE FRONT WIPER ARM LH  (See REMOVAL )
  35. REMOVE FRONT WIPER ARM RH  (See REMOVAL )
  36. REMOVE FRONT FENDER TO COWL SIDE SEAL LH  (See REMOVAL )
  37. REMOVE FRONT FENDER TO COWL SIDE SEAL RH  (See REMOVAL )
  38. REMOVE HOOD TO COWL TOP SEAL  (See REMOVAL )
  39. REMOVE COWL TOP VENTILATOR LOUVER PROTECTOR LH  (See REMOVAL )
  40. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY  (See REMOVAL )
  41. REMOVE ROOF DRIP SIDE FINISH MOULDING CENTER LH
    1. Remove the roof drip side finish molding center (see REMOVAL ).
  42. REMOVE ROOF DRIP SIDE FINISH MOULDING CENTER RH
    1. Remove the roof drip side finish molding center (see REMOVAL ).
  43. REMOVE INNER REAR VIEW MIRROR COVER (w/o Rain Sensor)  (See REMOVAL )
  44. REMOVE RAIN SENSOR COVER (w/ Rain Sensor)  (See REMOVAL )
  45. DISCONNECT RAIN SENSOR CONNECTOR (w/ Rain Sensor)
  46. REMOVE INNER REAR VIEW MIRROR ASSEMBLY  (See REMOVAL )
  47. REMOVE WINDSHIELD OUTSIDE MOLDING UPPER  (See REMOVAL )
  48. REMOVE WINDSHIELD GLASS  (See REMOVAL )
  49. REMOVE NO. 2 WINDSHIELD GLASS STOPPER  (See REMOVAL )
  50. REMOVE WINDSHIELD GLASS RETAINER  (See REMOVAL )
  51. REMOVE WINDSHIELD GLASS ADHESIVE DAM  (See REMOVAL )
  52. REMOVE WINDSHIELD GLASS SEAL  (See REMOVAL )
  53. CLEAN WINDSHIELD GLASS  (See REMOVAL )
  54. REMOVE NO. 1 WINDSHIELD GLASS STOPPER  (See REMOVAL )
  55. CLEAN VEHICLE BODY  (See REMOVAL )
  56. REMOVE ROOF HEADLINING ASSEMBLY
    1. Disconnect the roof wire connectors and detach each clamp from the front pillar.
      Fig 23: Locating Roof Wire Connectors
      G04946721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Standard Type:

      Detach the hook, 12 claws, 3 fasteners and 4 clips.

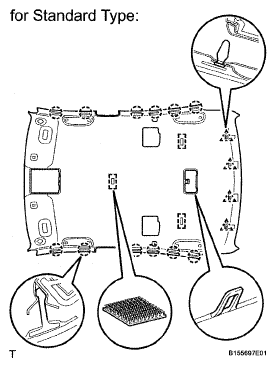

      Fig 24: Identifying Claws, Fasteners & Clips (Standard Type)
      G04946722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. w/ Sliding Roof:

      Detach the hook, 12 claws, 10 fasteners and 4 clips.

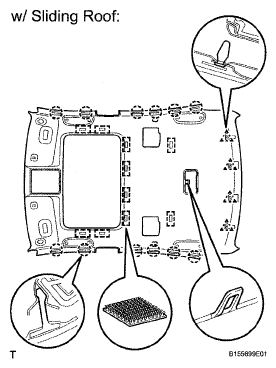

      Fig 25: Identifying Claws, Fasteners & Clips (W/ Sliding Roof)
      G04946723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the roof headlining through the front of the vehicle.
      Fig 26: Identifying Roof Headlining
      G04946724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  57. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  58. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  59. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
  60. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
