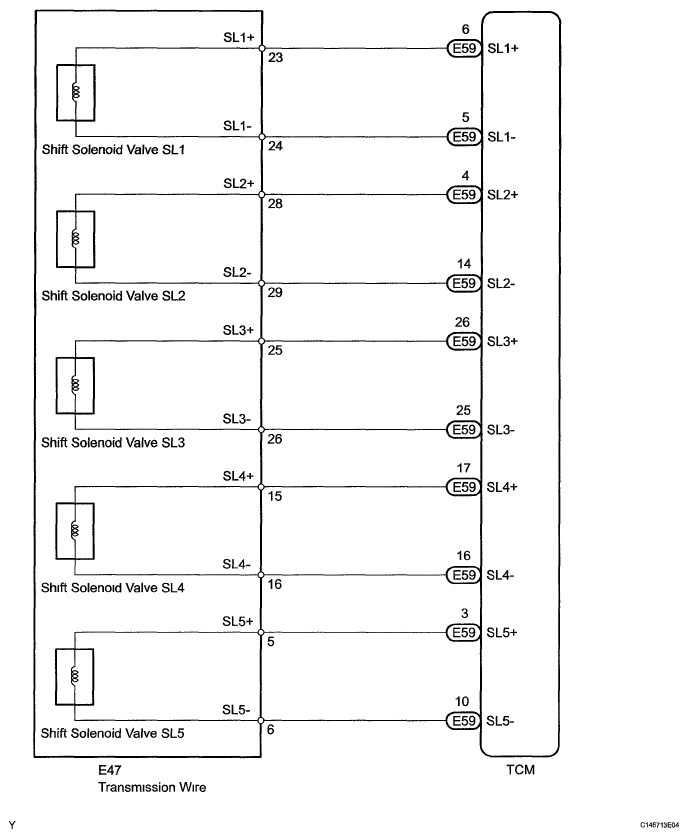

DTC P0748: Pressure Control Solenoid "A" Electrical (Shift Solenoid Valve SL1); DTC P0778: Pressure Control Solenoid "B" Electrical (Shift Solenoid Valve SL2); DTC P0798: Pressure Control Solenoid "C" Electrical (Shift Solenoid Valve SL3); DTC P2810: Pressure Control Solenoid "G" Electrical (Shift Solenoid Valve SL4); DTC P2819: Pressure Control Solenoid "H" Electrical (Shift Solenoid Valve SL5): Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
