Clutch Release Cylinder: Components

WARNING: This page is about a different variant/trim than selected.

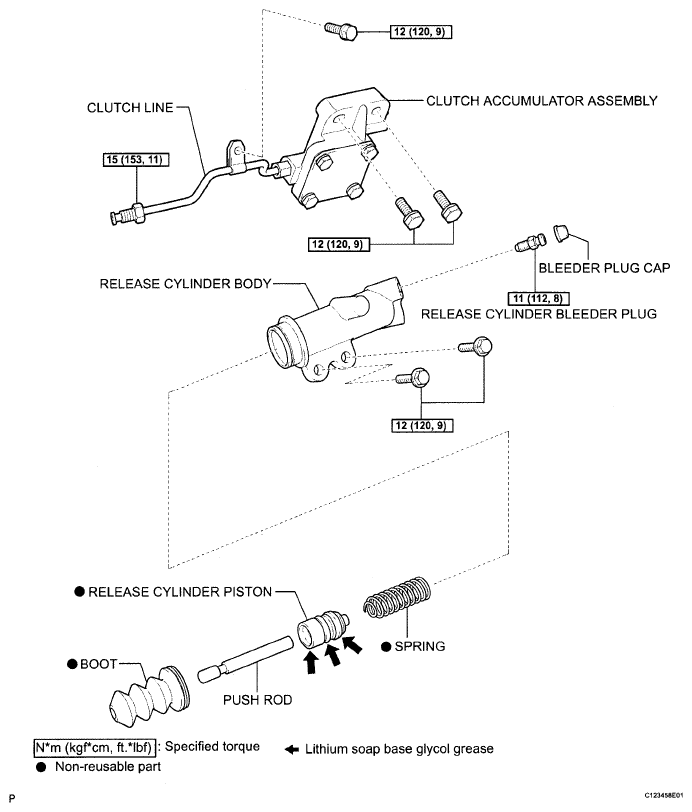

Fig 1: Clutch Release Cylinder Replacement Components With Torque Specifications
G05830167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
