Clutch Master Cylinder: Components

WARNING: This page is about a different variant/trim than selected.

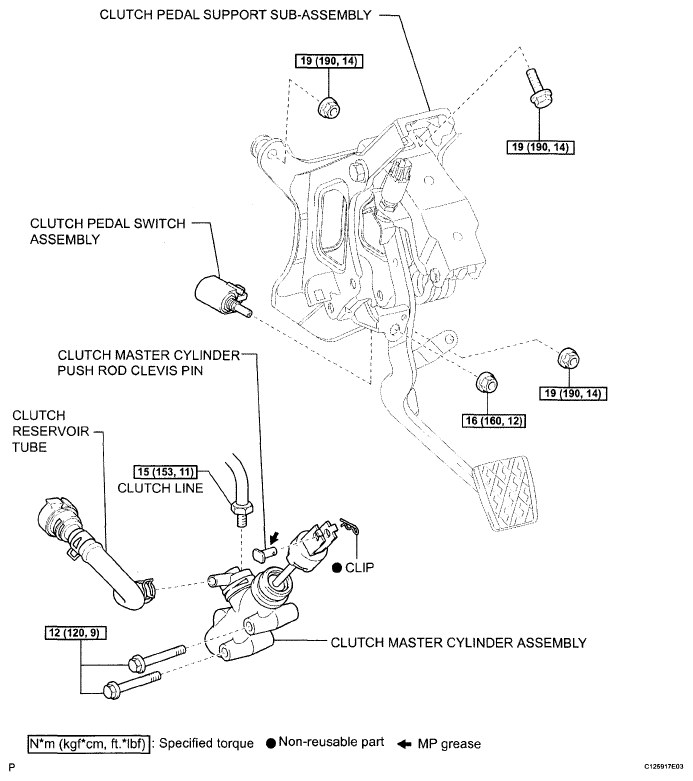

Fig 1: Clutch Master Cylinder Replacement Components With Torque Specifications
G05830154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
