Transfer Wire: Components

WARNING: This page is about a different variant/trim than selected.
Fig 1: Exploded View Of Transfer Wire Replacement Components (1 Of 2) with Torque Specifications
G05318790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

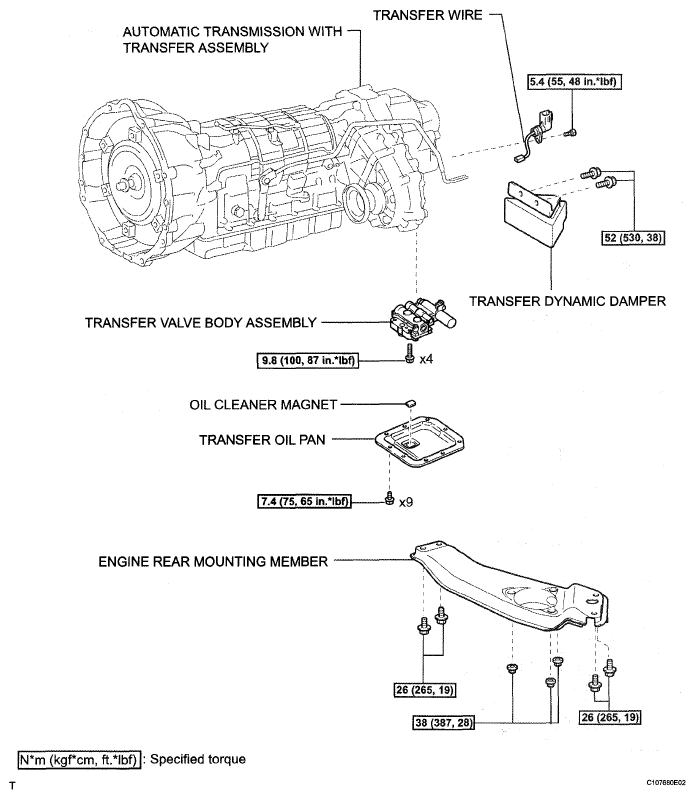

Fig 2: Exploded View Of Transfer Wire Components (2 Of 2) with Torque Specifications
G05318791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
