Transfer Valve Body Assembly: Components

WARNING: This page is about a different variant/trim than selected.
Fig 1: Exploded View Of Transfer Valve Body Assembly Replacement Components (1 Of 2) with Torque Specifications
G05318781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

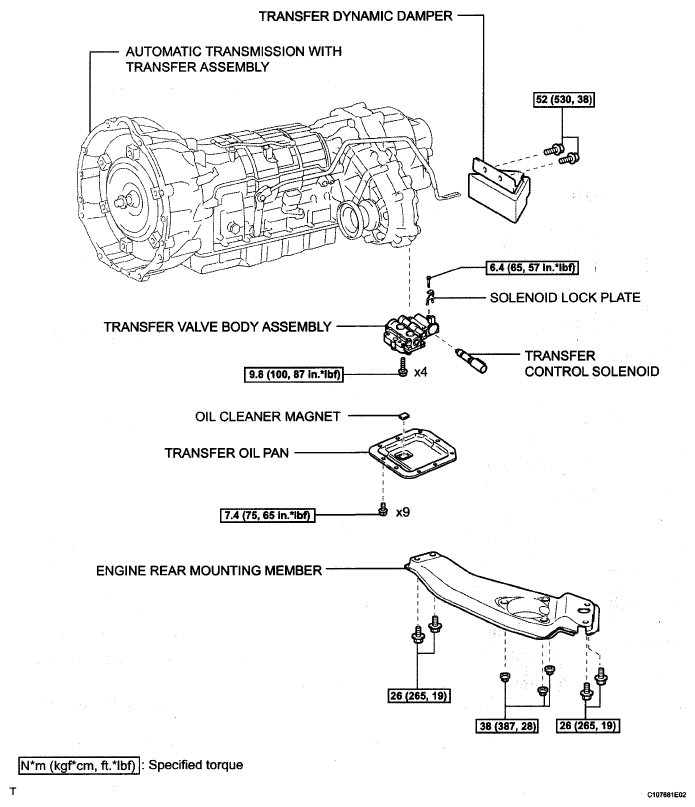

Fig 2: Exploded View Of Transfer Valve Body Assembly Components (2 Of 2) with Torque Specifications
G05318782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
