Transfer Assembly: Components

WARNING: This page is about a different variant/trim than selected.

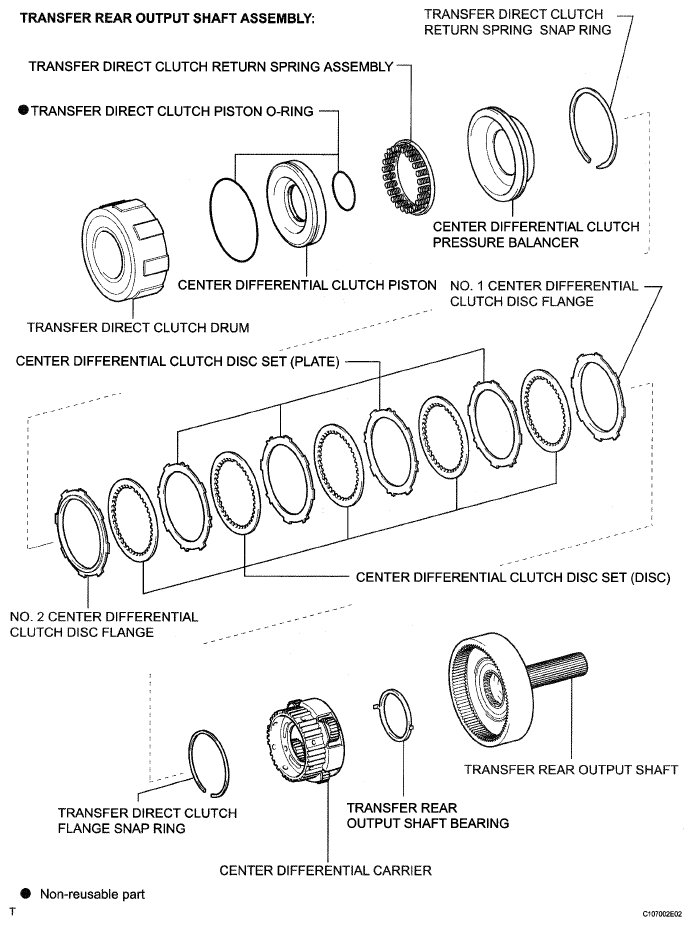

Fig 1: Exploded View Of Transfer Assembly Replacement Components (1 Of 7) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

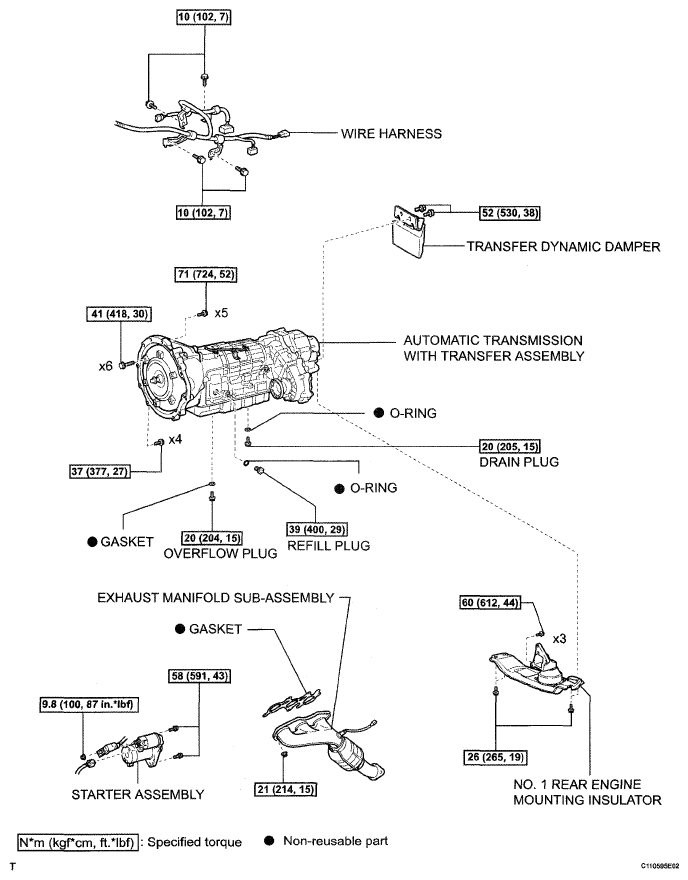

Fig 2: Exploded View Of Transfer Assembly Components (2 Of 7) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

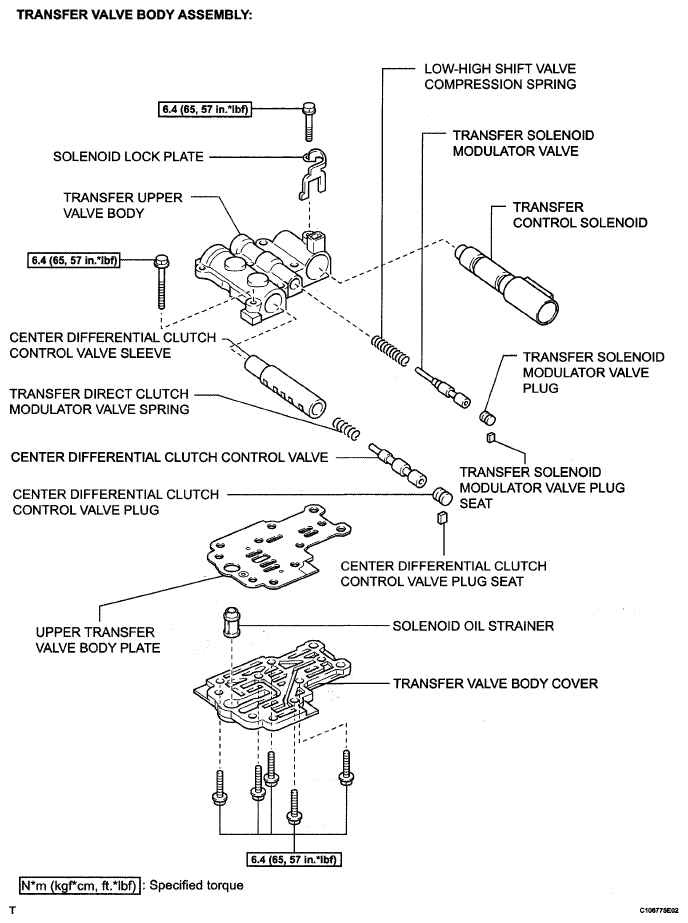

Fig 3: Exploded View Of Transfer Assembly Components (3 Of 7) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

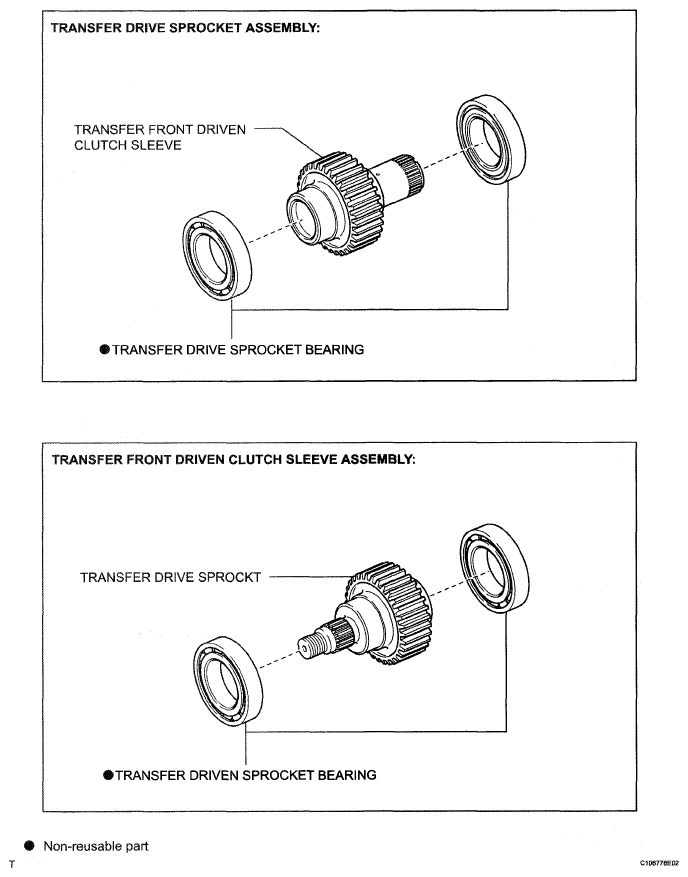

Fig 4: Exploded View Of Transfer Assembly Components (4 Of 7) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

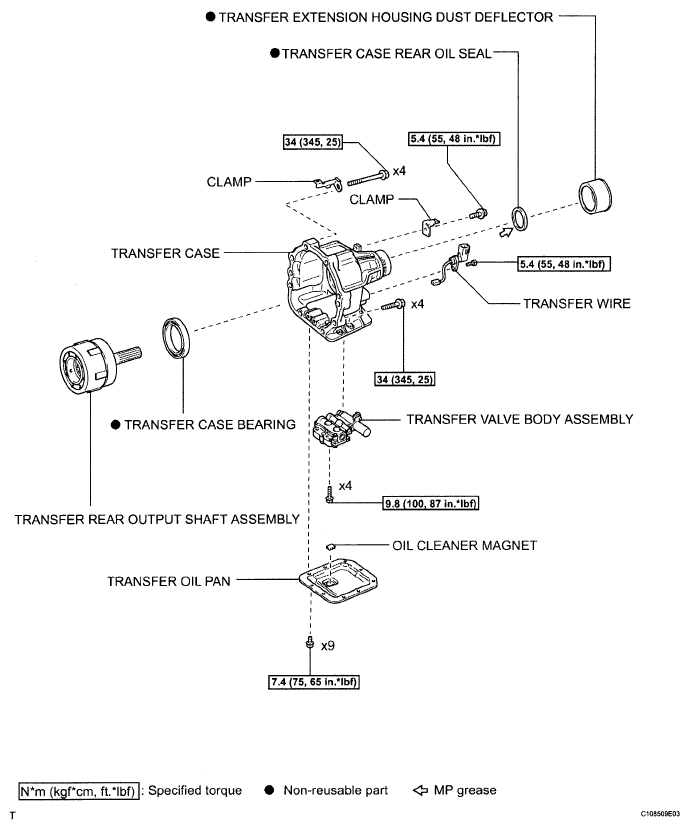

Fig 5: Exploded View Of Transfer Assembly Components (5 Of 7) with Torque Specifications

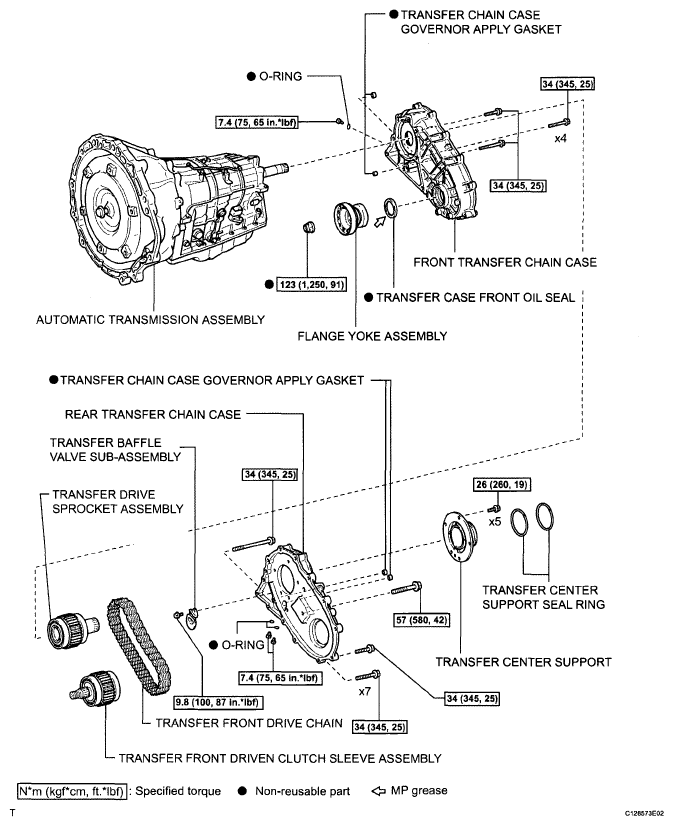

Fig 6: Exploded View Of Transfer Assembly Components (6 Of 7)

Fig 7: Exploded View Of Transfer Assembly Components (7 Of 7)
