DTC C1297/97: Steering Angle Sensor: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

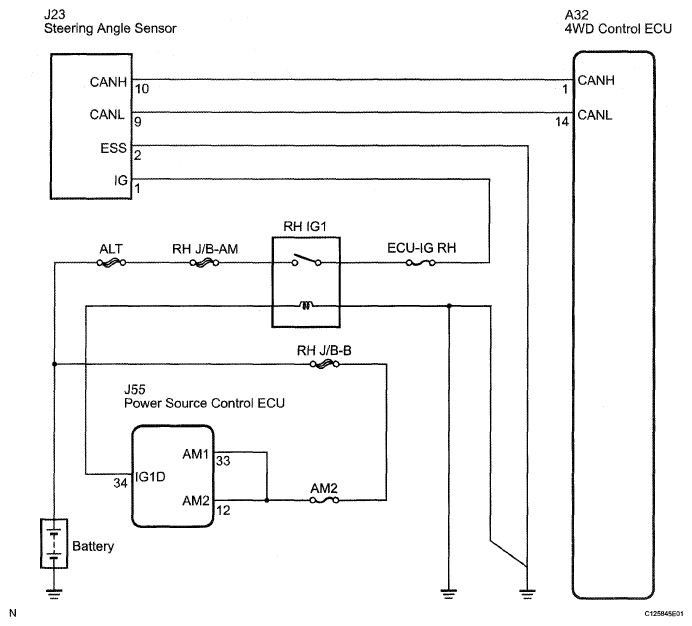

Fig 1: Steering Angle Sensor Wiring Diagram
G05318655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
