DTC C1296/96: ABS Malfunction: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

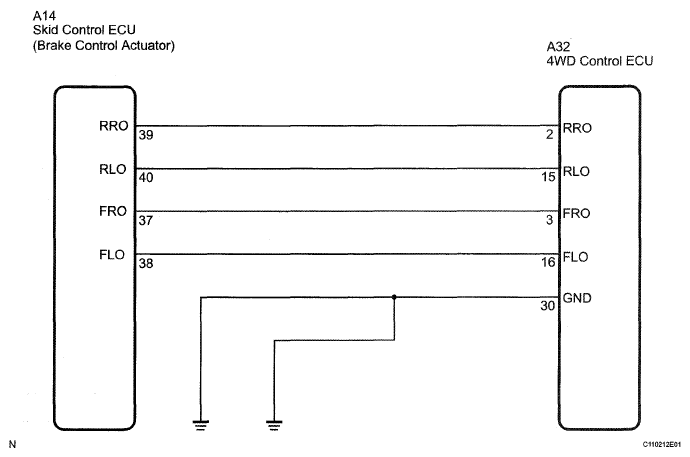

Fig 1: ABS Malfunction Wiring Diagram
G05318651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
