Manual Transmission Unit: Components

WARNING: This page is about a different variant/trim than selected.

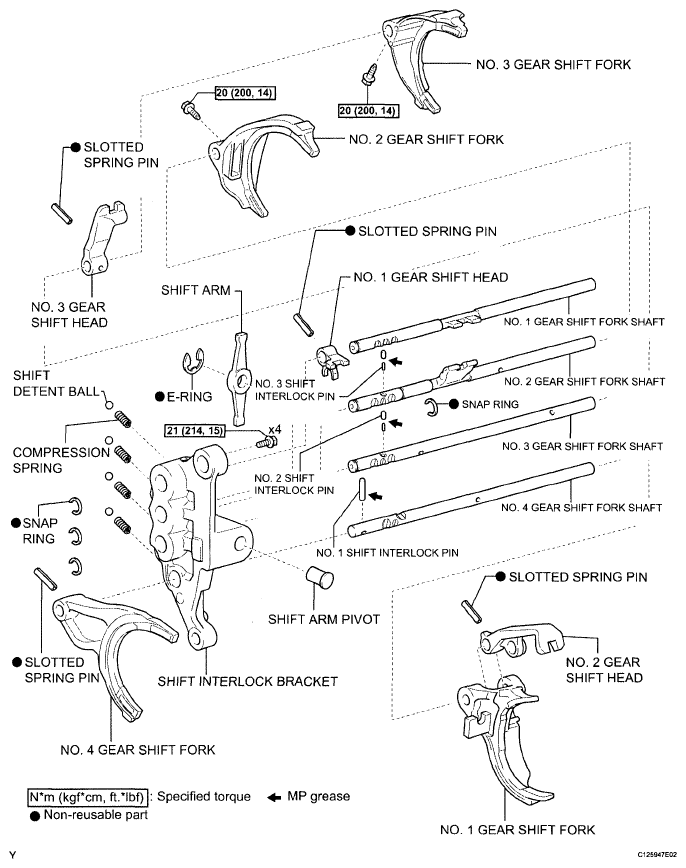

Fig 1: Identifying Manual Transmission Unit Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

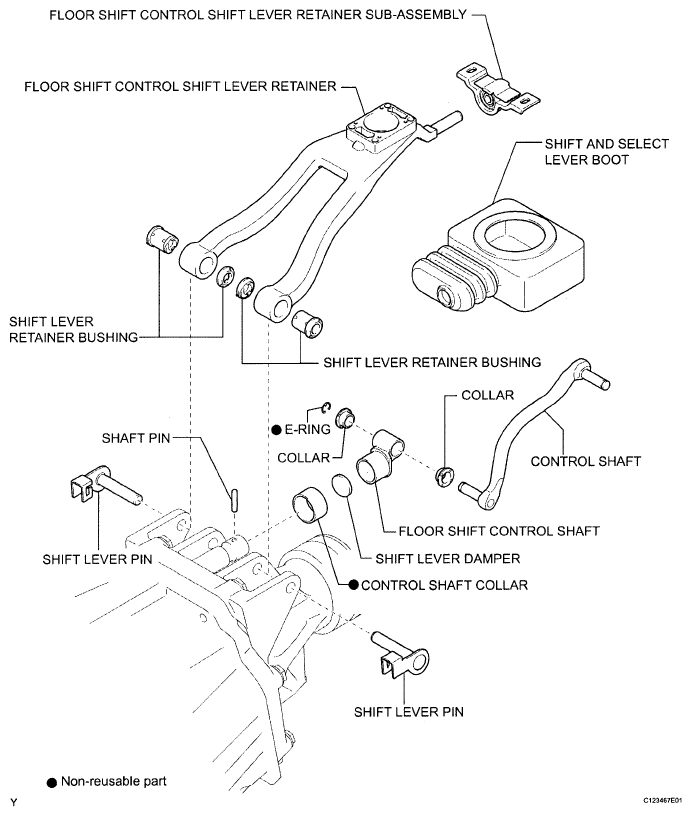

Fig 2: Manual Transmission Unit Components (2 Of 5) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

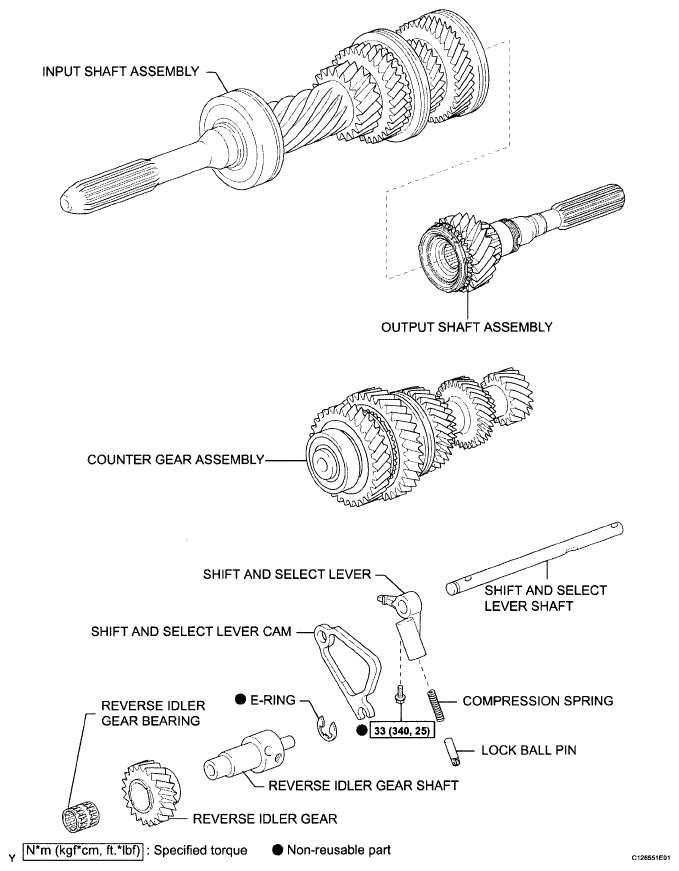

Fig 3: Manual Transmission Unit Components (3 Of 5) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

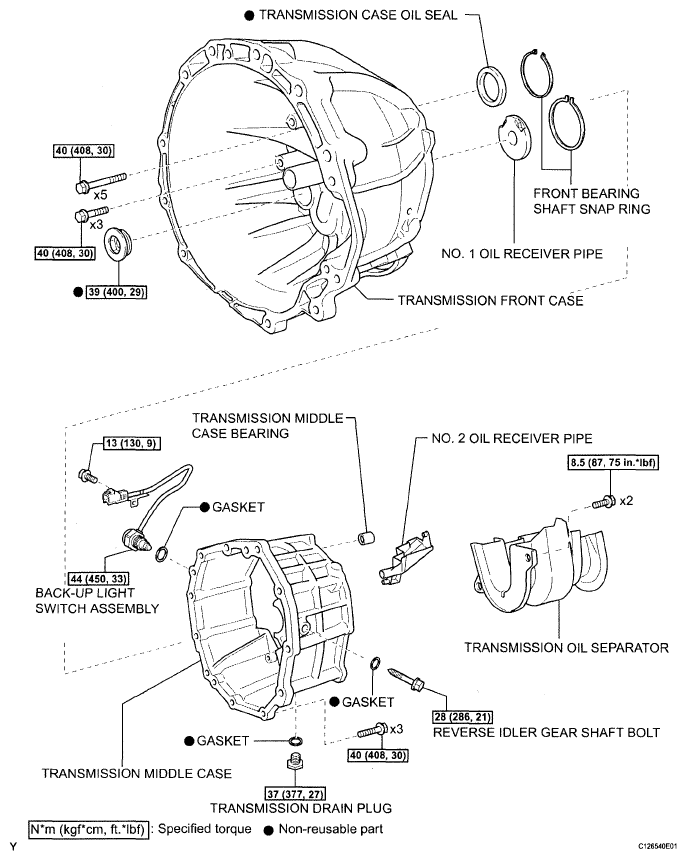

Fig 4: Manual Transmission Unit Components (4 Of 5) with Torque Specifications

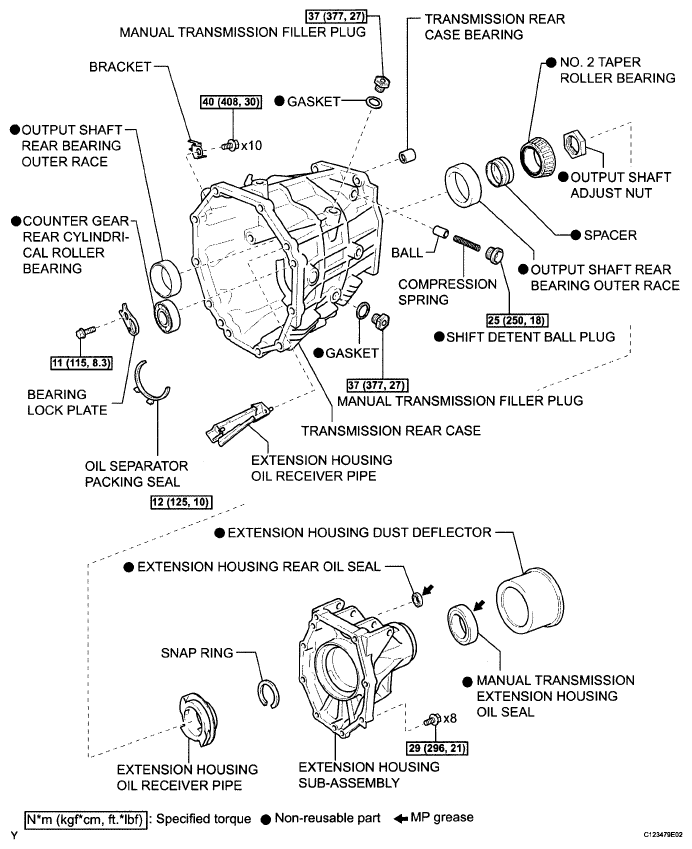

Fig 5: Manual Transmission Unit Components (5 Of 5) with Torque Specifications
