Manual Transmission Assembly: Components

WARNING: This page is about a different variant/trim than selected.

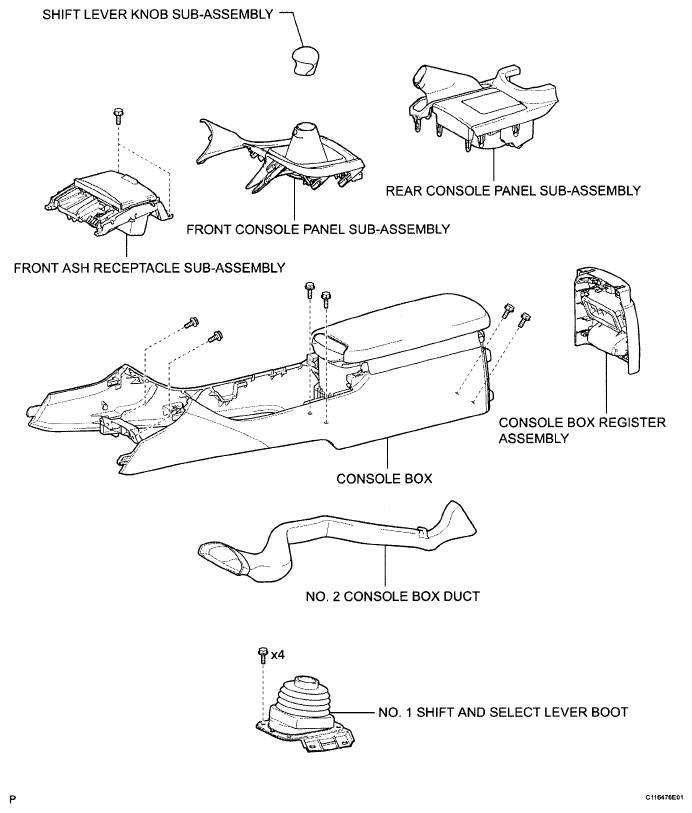

Fig 1: Identifying Manual Transmission Assembly Replacement Components (1 Of 3)
G05824601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Manual Transmission Assembly Replacement Components (2 Of 3) with Torque Specifications
G05824602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

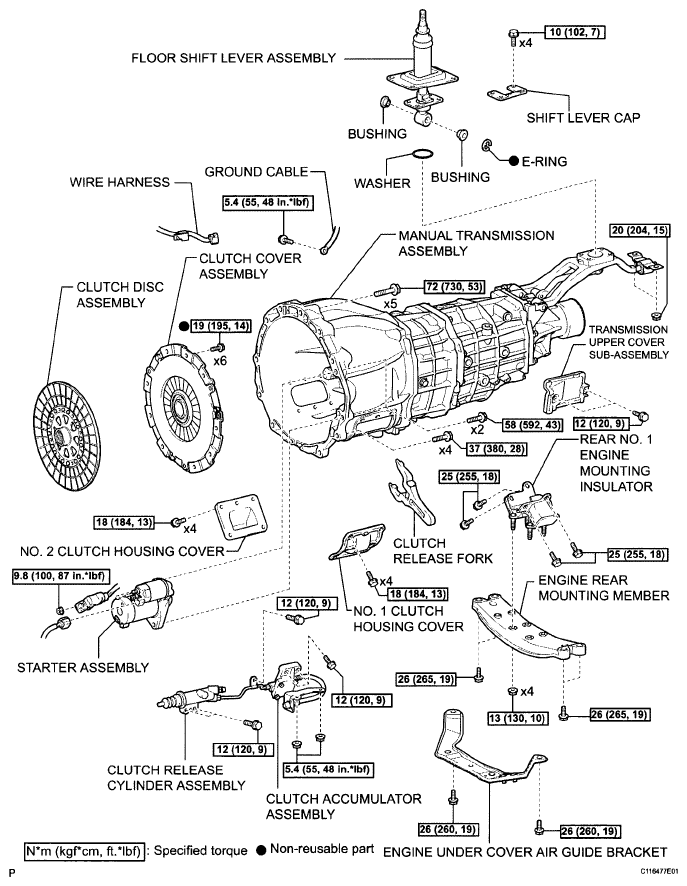

Fig 3: Manual Transmission Assembly Replacement Components (3 Of 3) with Torque Specifications
G05824603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
