Counter Gear And Reverse Idler Gear: Components

WARNING: This page is about a different variant/trim than selected.

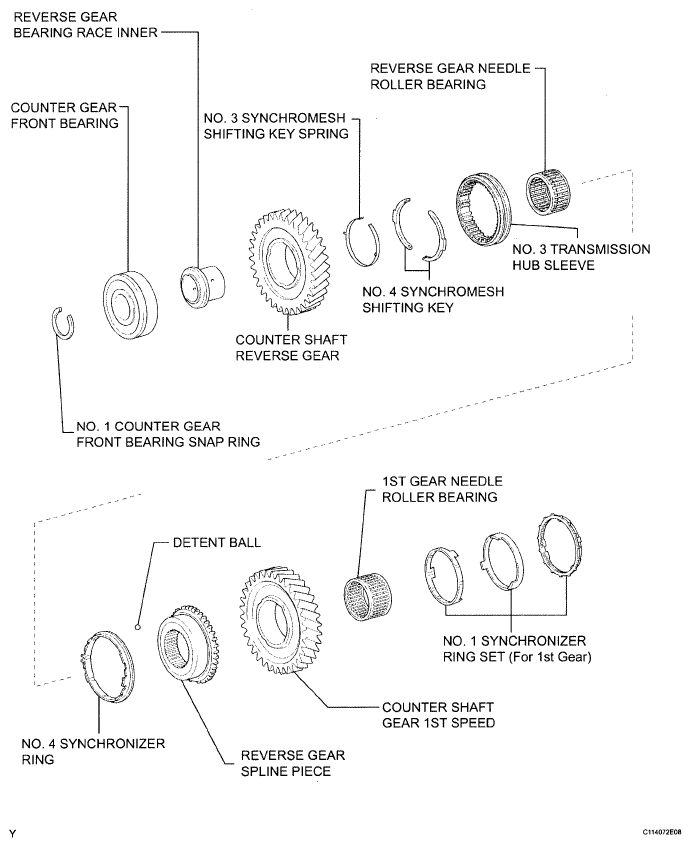

Fig 1: Identifying Counter Gear And Reverse Idler Gear Components (1 Of 2)
G05824838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

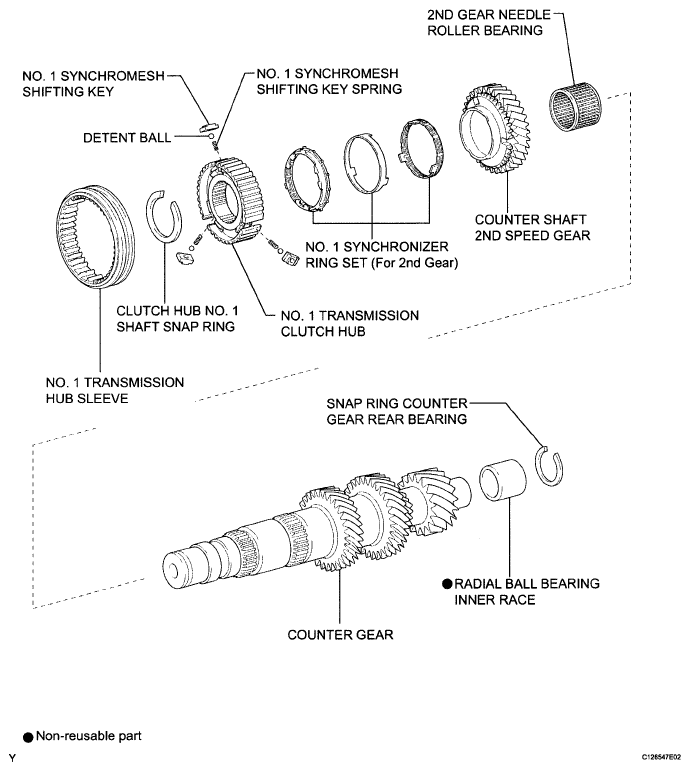

Fig 2: Identifying Counter Gear And Reverse Idler Gear Components (2 Of 2)
G05824839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
