Valve Body Assembly: Components

WARNING: This page is about a different variant/trim than selected.

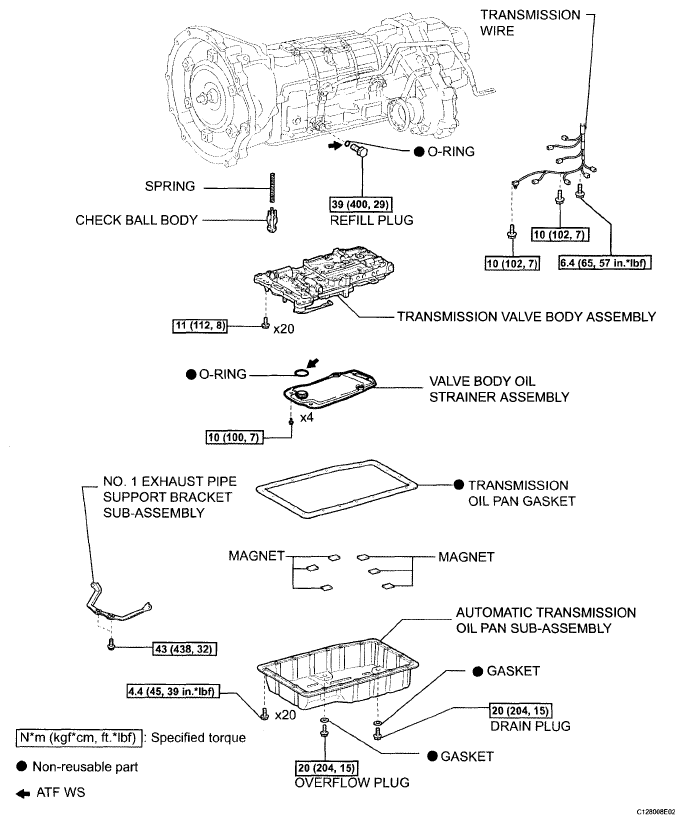

Fig 1: Valve Body Assembly Replacement Components With Torque Specifications (1 Of 2)
G05829704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Shift Solenoid Valve Replacement Components With Torque Specifications (2 Of 2)
G05318198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
