Section 1 (A760H Automatic Transaxle)
>>
Automatic Transmission Unit
>>
Components
Automatic Transmission Unit: Components
WARNING:
This page is about a different variant/trim than selected.

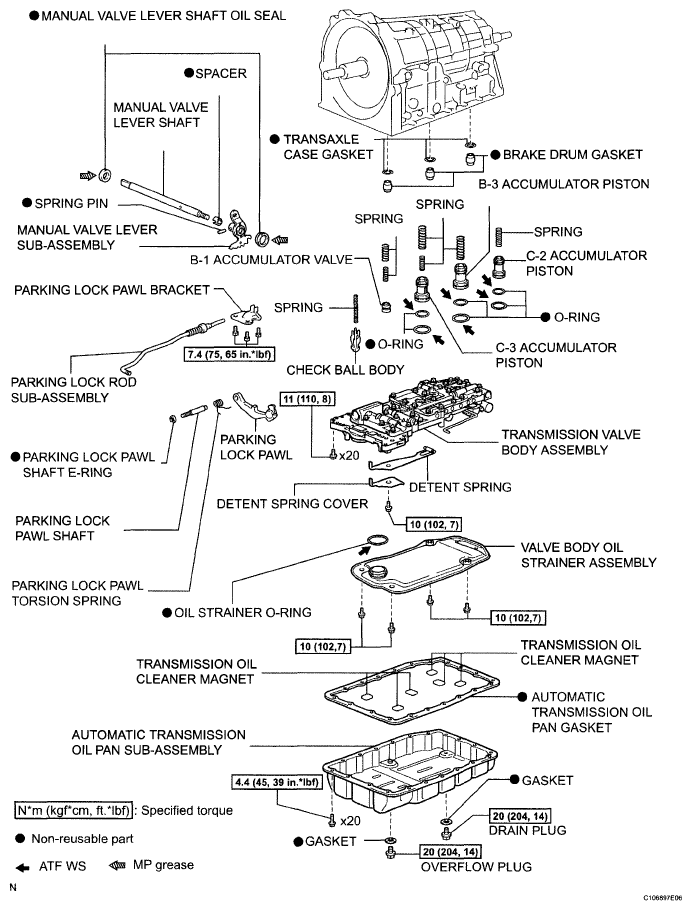

Fig 1: Automatic Transmission Unit Components And Torque Specifications (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

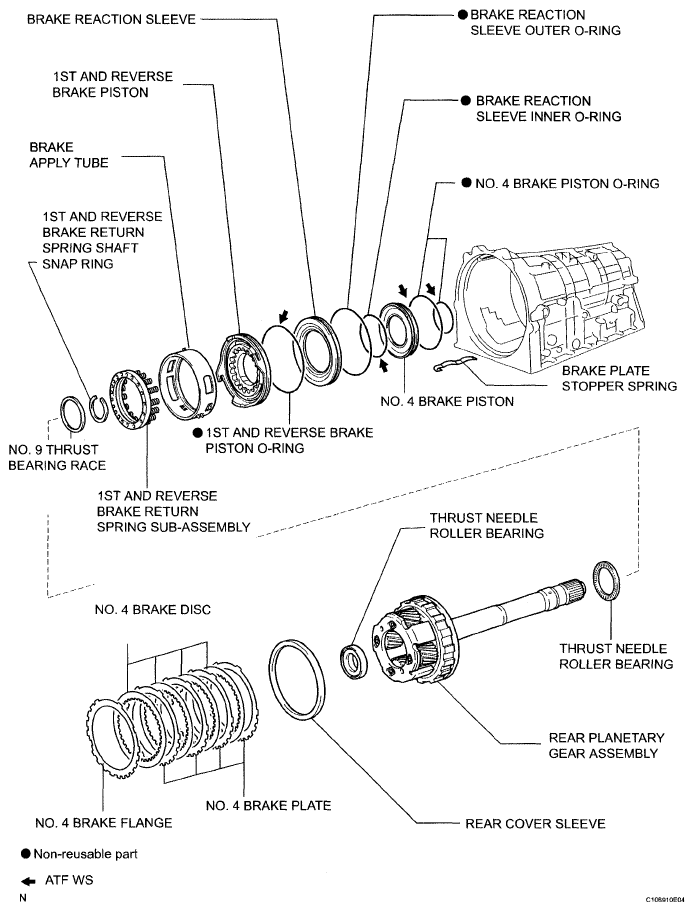

Fig 2: Automatic Transmission Unit Components And Torque Specifications (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

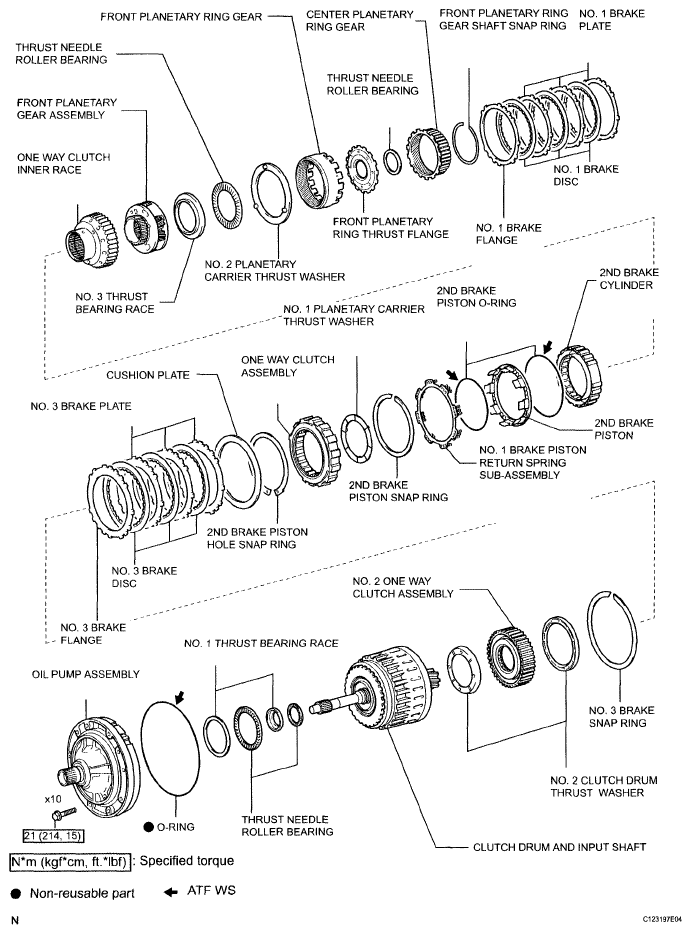

Fig 3: Automatic Transmission Unit Components And Torque Specifications (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

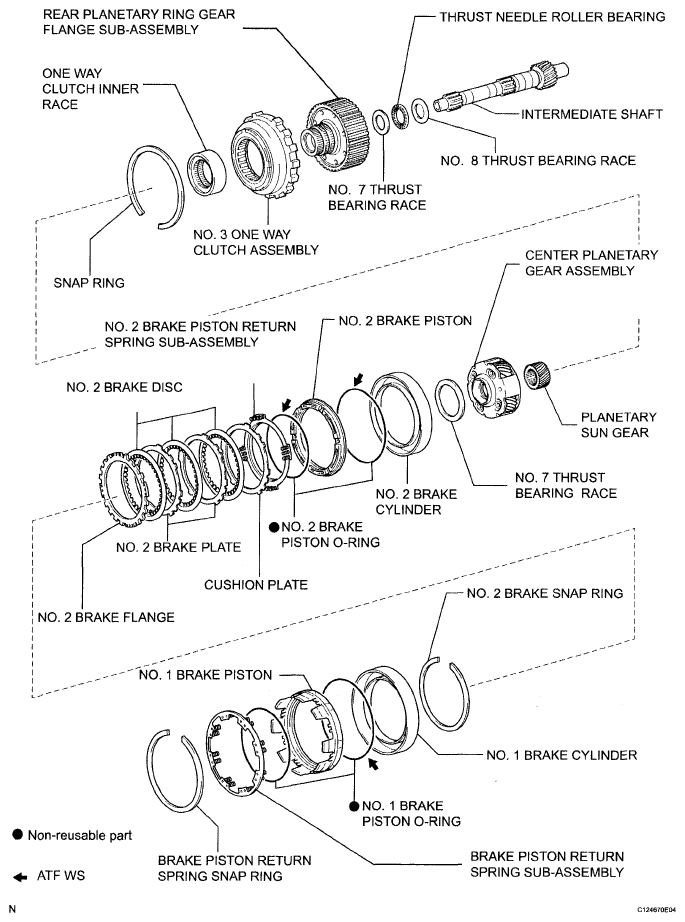

Fig 4: Identifying Automatic Transmission Unit Components (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

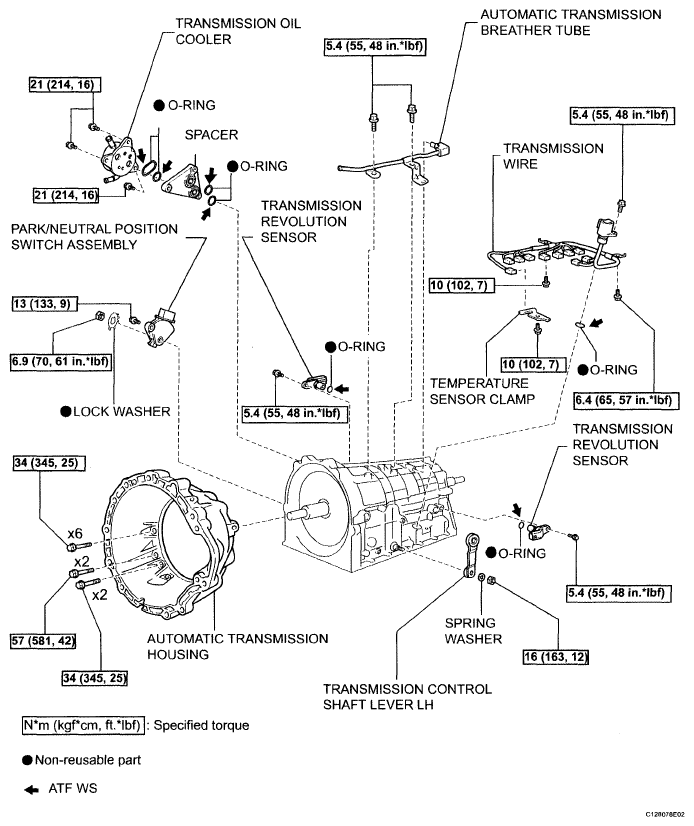

Fig 5: Identifying Automatic Transmission Unit Components (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
