System Diagram

WARNING: This page is about a different variant/trim than selected.

The configuration of the electronic control system in the A760H automatic transmission is as shown in the following chart.

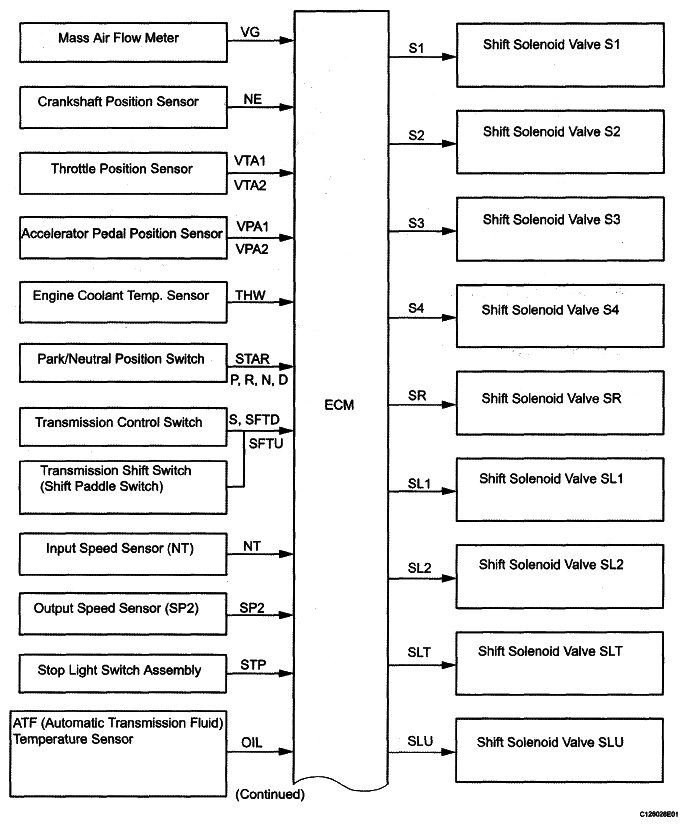

Fig 1: Automatic Transmission System - System Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

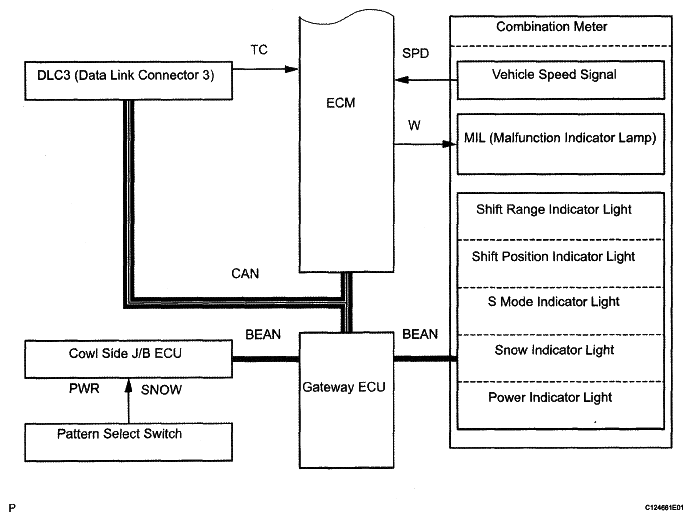

Fig 2: Automatic Transmission System - System Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

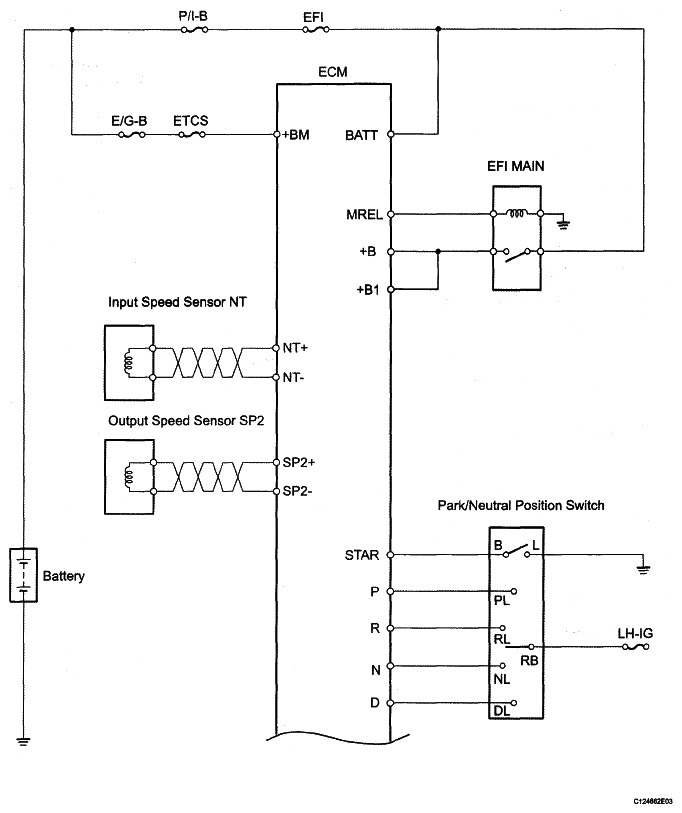

Fig 3: Automatic Transmission System - Circuit Diagram (1 Of 2)

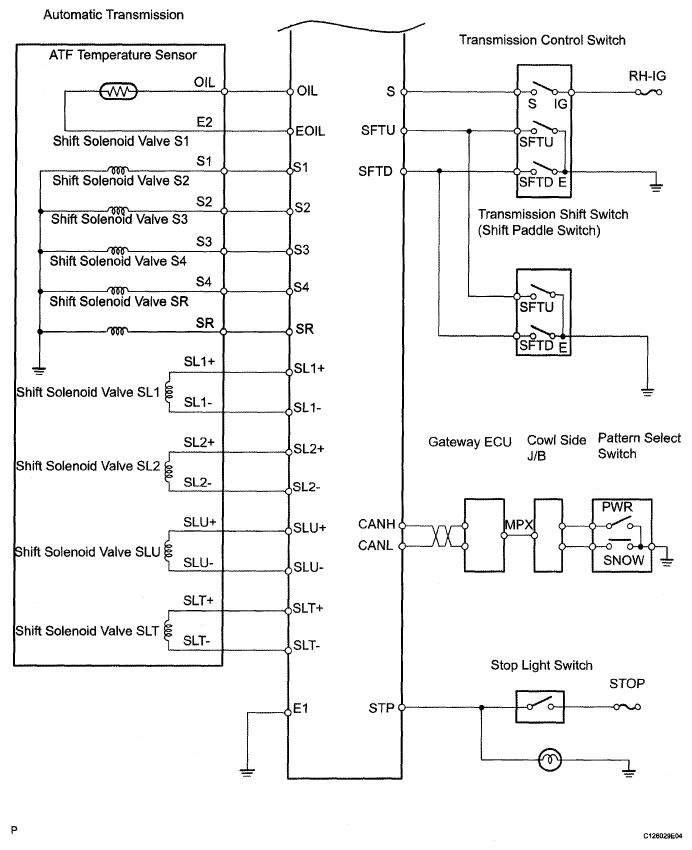

Fig 4: Automatic Transmission System - Circuit Diagram (2 Of 2)
