Parts Location

WARNING: This page is about a different variant/trim than selected.

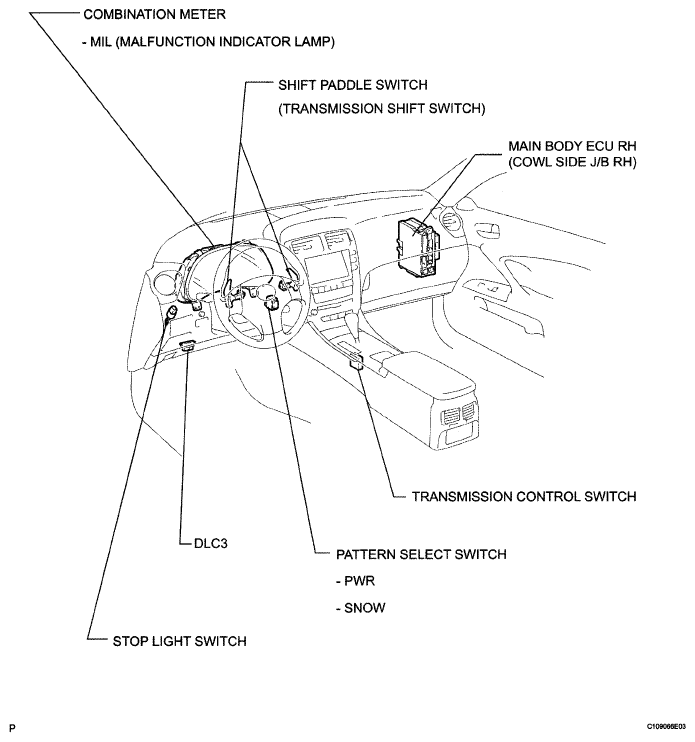

Fig 1: Identifying Automatic Transmission System Parts Location (1 Of 2)
G05317417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

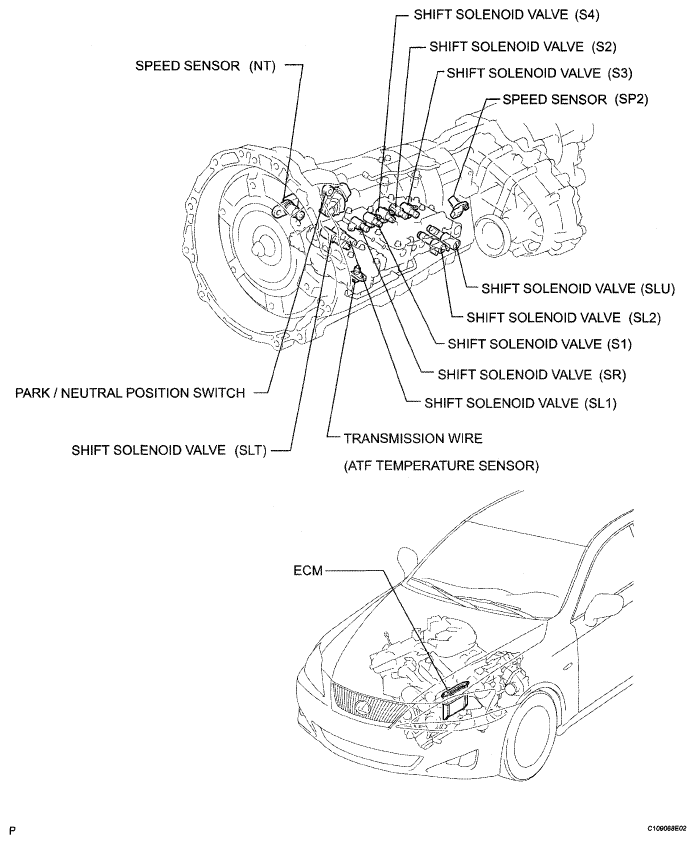

Fig 2: Identifying Automatic Transmission System Parts Location (2 Of 2)
G05317418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
