How To Determine Bolt Strength

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

Bolt Type

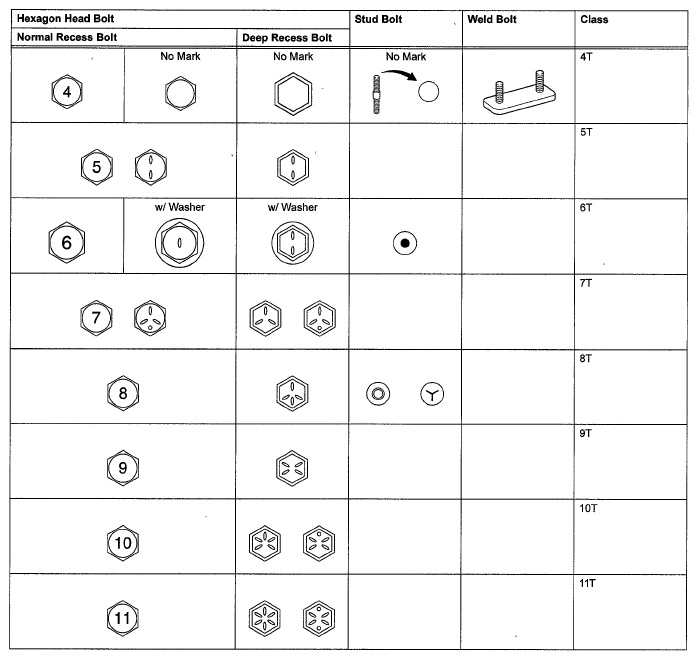

Fig 1: Bolts Specification Chart
G05749365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
