On-Vehicle Inspection
WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT REAR DOOR PANEL SUB-ASSEMBLY

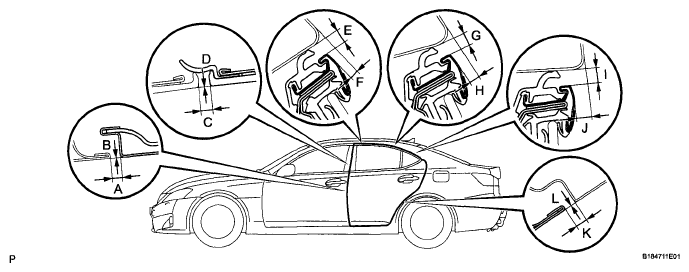

- Check that the clearance measurements of areas A to L are within each standard range.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard Clearance
STANDARD CLEARANCE CHARTArea Measurement Area Measurement A 2.5 to 5.5 mm (0.0984 to 0.217 in.) G 3.3 to 6.3 mm (0.130 to 0.248 in.) B -1.5 to 1 5 mm (-0.0591 to 0.0591 in.) H 1.8 to 4.8 mm (0.0709 to 0.189 in) C 2.8 to 5.8 mm (0.110 to 0.228 in.) I 3.3 to 6.3 mm (0.130 to 0.248 in.) D -1 5 to 1.5 mm (-0.0591 to 0.0591 in.) J 3.8 to 6.8 mm (0.150 to 0.268 in) E 3 3 to 6.3 mm (0.130 to 0.248 in.) K 2.5 to 5.5 mm (0.0984 to 0.217 in.) F 1.2 to 4.2 mm (0.0472 to 0.165 in.) L -1.5 to 1.5 mm (-0.0591 to 0.0591 in.)
- Check that the clearance measurements of areas A to L are within each standard range.
