On-Vehicle Inspection
WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSEMBLY

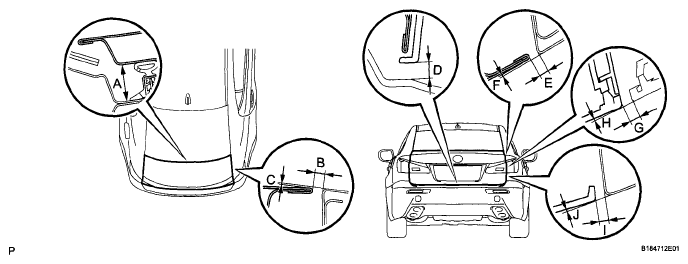

- Check that the clearance measurements of areas A to J are within each standard range.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard Clearance
STANDARD CLEARANCE CHARTArea Measurement Area Measurement A 21.7 to 24.7 mm (0.854 to 0.972 in.) F -0.9 to 2.1 mm (-0.0354 to 0 0827 in.) B 2.0 to 5.0 mm (0.0787 to 0.197 in.) G 2.5 to 5.5 mm (0.0984 to 0.217 in.) C -1.1 to 1.9 mm (-0.0433 to 0.0748 in.) H -1.9 to 2.1 mm (-0.0748 to 0.0827 in.) D 4.0 to 8.0 mm (0.158 to 0.315 in.) I 3.8 mm (0.150 in.) E 2.0 to 5.0 mm (0.0787 to 0.197 in.) J 0.3 mm (0.0118 in)
- Check that the clearance measurements of areas A to J are within each standard range.
