Luggage Compartment Door: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

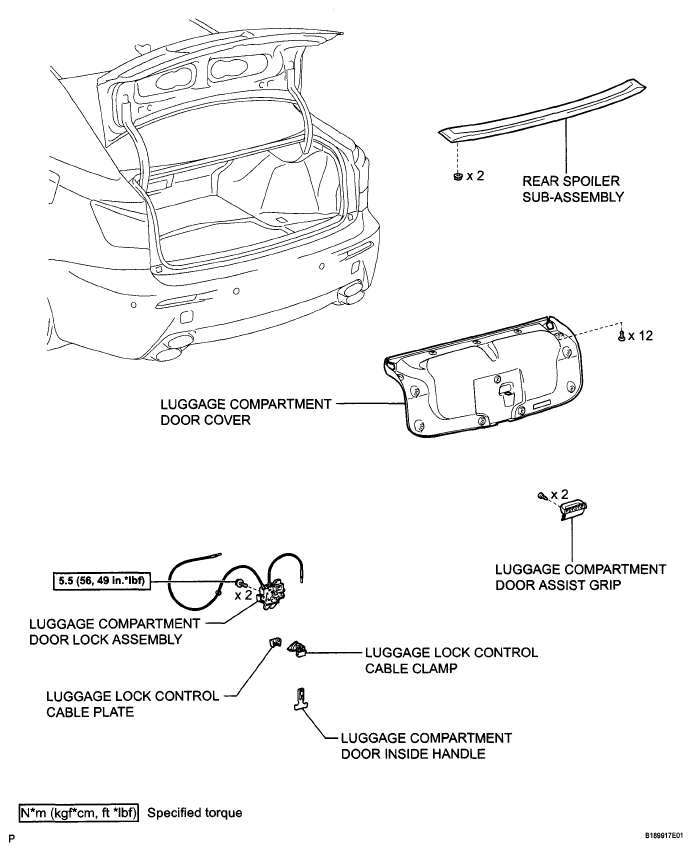

Fig 1: Luggage Compartment Door Replacement Components With Torque Specifications (1 Of 2)
G05756133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

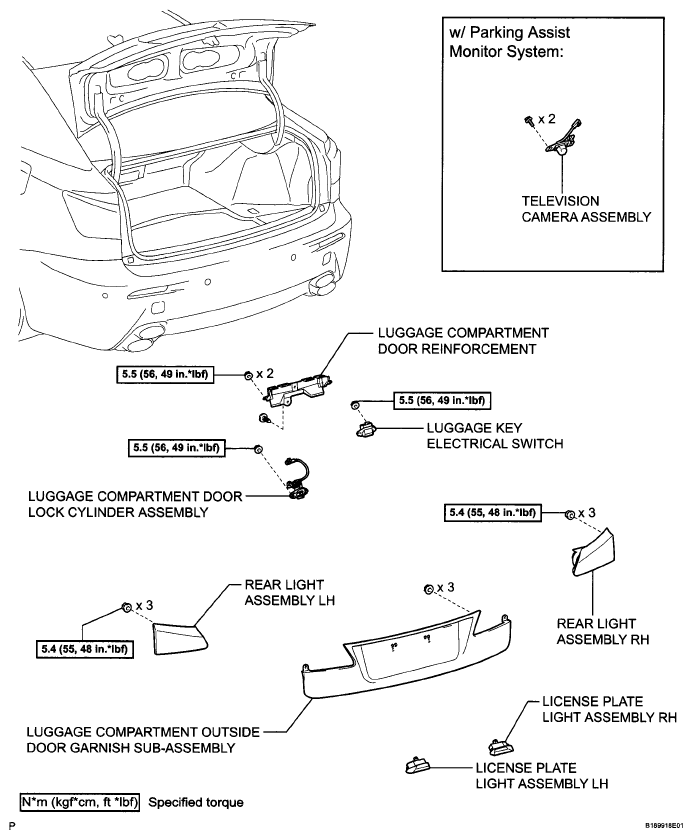

Fig 2: Luggage Compartment Door Replacement Components With Torque Specifications (2 Of 2)
G05756134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
