On-Vehicle Inspection
WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT FRONT DOOR PANEL SUB-ASSEMBLY

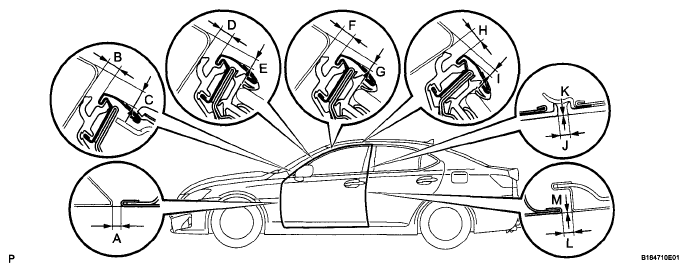

- Check that the clearance measurements of areas A to M are within each standard range.
Standard Clearance
STANDARD CLEARANCE CHARTArea Measurement Area Measurement A 2.5 to 5.5 mm (0.0984 to 0.217 in.) H 3.3 to 6.3 mm (0.130 to 0.248 in.) B 3.3 to 6.3 mm (0.130 to 0 248 in.) I 1.2 to 4.2 mm (0.0472 to 0 165 In.) C 5.4 to 8.4 mm (0.213 to 0.331 in.) J 2.8 to 5.8 mm (0.110 to 0.228 In.) D 3.3 to 6.3 mm (0.130 to 0.248 in.) K -1.5 to 1.5 mm (-0.0591 to 0.0591 in.) E 1.7 to 4.7 mm (0.0669 to 0.185 in.) L 2.5 to 5.5 mm (0.0984 to 0.217 in.) F 3.3 to 6.3 mm (0 130 to 0.248 in.) M -1.5 to 1.5 mm (-0 0591 to 0.0591 in.) G 0.9 to 3.9 mm (0.0354 to 0.154 in.) - -
- Check that the clearance measurements of areas A to M are within each standard range.
