Section 60 (Starting (2GR-FSE)): Starter: Removal

WARNING: This page is about a different car, the 2008 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE COOL AIR INTAKE DUCT SEAL (See REMOVAL )
REMOVE ENGINE ROOM SIDE COVER LH (See REMOVAL )
REMOVE REAR NO. 1 FLOOR PANEL BRACE (See REMOVAL )
REMOVE FRONT CENTER FLOOR BRACE (See REMOVAL )
DISCONNECT HEATED OXYGEN SENSOR (See REMOVAL )
REMOVE FRONT EXHAUST PIPE ASSEMBLY (See REMOVAL )
REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH
1. Remove the 2 bolts and ground cable.
2. Remove the bolt and engine wire bracket.

  Fig 1: Locating Ground Cable Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the bolt and nut, and separate the engine room No. 3 relay block.

  Fig 2: Locating Engine Room No. 3 Relay Block Nut And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the air fuel ratio sensor (for sensor 1) connector.

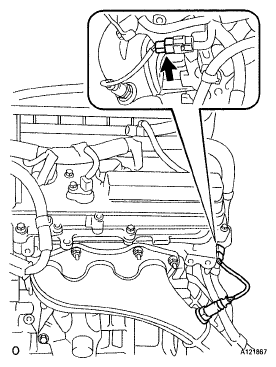

  Fig 3: Locating Air Fuel Ratio Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 6 nuts, exhaust manifold and gasket.

  Fig 4: Locating Exhaust Manifold Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STARTER ASSEMBLY
1. Disconnect the terminal 50 connector from the starter assembly.
2. Detach the terminal cap.
3. Remove the nut and disconnect the wire harness from terminal 30.
4. Remove the 2 bolts and starter.

  Fig 5: Locating Starter Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
