Section 60 (Starting (2GR-FSE)): Starter: Components

WARNING: This page is about a different car, the 2008 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

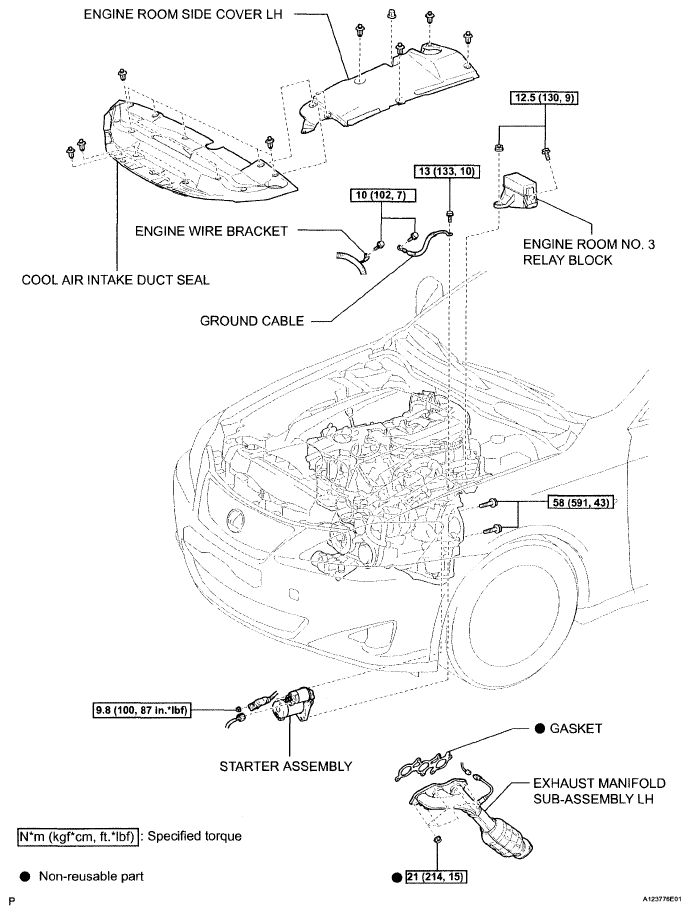

Fig 1: Identifying Starter Replacement Components With Torque Specification (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

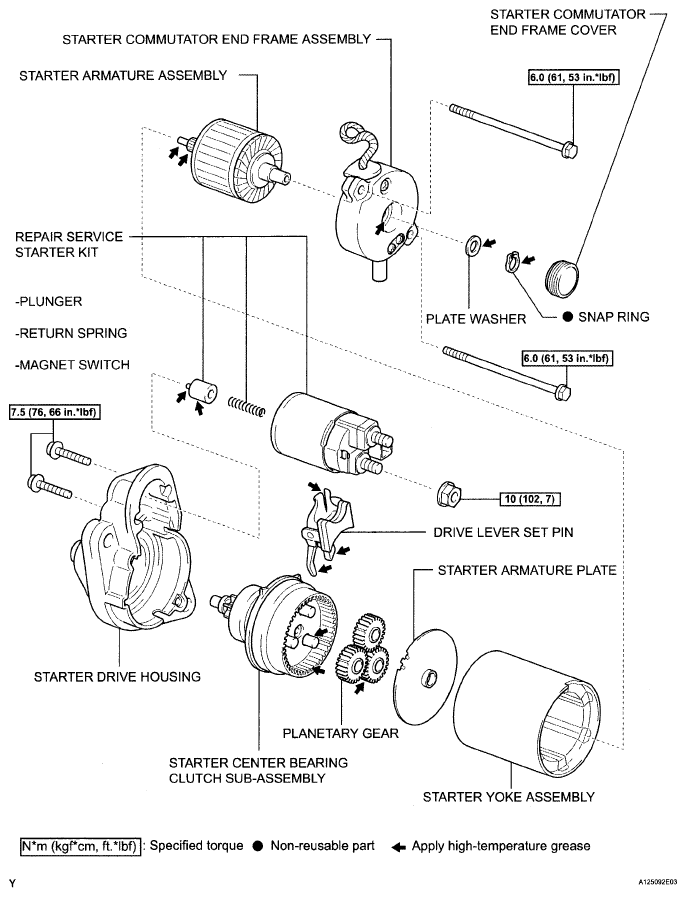

Fig 2: Identifying Starter Replacement Components With Torque Specification (2 Of 3)

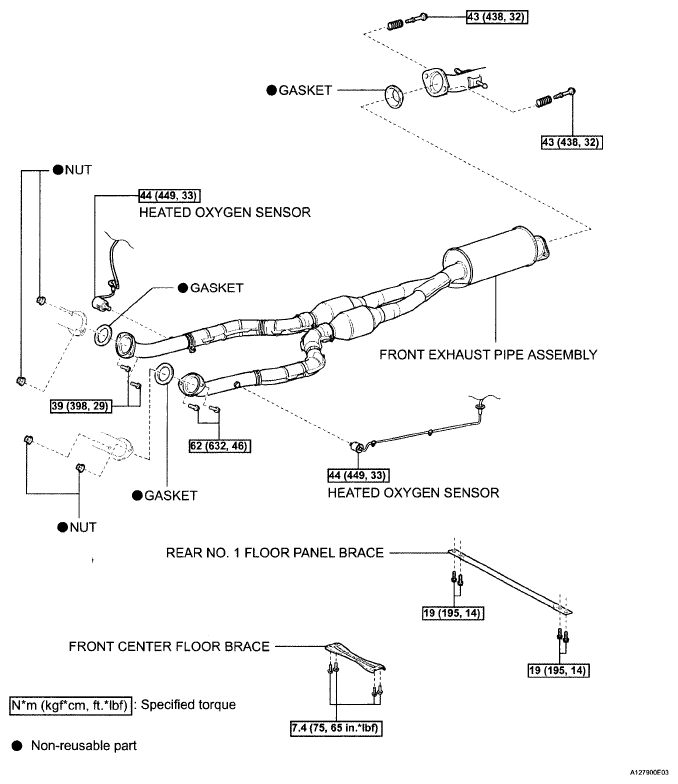

Fig 3: Identifying Starter Replacement Components With Torque Specification (3 Of 3)
