DTC B2275 STSW Monitor Malfunction: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

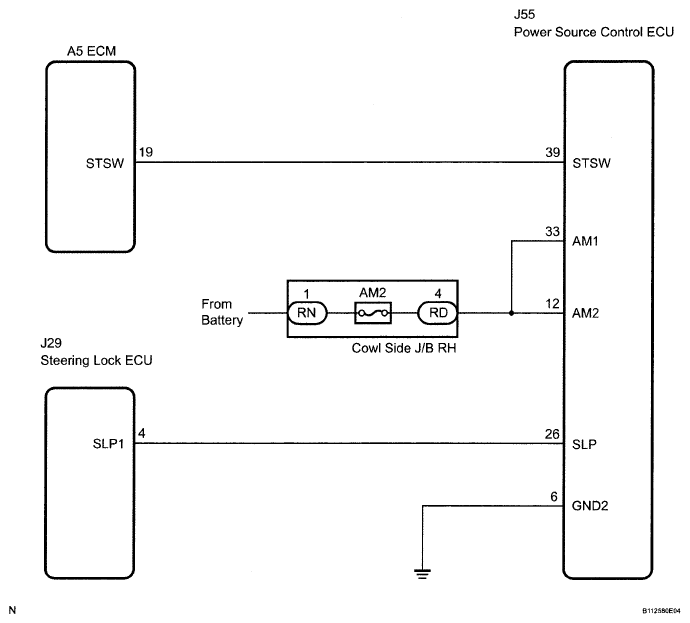

Fig 1: STSW Monitor Malfunction - Wiring Diagram
G05829093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
