DOOR CONTROL RECEIVER (for Rear Side): Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Door Control Receiver Replacement Components With Torque Specification (For Rear Side) (1 Of 2)
G05754305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

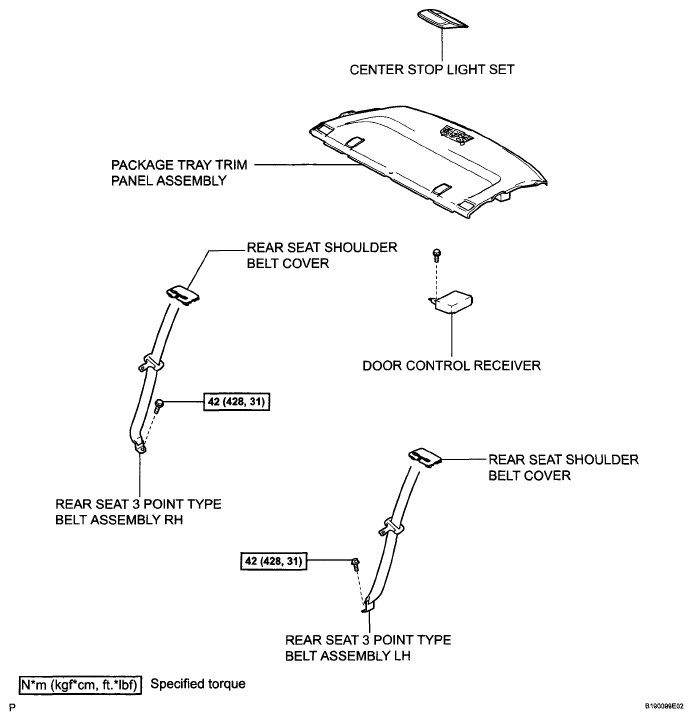

Fig 2: Door Control Receiver Replacement Components With Torque Specifications (For Rear Side) (2 Of 2)
G05754306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
