Injector Driver: Components

WARNING: This page is about a different car, the 2008 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Injector Driver Replacement Components (1 Of 2) with Torque Specifications
G05826372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

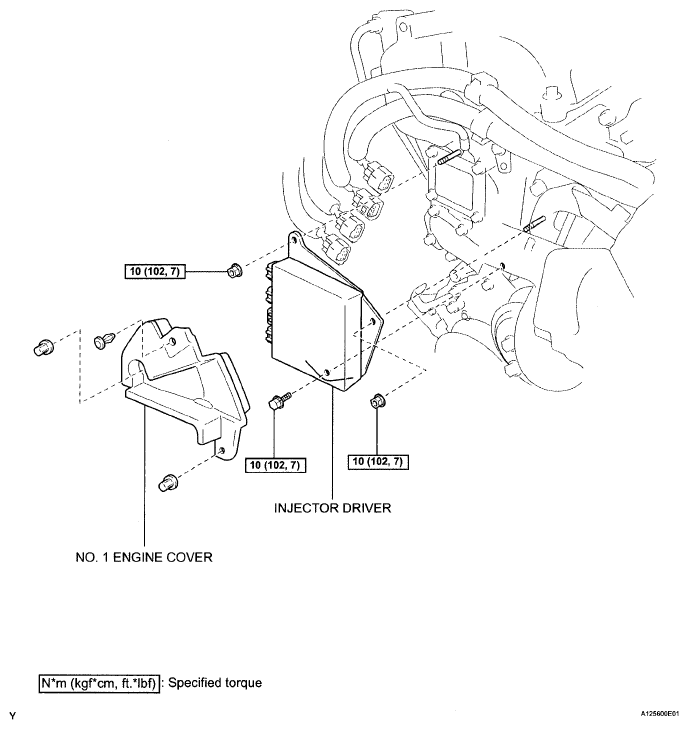

Fig 2: Injector Driver Replacement Components (2 Of 2) with Torque Specifications
G05826373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
