System Diagram

WARNING: This page is about a different car, the 2008 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

FUEL FLOW DIAGRAM

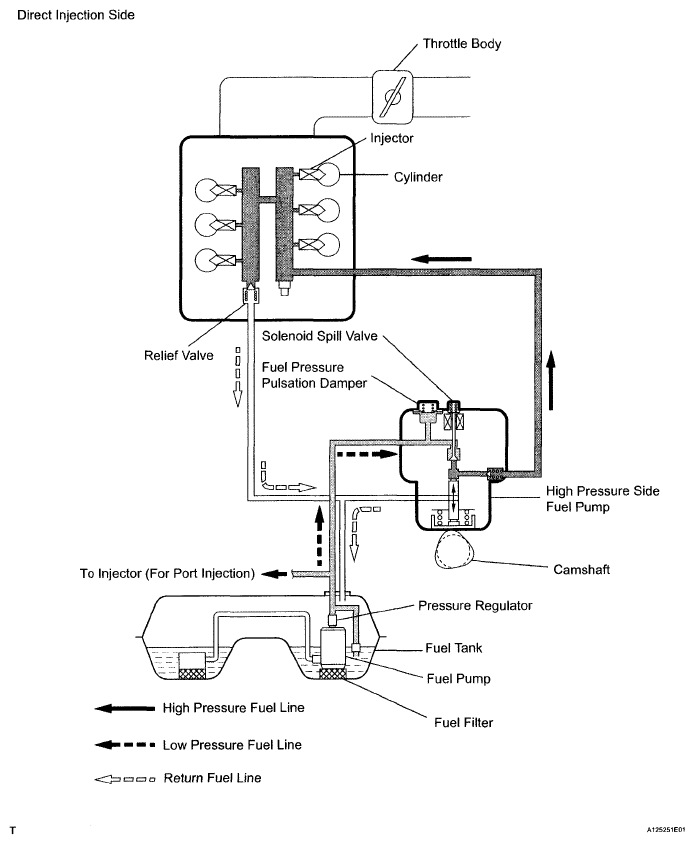

Fig 1: Fuel Flow Diagram - Direct Injection Side
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

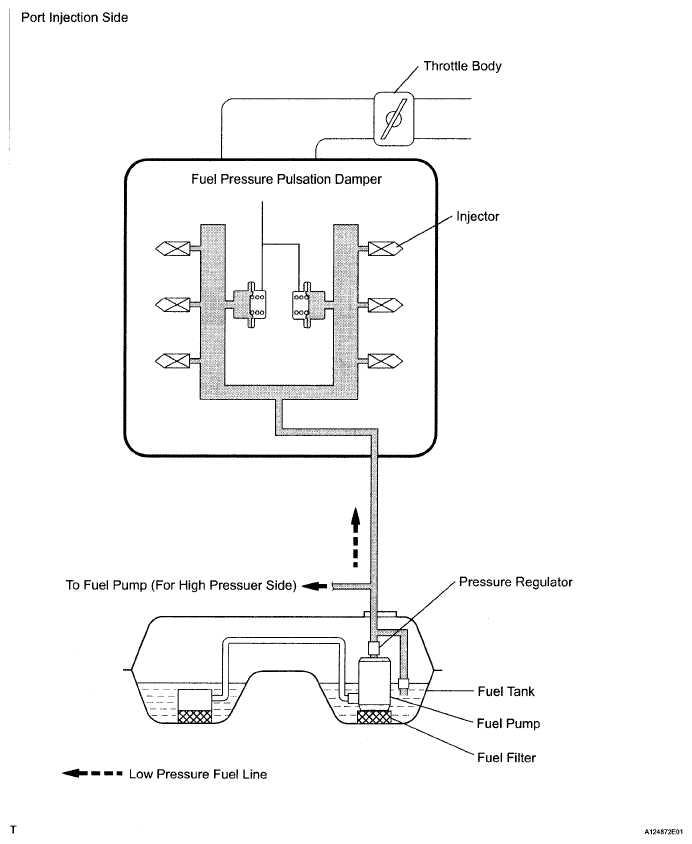

Fig 2: Fuel Flow Diagram - Port Injection Side
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ELECTRICAL CONTROL DIAGRAM

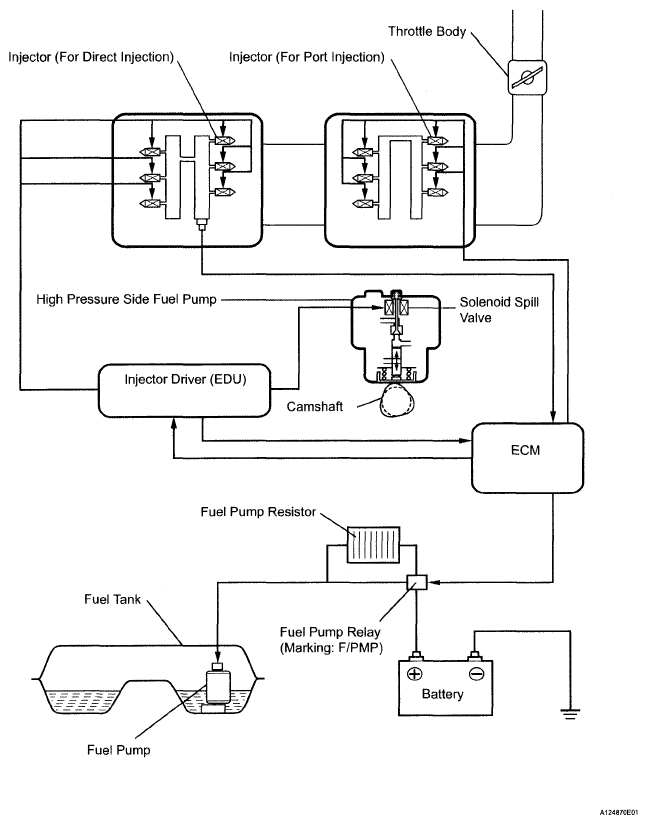

Fig 3: Electrical Control Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HIGH PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM

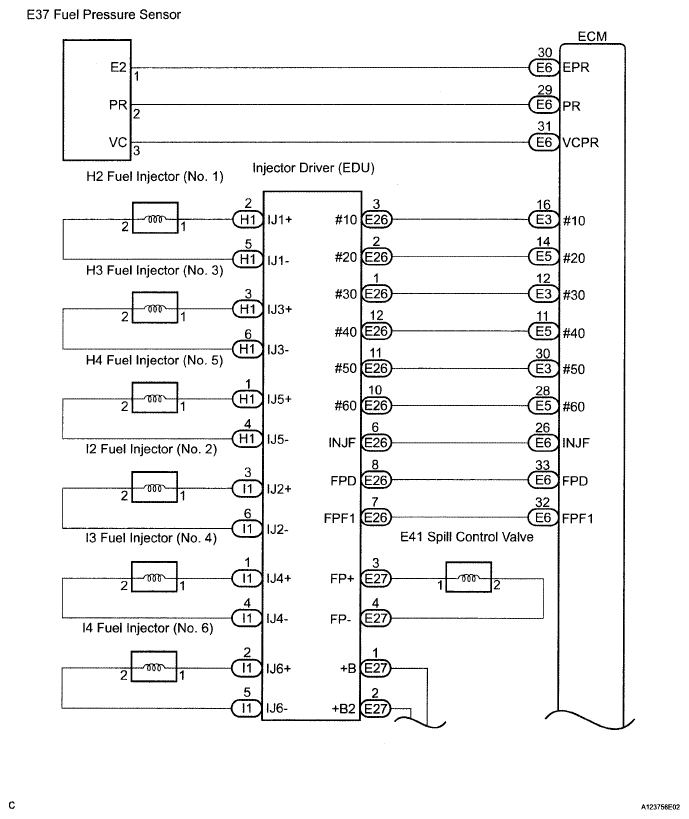

Fig 4: High Pressure Side Fuel System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: High Pressure Side Fuel System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
LOW PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM

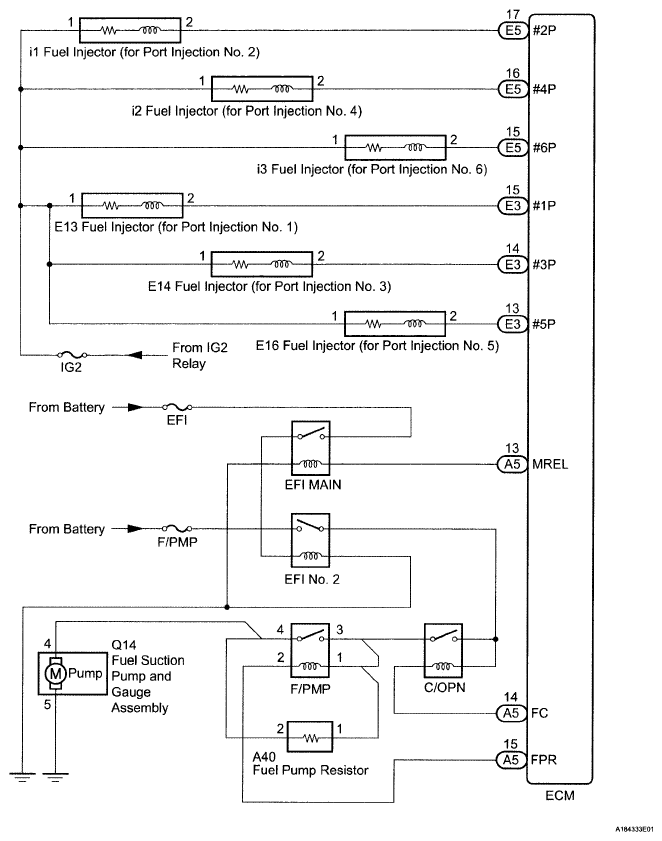

Fig 6: Low Pressure Side Fuel System Wiring Diagram
