Fuel Pump: Components

WARNING: This page is about a different car, the 2008 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

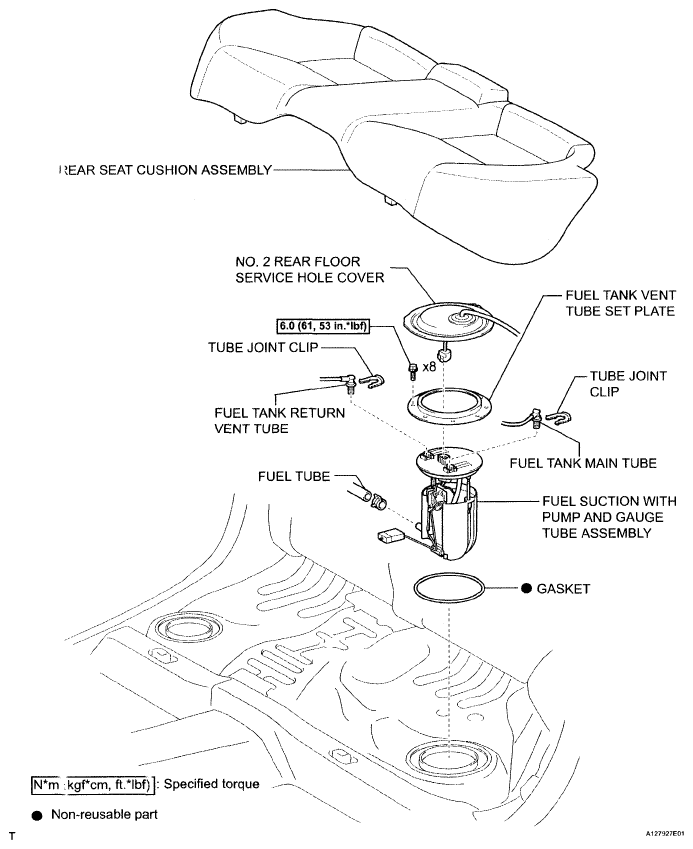

Fig 1: Fuel Pump Replacement Components (1 Of 2) with Torque Specifications
G05826378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

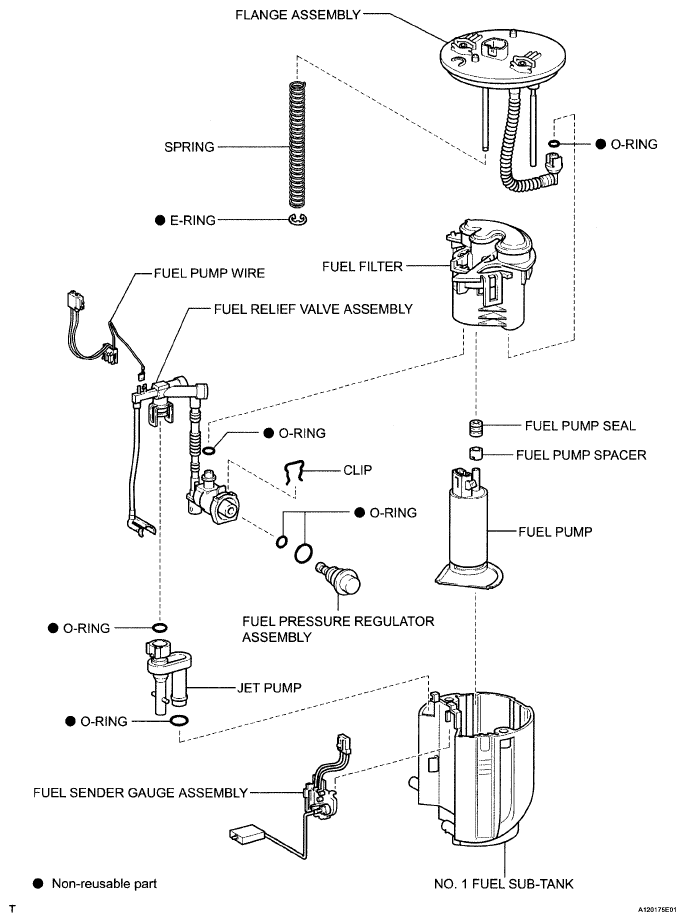

Fig 2: Identifying Fuel Pump Components (2 Of 2)
G05826379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
