Fuel Pump Resistor: Components

WARNING: This page is about a different car, the 2008 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Fuel Pump Resistor Replacement Components (1 Of 2)
G05826429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

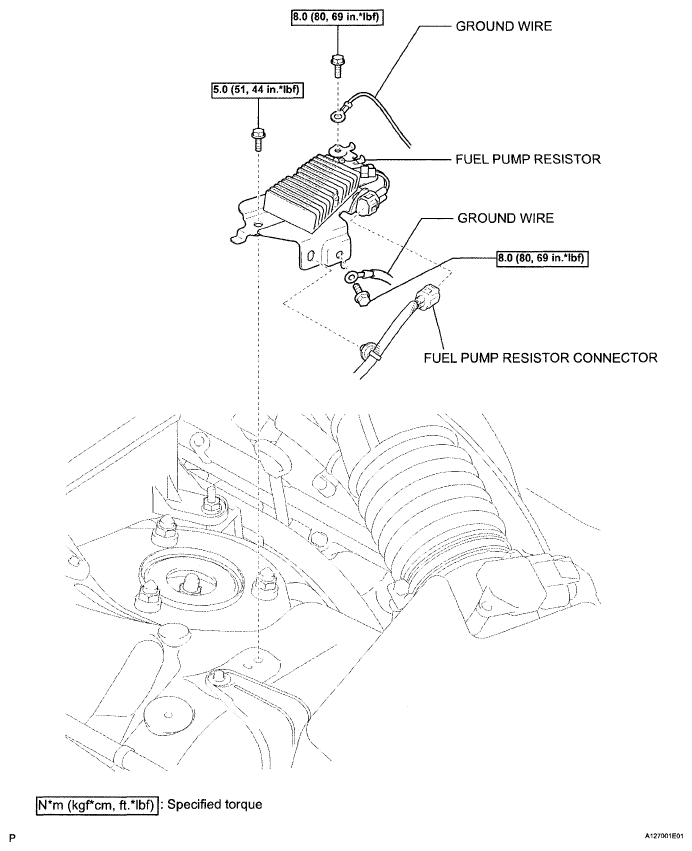

Fig 2: Fuel Pump Resistor Replacement Components (2 Of 2) with Torque Specifications
G05826430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
