Fuel Pressure Sensor: Components

WARNING: This page is about a different car, the 2008 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

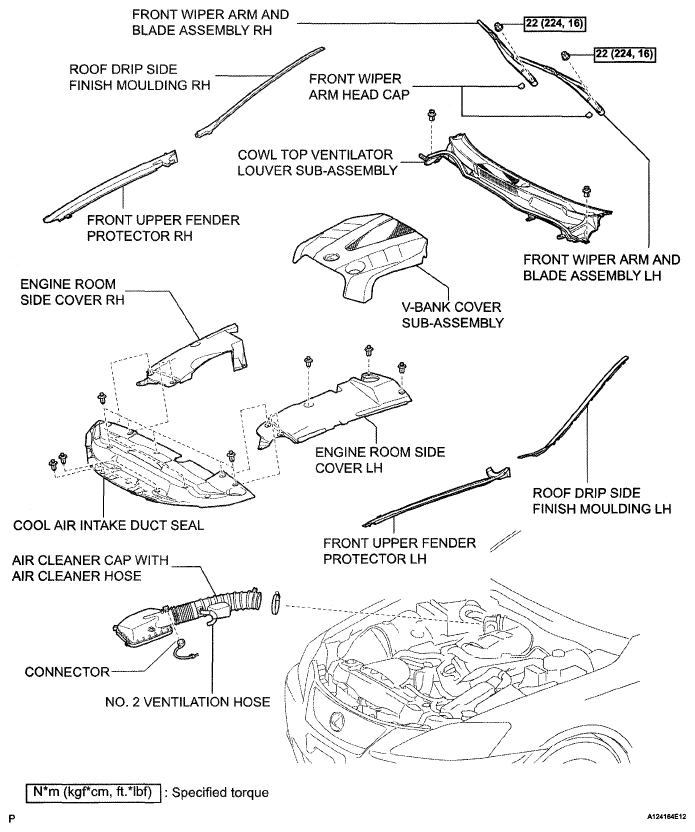

Fig 1: Identifying Fuel Pressure Sensor Replacement Components (1 Of 3) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

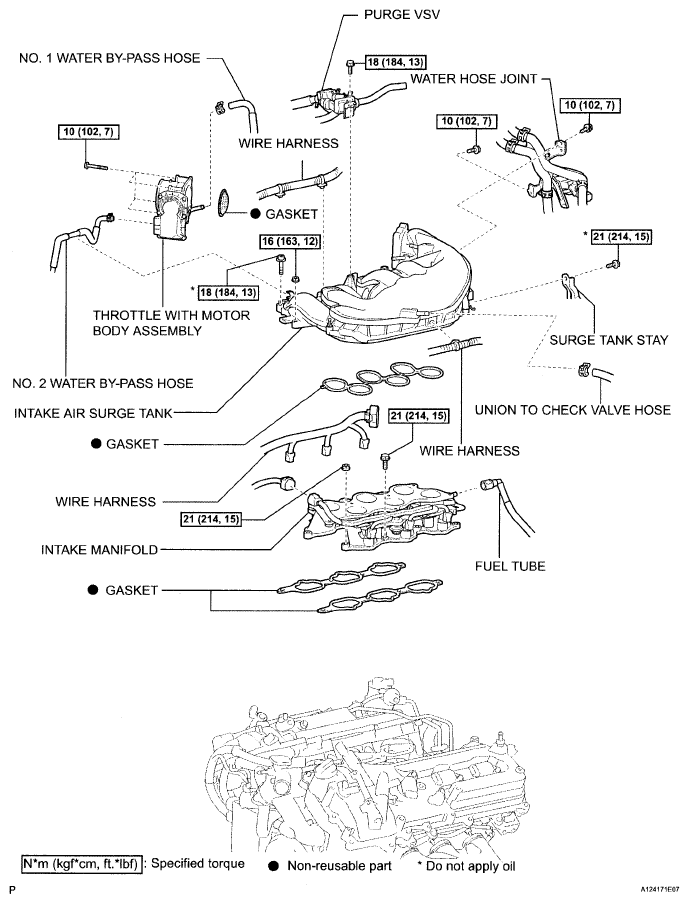

Fig 2: Fuel Pump (For High Pressure) Replacement Components (2 Of 3) with Torque Specifications

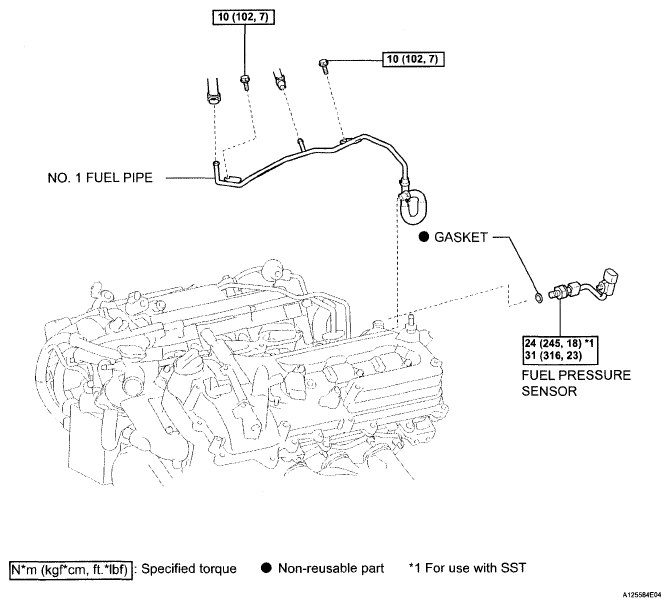

Fig 3: Fuel Pressure Sensor Replacement Components (3 Of 3) with Torque Specifications
