Fuel Injector (For Direct Injection), Intake Manifold: Components

WARNING: This page is about a different car, the 2008 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

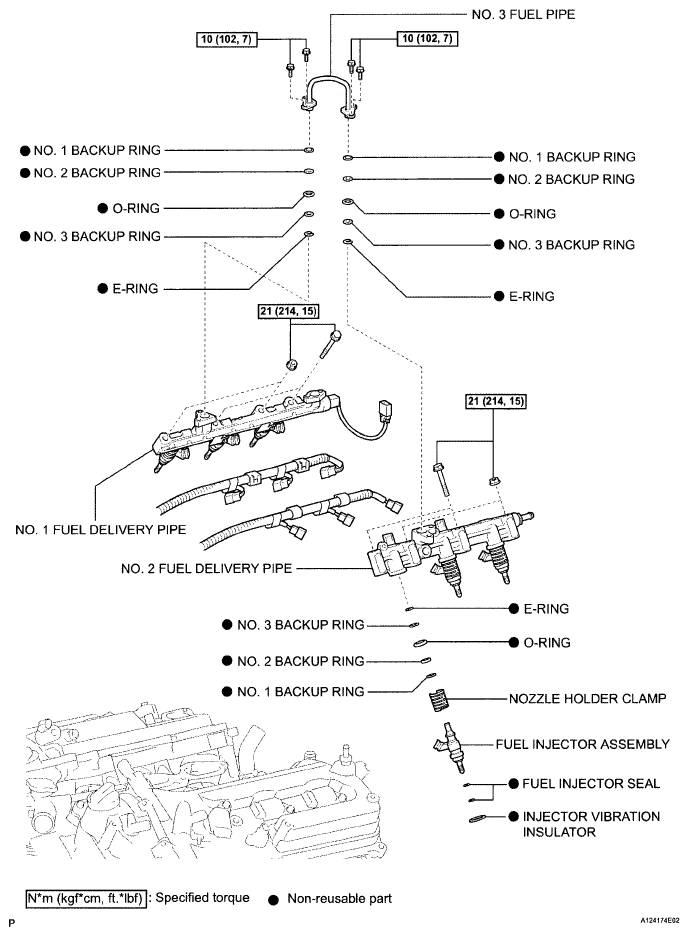

Fig 1: Identifying Fuel Injector (For Direct Injection) Replacement Components (1 Of 4) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

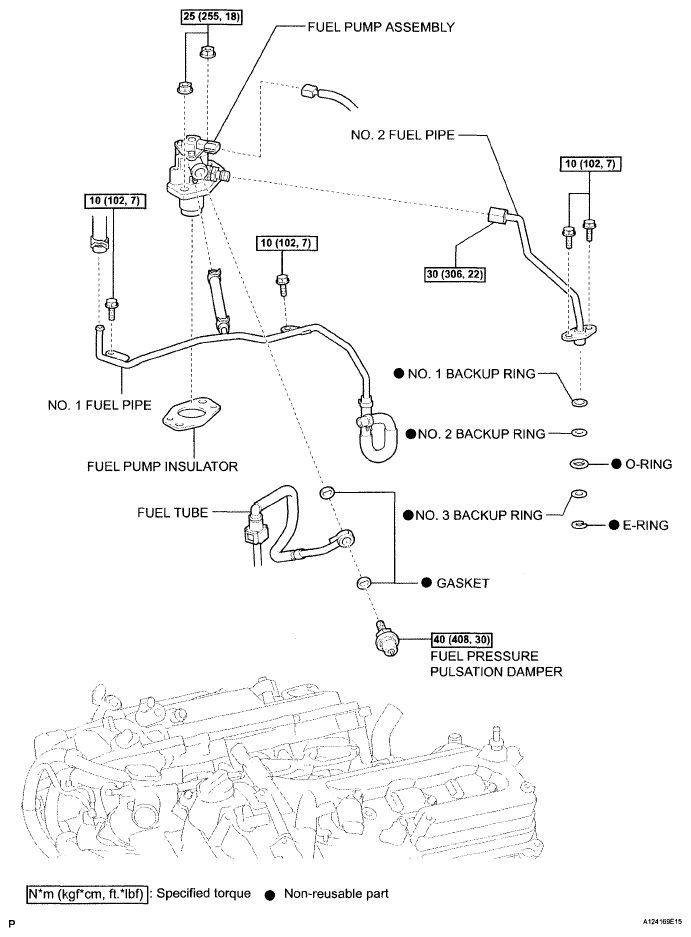

Fig 2: Fuel Pump (For High Pressure) Replacement Components (2 Of 3) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Fuel Injector (For Direct Injection) Replacement Components (3 Of 4) with Torque Specifications

Fig 4: Fuel Injector (For Direct Injection) Replacement Components (4 Of 4) with Torque Specifications
