FUEL INJECTOR (for Port Injection): Components

WARNING: This page is about a different car, the 2008 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Fuel Injector (For Port Injection) Replacement Components (1 Of 2) with Torque Specifications
G05316200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

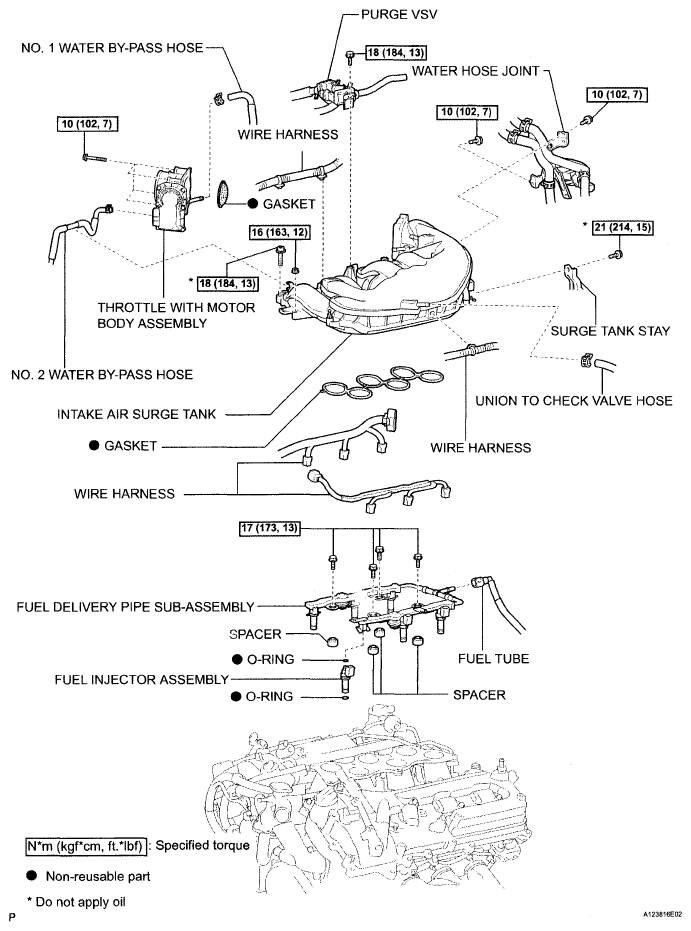

Fig 2: Fuel Injector (For Port Injection) Components (2 Of 2) with Torque Specifications
G05826278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
