AIR FUEL RATIO SENSOR (for Sensor 1): Components

WARNING: This page is about a different car, the 2008 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

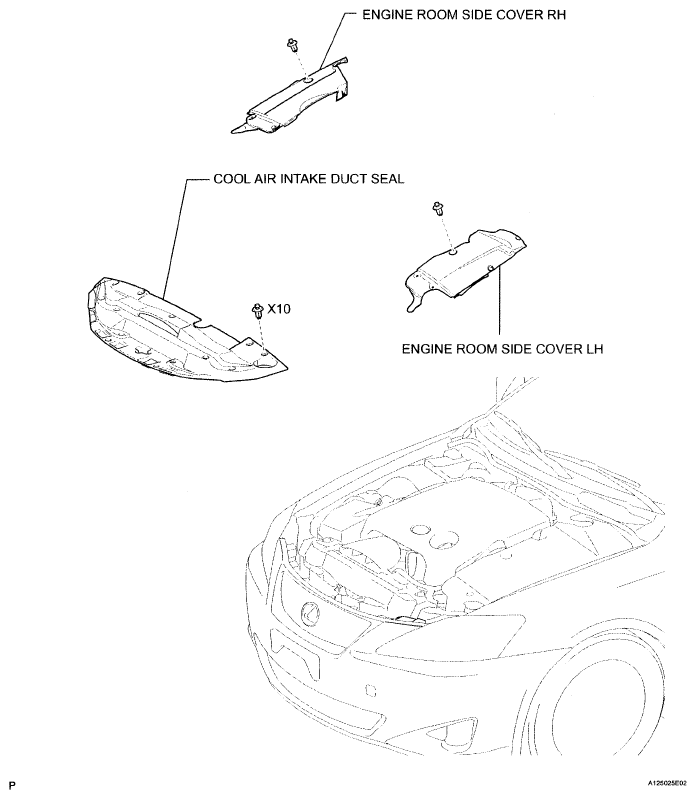

Fig 1: Identifying Air Fuel Ratio Sensor (For Sensor 1) Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

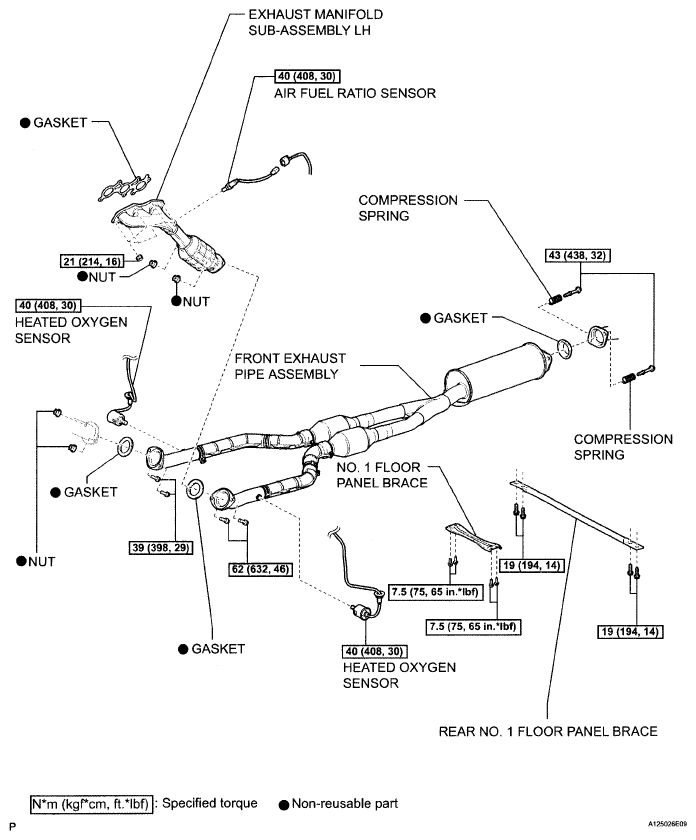

Fig 2: Air Fuel Ratio Sensor (For Sensor 1) Replacement Components (2 Of 3) With Torque Specifications

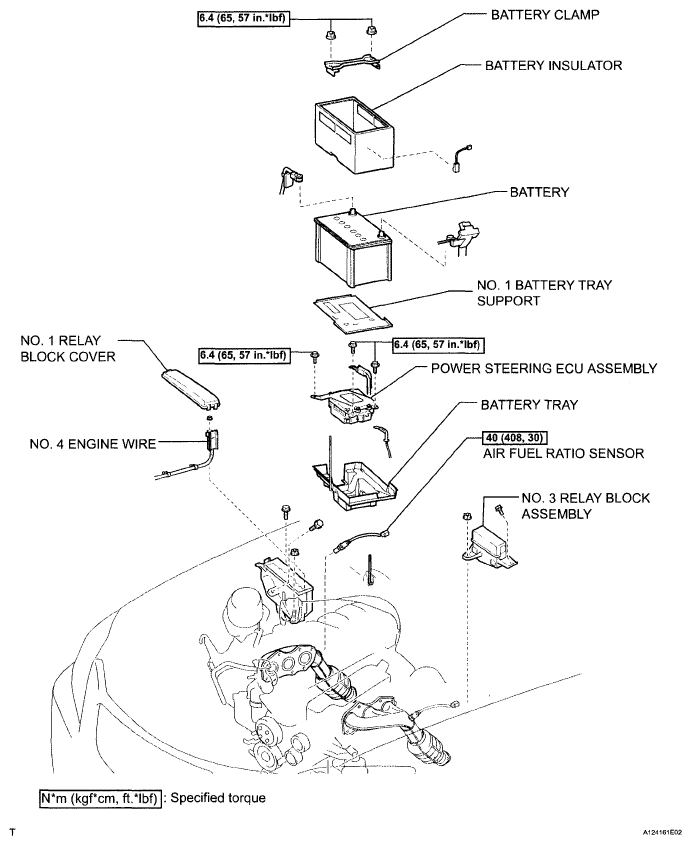

Fig 3: Air Fuel Ratio Sensor (For Sensor 1) Replacement Components (3 Of 3) With Torque Specifications
