Section 57 (Charging (2GR-FSE)): Generator: Components

WARNING: This page is about a different car, the 2008 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

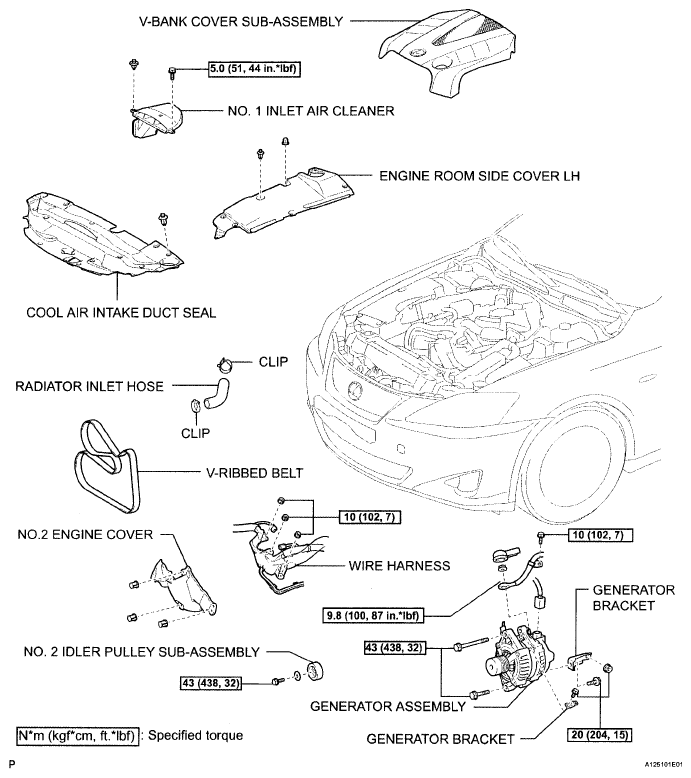

Fig 1: Exploded View Of Generator Components (1 Of 2) With Torque Specifications
G05829484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

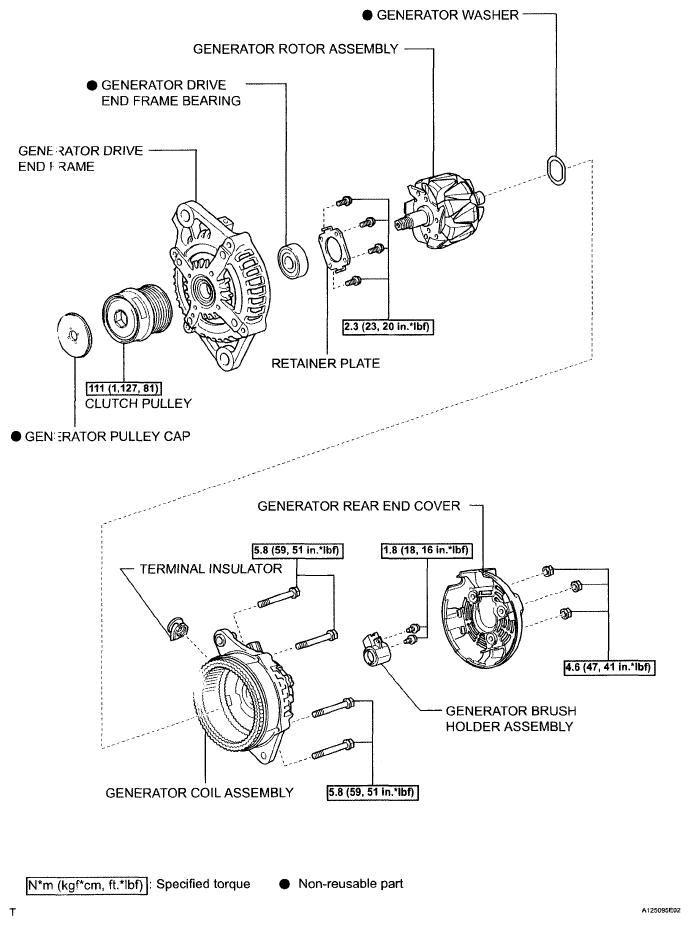

Fig 2: Exploded View Of Generator Components (2 Of 2) With Torque Specifications
G05829485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
