Section 55 (Cooling (2GR-FSE)): Radiator: Components

WARNING: This page is about a different car, the 2008 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

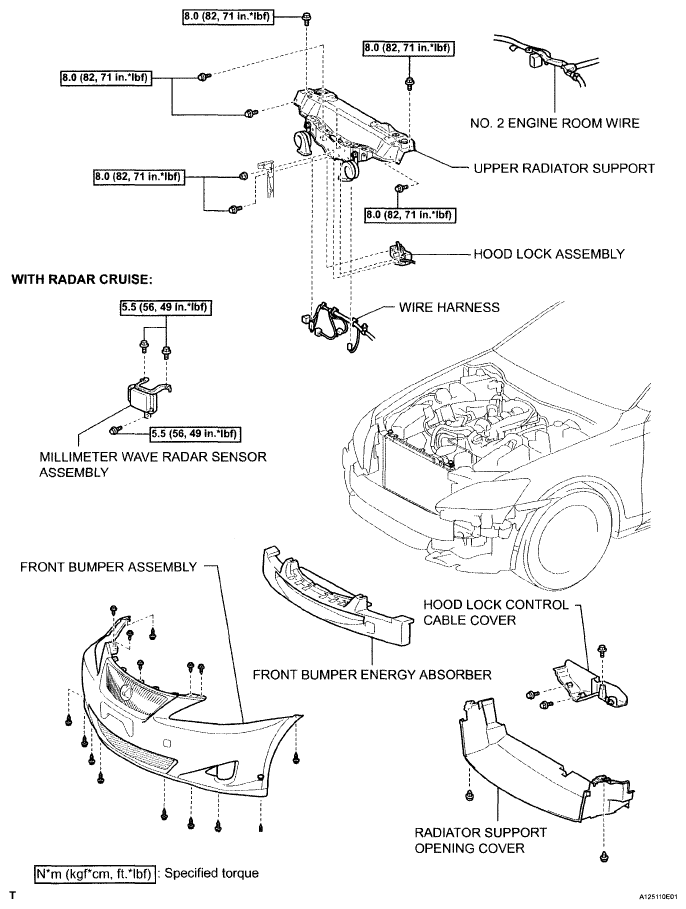

Fig 1: Identifying Radiator Replacement Components (1 Of 4) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

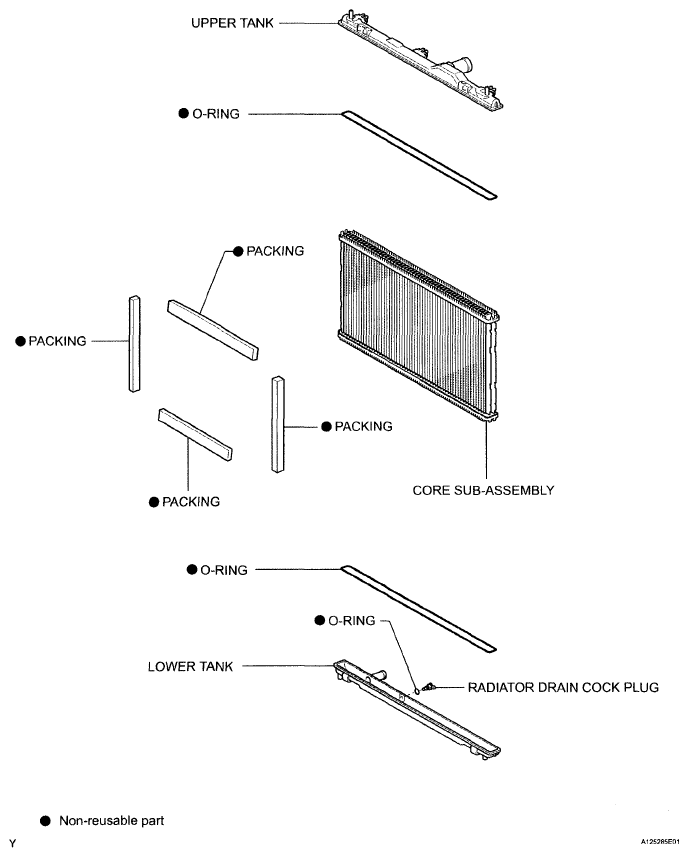

Fig 2: Identifying Radiator Replacement Components (2 Of 4) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

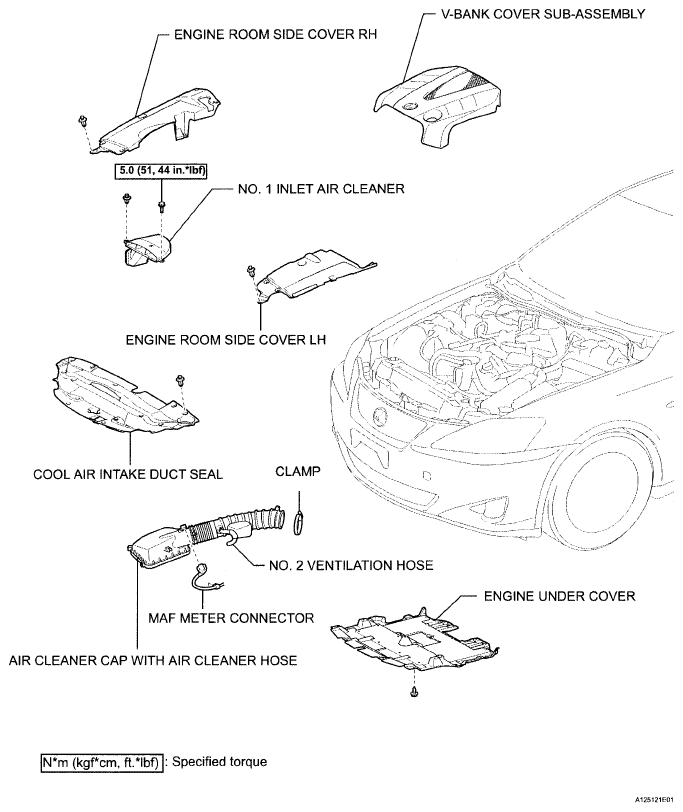

Fig 3: Radiator Replacement Components (3 Of 4) with Torque Specifications

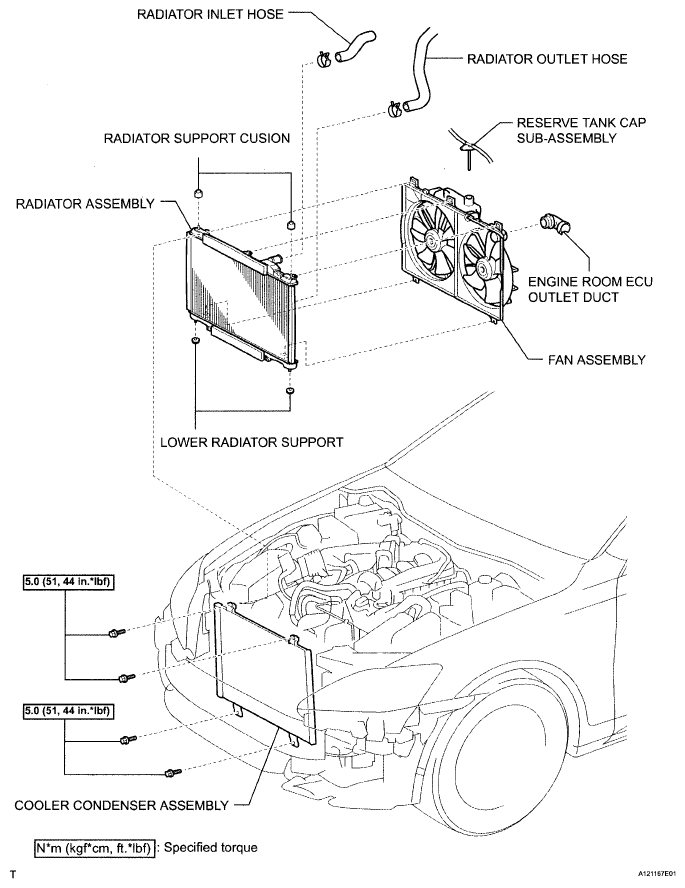

Fig 4: Identifying Radiator Components (4 Of 4)
