Parts Location

WARNING: This page is about a different car, the 2008 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

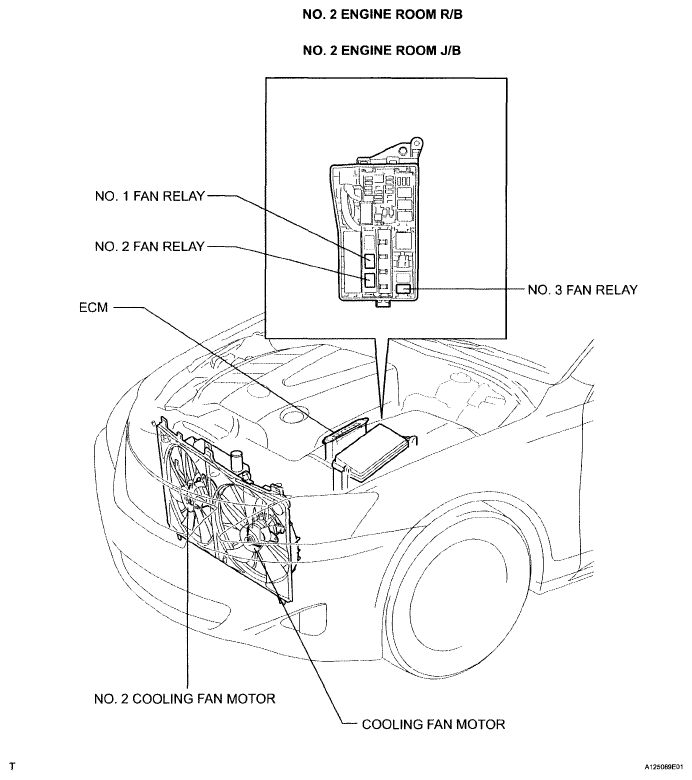

Fig 1: Identifying Cooling System Parts Location
G05828746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
