Oil Pump: Components

WARNING: This page is about a different car, the 2008 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

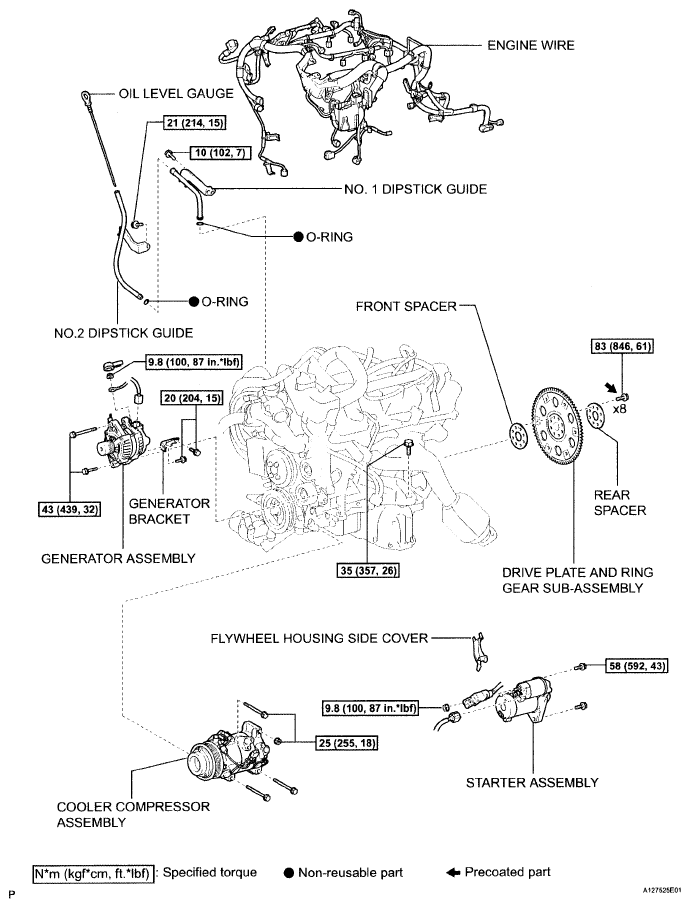

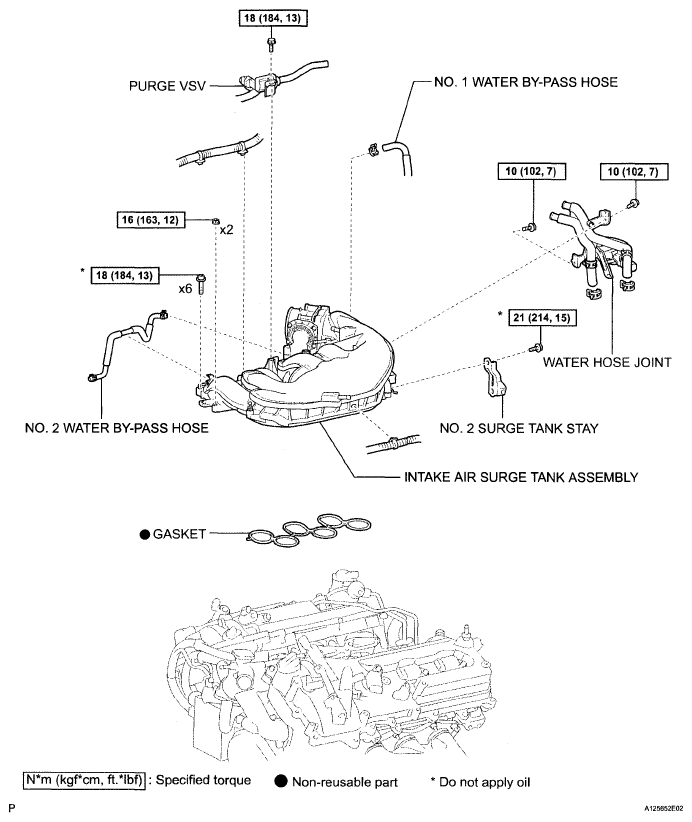

Fig 1: Exploded View Of Oil Pump Assembly Replacement Components (1 Of 12) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

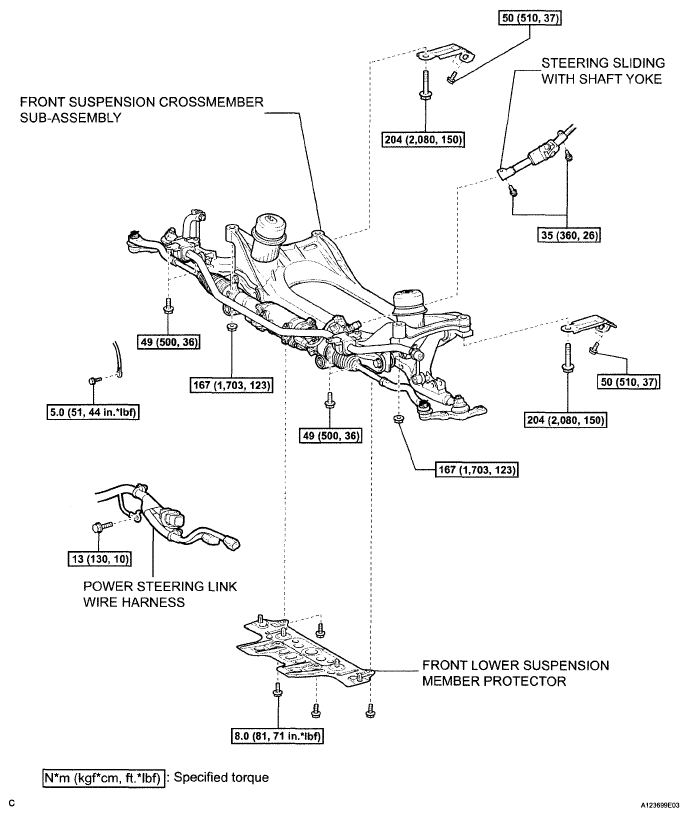

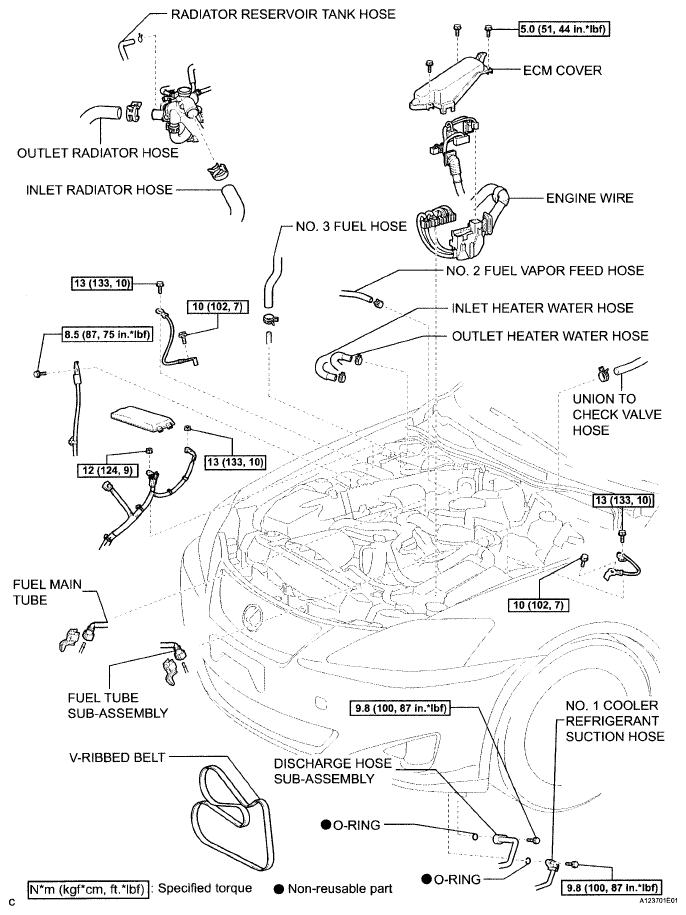

Fig 2: Exploded View Of Oil Pump Assembly Replacement Components (2 Of 12) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

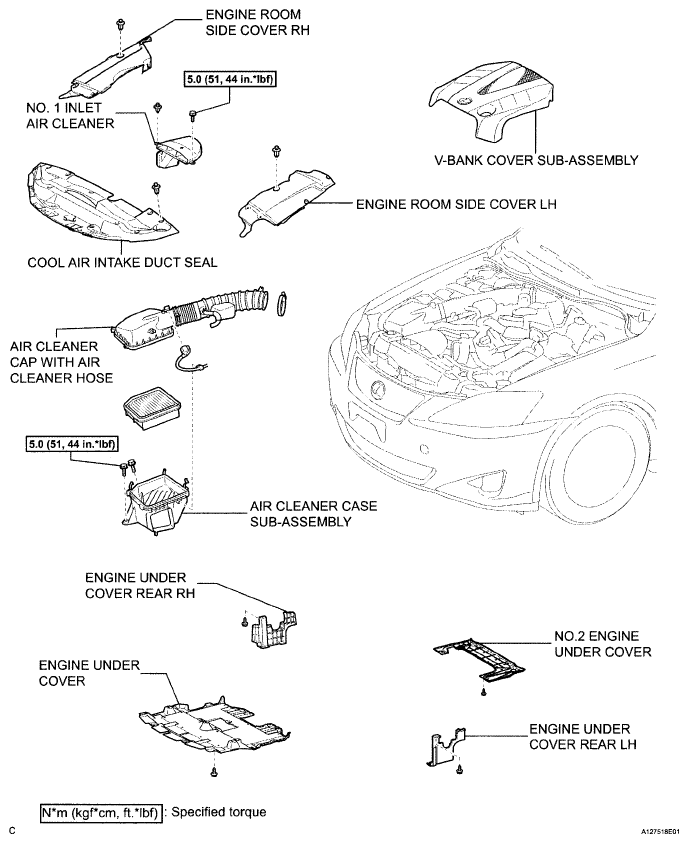

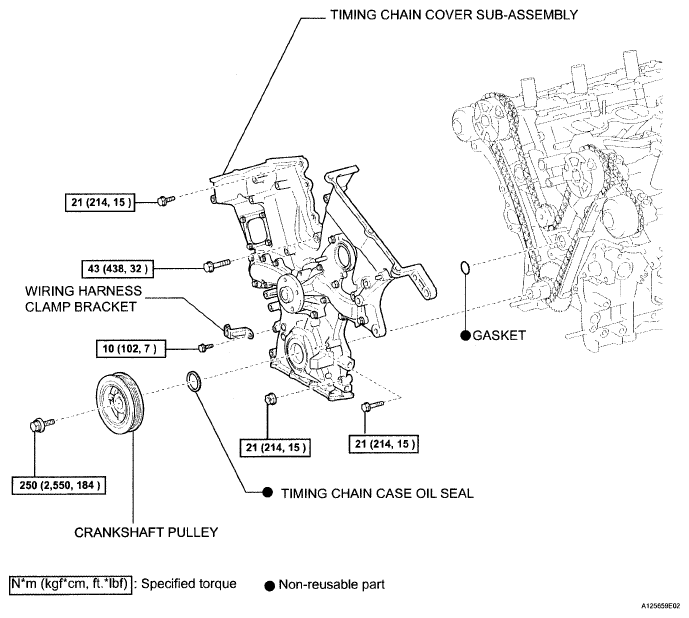

Fig 3: Exploded View Of Oil Pump Assembly Replacement Components (3 Of 12) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

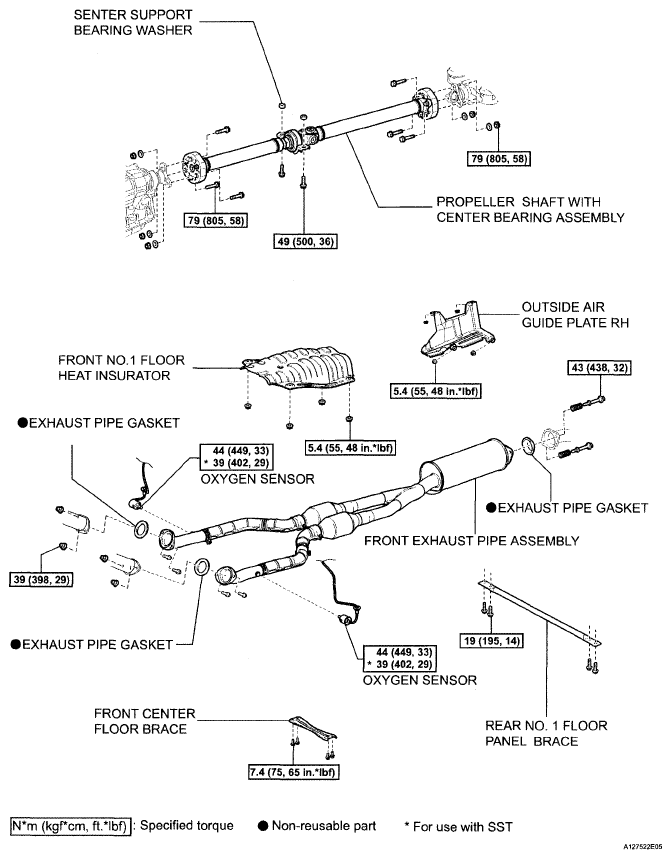

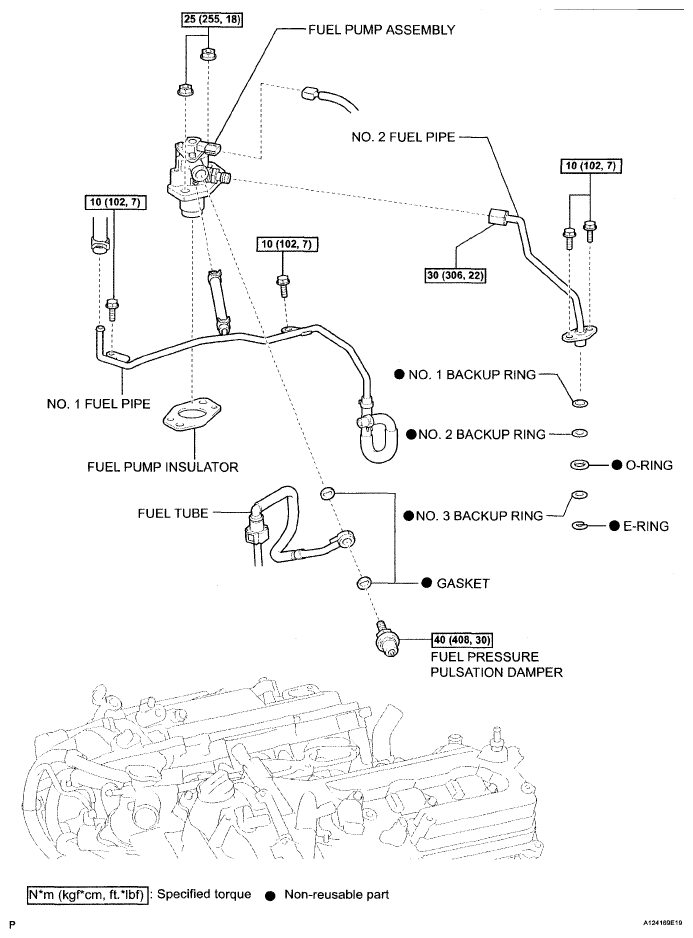

Fig 4: Exploded View Of Oil Pump Assembly Replacement Components (4 Of 12) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

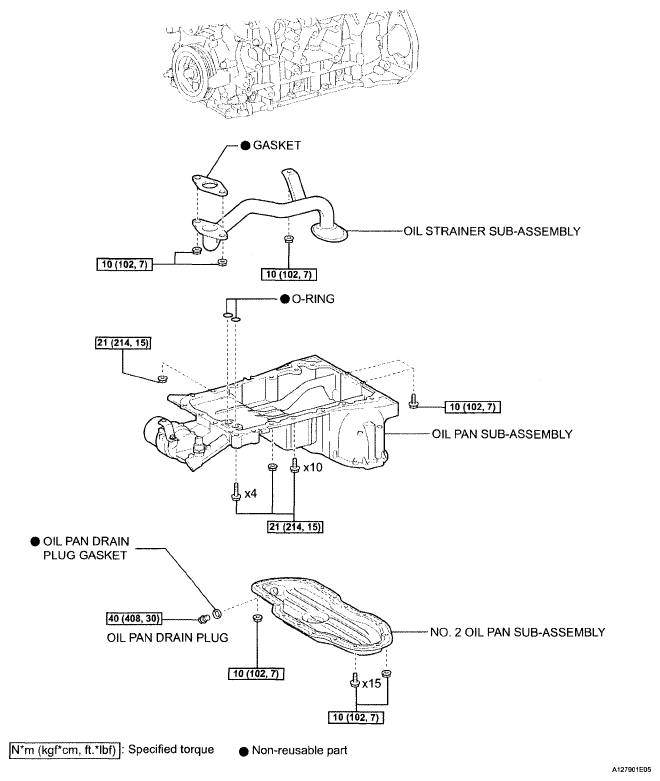

Fig 5: Exploded View Of Oil Pump Assembly Replacement Components (5 Of 12) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

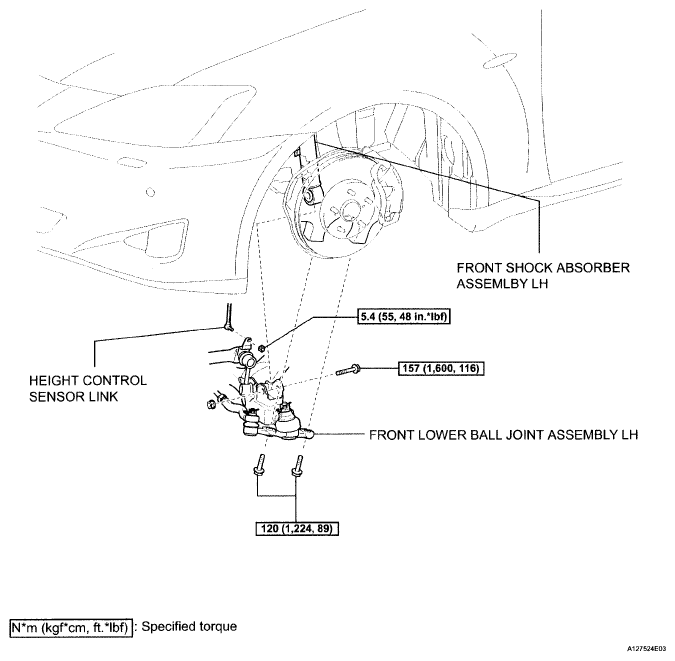

Fig 6: Exploded View Of Oil Pump Assembly Replacement Components (6 Of 12) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

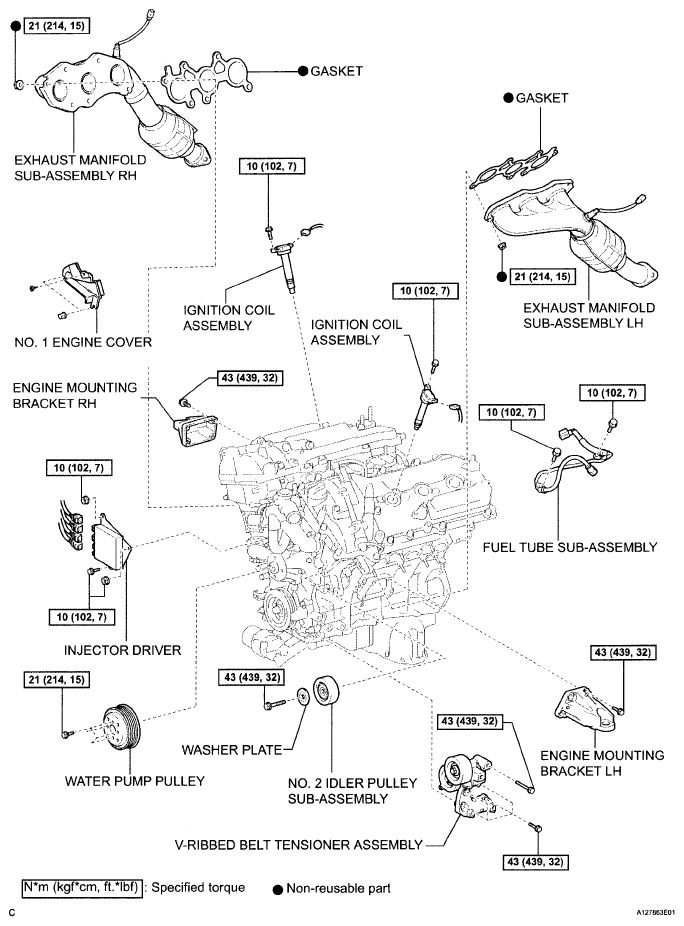

Fig 7: Exploded View Of Oil Pump Assembly Replacement Components (7 Of 12) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

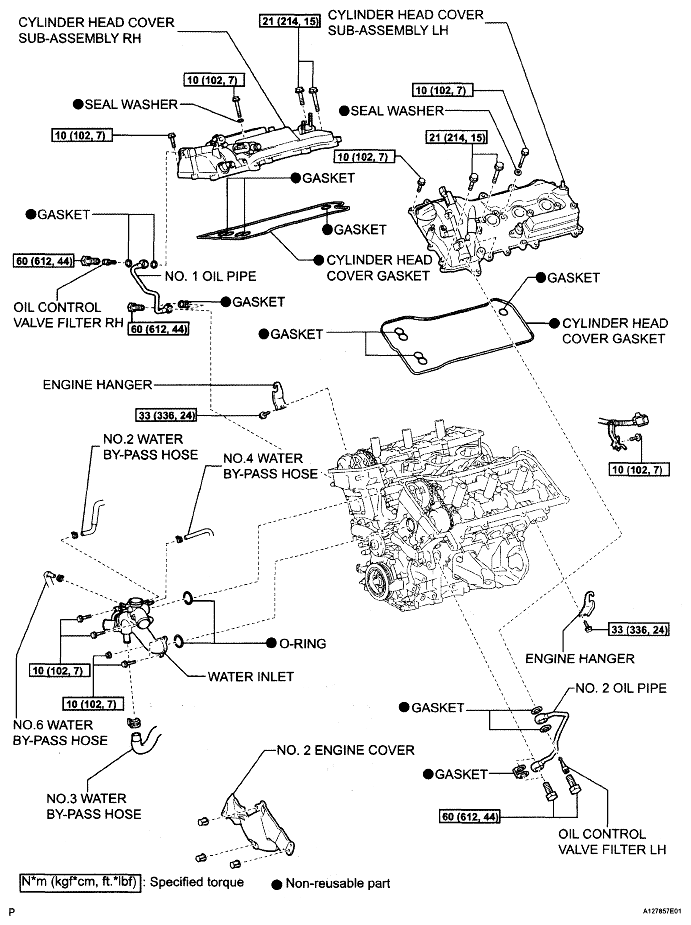

Fig 8: Exploded View Of Oil Pump Assembly Replacement Components (8 Of 12) With Torque Specifications

Fig 9: Exploded View Of Oil Pump Assembly Replacement Components (9 Of 12) With Torque Specifications

Fig 10: Exploded View Of Oil Pump Assembly Replacement Components (10 Of 12) With Torque Specifications

Fig 11: Exploded View Of Oil Pump Assembly Replacement Components (11 Of 12) With Torque Specifications

Fig 12: Exploded View Of Oil Pump Assembly Replacement Components (12 Of 12) With Torque Specifications
