Engine Rear Oil Seal: Components

WARNING: This page is about a different car, the 2008 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

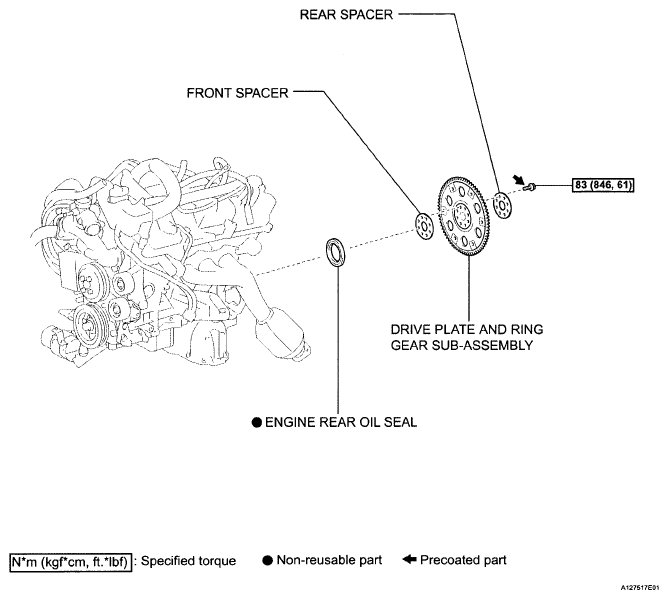

Fig 1: Engine Rear Oil Seal Replacement Components With Torque Specifications
G05823435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
