Engine Assembly: Components

WARNING: This page is about a different car, the 2008 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

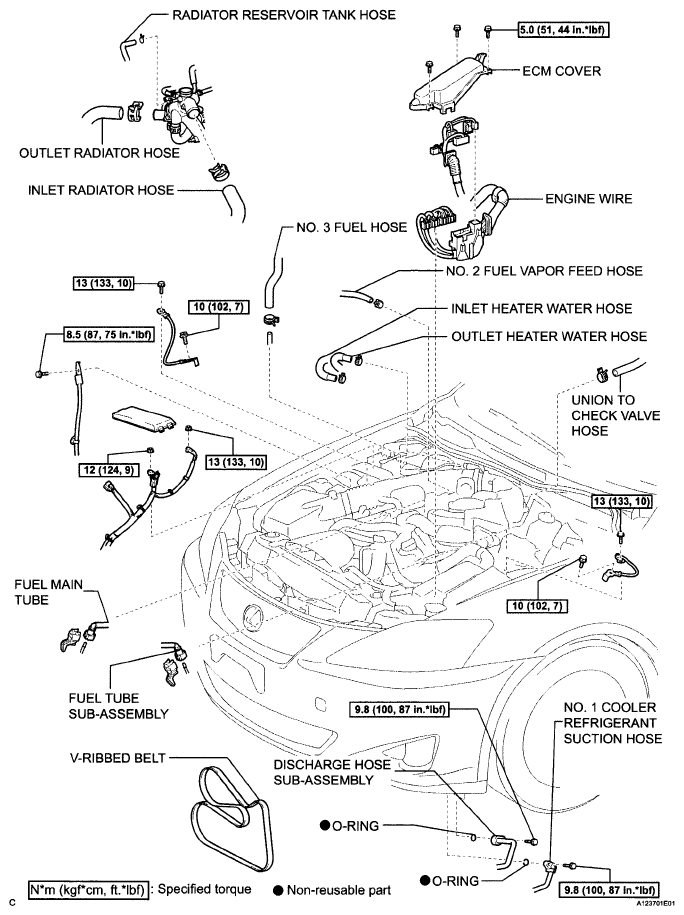

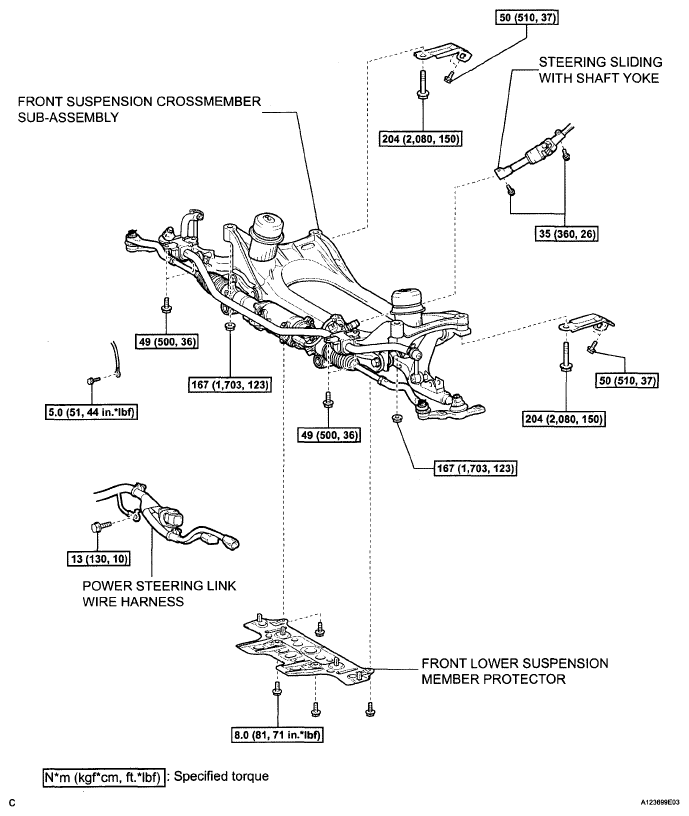

Fig 1: Identifying Engine Replacement Components With Torque Specification (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

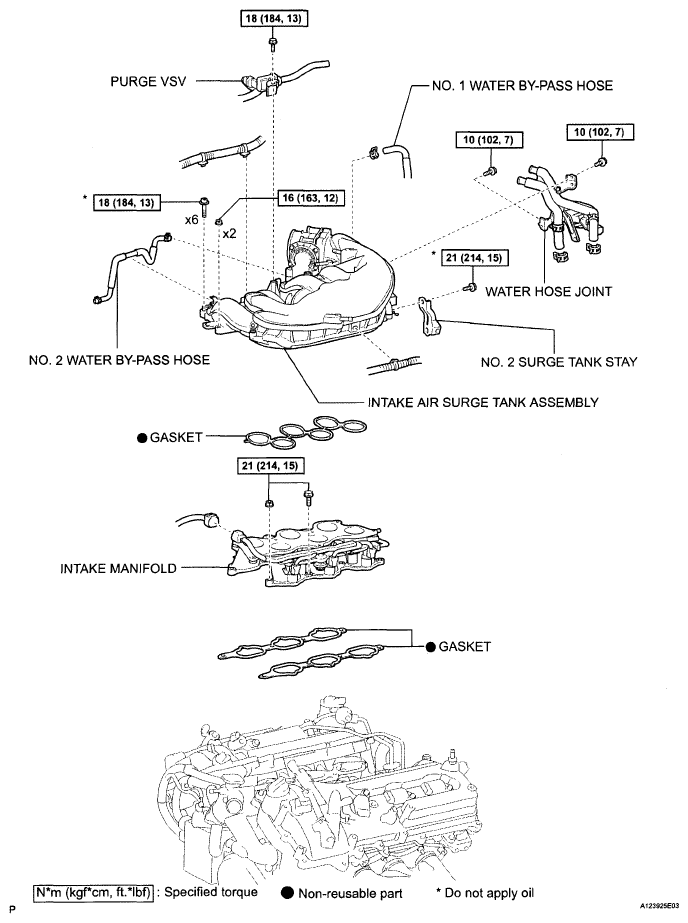

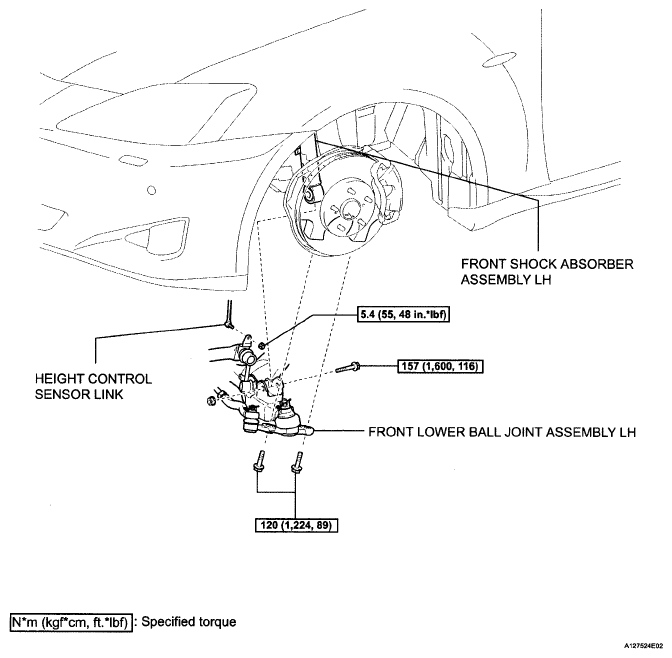

Fig 2: Identifying Engine Replacement Components With Torque Specification (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

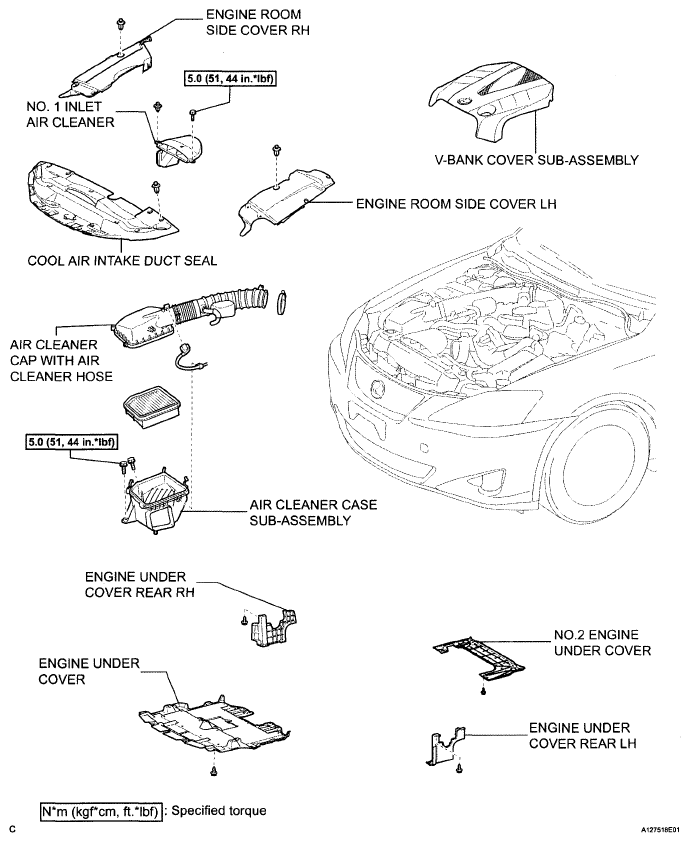

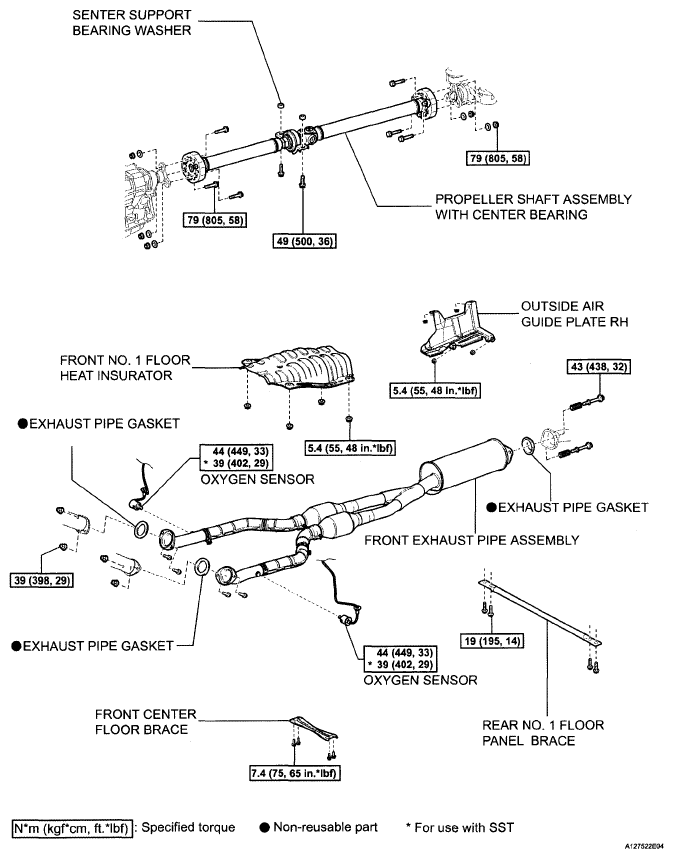

Fig 3: Identifying Engine Replacement Components With Torque Specification (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

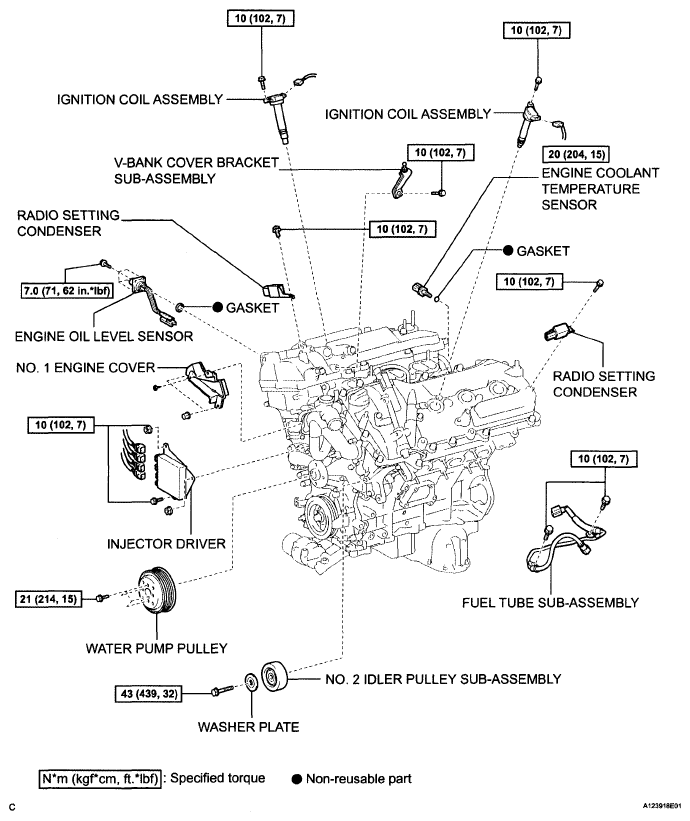

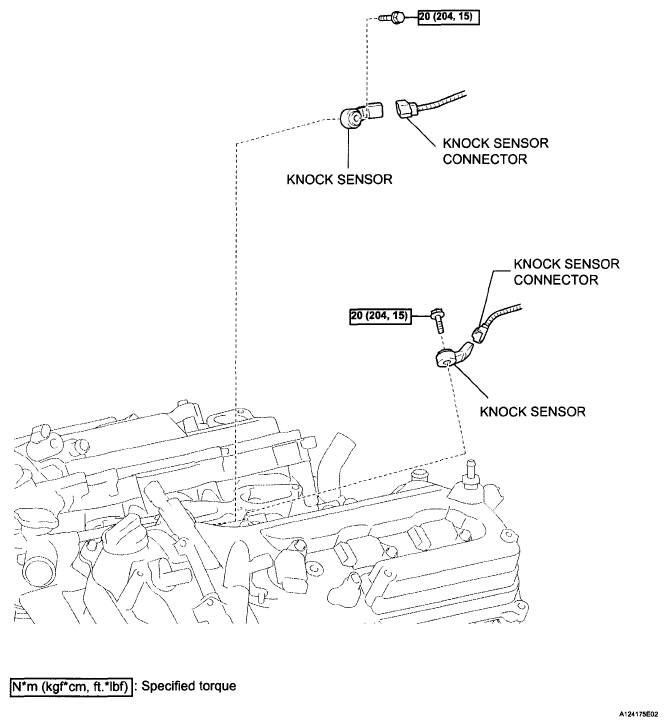

Fig 4: Identifying Engine Replacement Components With Torque Specification (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

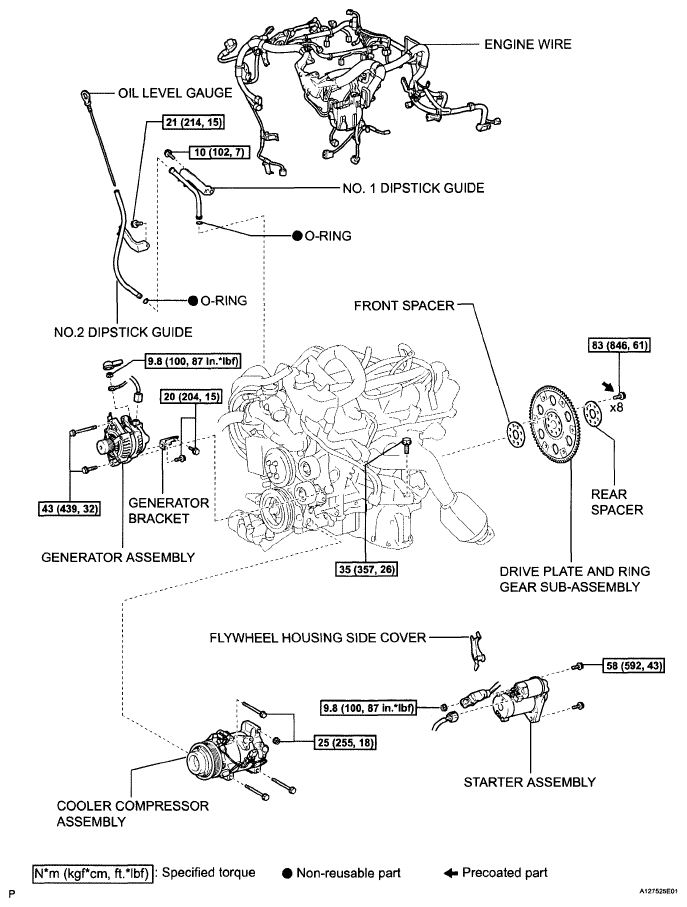

Fig 5: Identifying Engine Replacement Components With Torque Specification (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

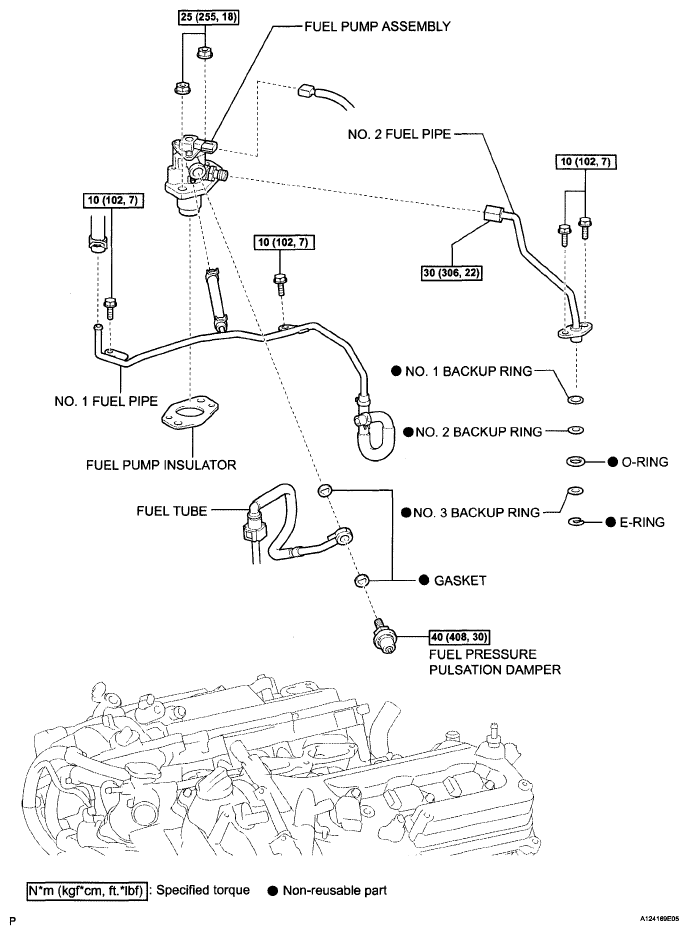

Fig 6: Identifying Engine Replacement Components With Torque Specification (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

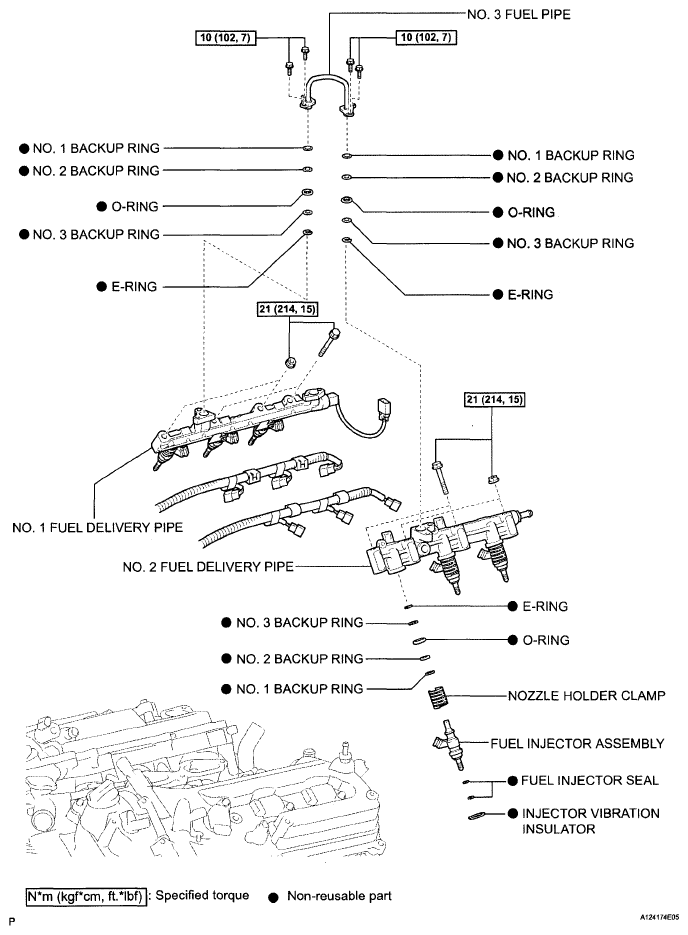

Fig 7: Identifying Engine Replacement Components With Torque Specification (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

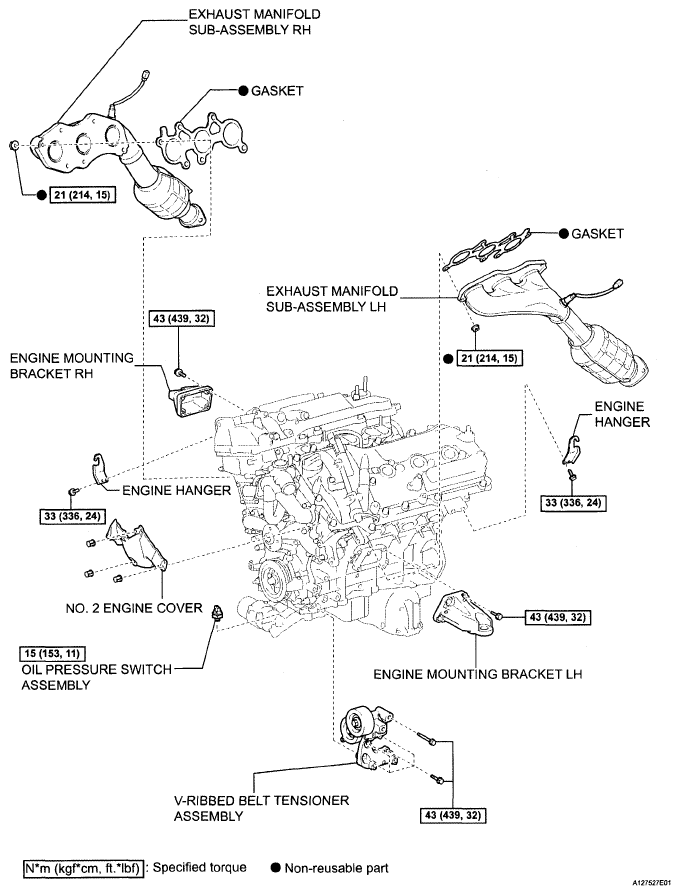

Fig 8: Identifying Engine Replacement Components With Torque Specification (8 Of 12)

Fig 9: Identifying Engine Replacement Components With Torque Specification (9 Of 12)

Fig 10: Identifying Engine Replacement Components With Torque Specification (10 Of 12)

Fig 11: Identifying Engine Replacement Components With Torque Specification (11 Of 12)

Fig 12: Engine Replacement Replacement Components With Torque Specifications (12 Of 12)
