Clutch Drum And Input Shaft Assembly: Components

WARNING: This page is about a different car, the 2008 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

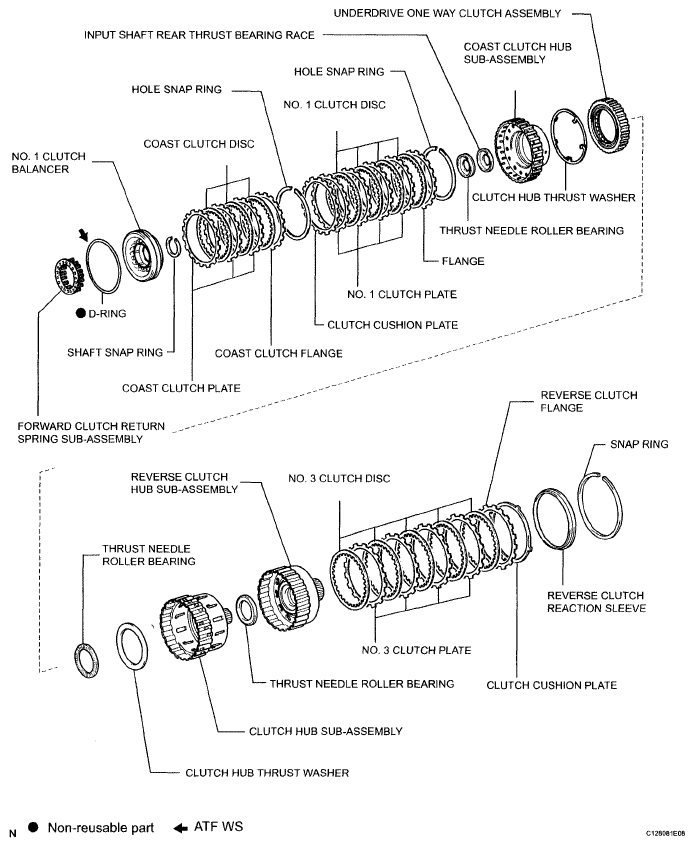

Fig 1: Identifying Clutch Drum And Input Shaft Assembly Components (1 Of 2)
G05824498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

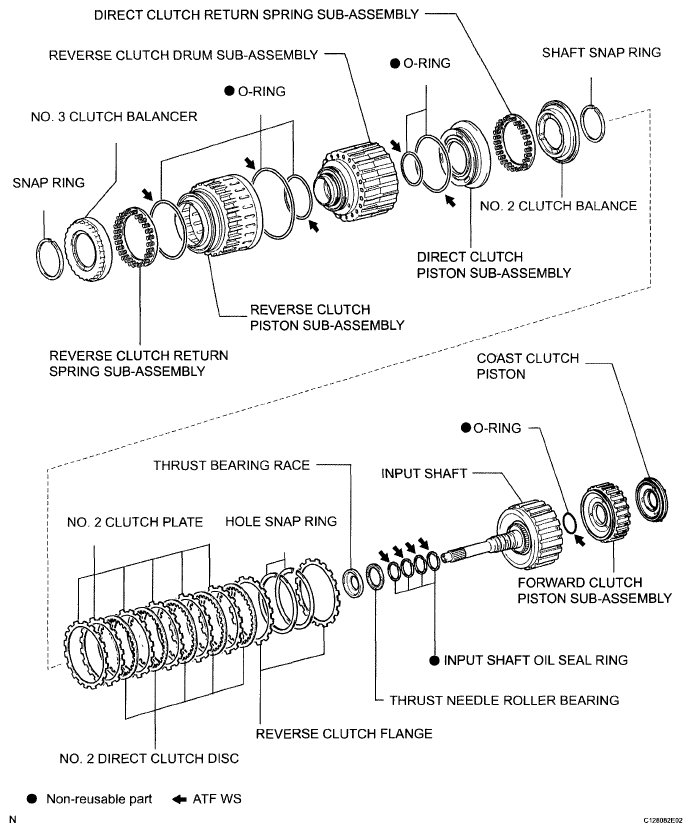

Fig 2: Identifying Clutch Drum And Input Shaft Assembly Components (2 Of 2)
G05824499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
